1756-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2000
ATTACHING/REMOVING THE SIDE DISCHARGE CHUTE
(Fig. 11a & b)
WARNING: Do not at any time make any adjustment to the
lawn mower without rst stopping the motor and removing the
safety key.
1. Lift the rear discharge door.
2. Align the lower edge of the discharge with the V-slot of the
doorsill and insert it in the slot.
3. Push the top of the discharge and insert it into the mower.
Check to see that it is securely seated in the deck.
4. To remove the side discharge chute, lift the rear discharge
door, grasp the side discharge chute and pull it out.
5. Release the discharge door and make sure that it rests
rmly against the discharge chute.
SPRING-LOADED CUTTING HEIGHT ADJUSTMENT (Fig. 12)
WARNING: Do not at any time make any adjustment to the
lawn mower without rst stopping the motor and removing the
safety key.
WARNING: Keep your feet away from the deck when
adjusting its height.
The mower can be set to 5 cutting heights between
1.2” (30mm) and 3.5” (90mm). Choose the proper cutting height
according to the types and conditions of the grass.
To raise the blade height, grasp the height adjustment lever,
move it outwards, then move it toward the back of the
mower and engage the lever in the desired cutting height
position on the mower deck.
To lower the blade height, grasp the height adjustment
lever outwards and move it toward the front of the mower
and engage the lever in the desired cutting height position
on the mower deck.

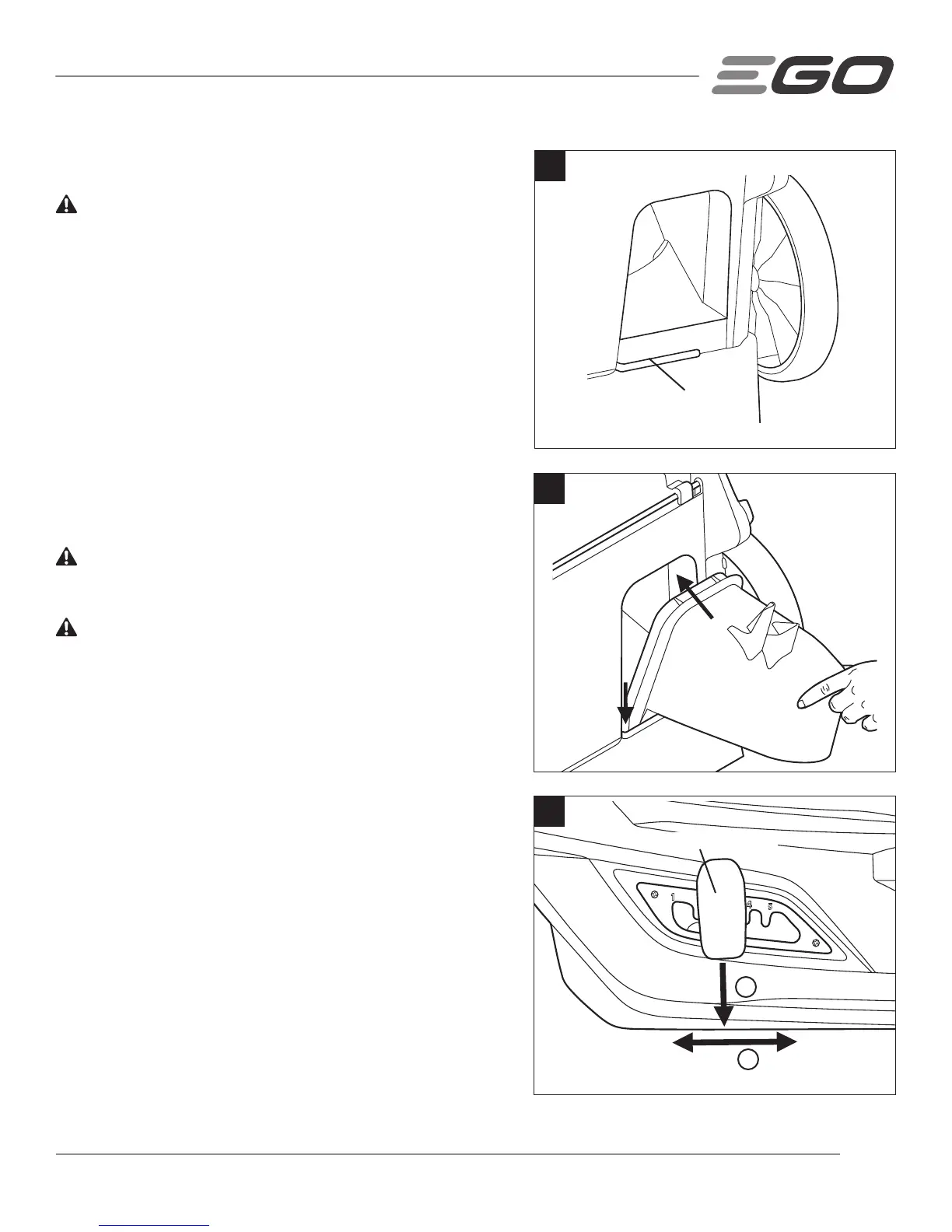

11b
Step 1
Step 2
11a
V-Slot
12
Height Adjustment Lever
2
1
