56-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2000
32
Parts list 56V LITHIUM-ION CORDLESS LAWN MOWER MODEL NUMBER LM2000
The Model Number will be found on the Nameplate attached to the rear discharge door of the lawn mower.
Always mention the Model Number when ordering parts for this tool.

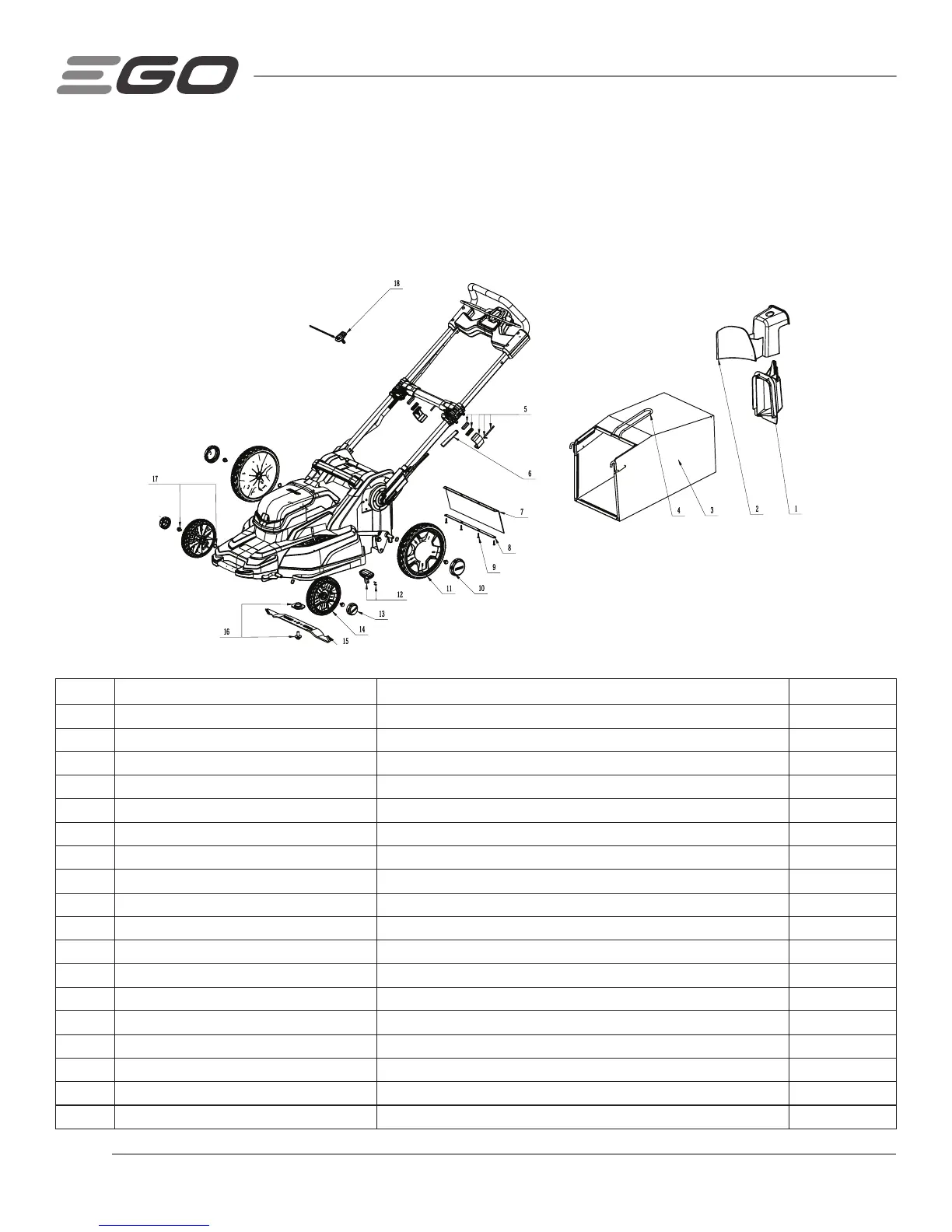

EXPLODED VIEW
PARTS LIST
No. Part Number Part Name Quantity
1 3126785000 Side Discharge Chute 1
2 3126762000 Mulching Insert 1
3 3800095000 Grass bag 1
4 3705442000 Bag Frame 1
5 2823714000 Handle-Locking Clamp Set 1
6 3126779000 Quick-Adjust Lever Cover 1
7 3127083000 Trailing Shield 1
8 3705441000 Steel Bar 1
9 5610042000 Screw Set (Trailing Shield) 4
10 3126765000 Rear Hubcap 2
11 2823663000 Rear Wheel Assembly 2
12 2823707000 Height-Adjust Handle Set 1
13 3126769000 Front Hubcap 2
14 2823662000 Front Wheel Assembly 2
15 3705369000 Blade 1
16 2823708000 Bolt and Flanges Set 1
17 2823706000 Bolt and Washer Set 4
18 2823802000 Safety key with Cord 1
