NOTICE: To re-install or replace the blade, be sure to replace the
parts in the exact order in which they were removed (Fig. 22).
Align the inner ange with the shaft and assemble it in
place.
While wearing protective gloves, position the blade on the
inner ange with the recess (as shown in Fig. 23) toward
the mower.
While still wearing protective gloves, move the blade by
hand to align the round hole in the blade with the round
pin on the inner ange, and the semi-round hole with the
semi-round pin (Fig. 24).
Turn the bolt clockwise into the shaft by hand to
pre-tighten.
Place a metal rod (e.g., a manual screwdriver) into the
xing hole to act as a stabilizer, then use a 9/16 inch
(14mm) torque wrench (not included) to tighten the bolt
clockwise. The recommended torque for the blade bolt is
36-43 ft-lb (49-59Nm) (Fig. 21).
24

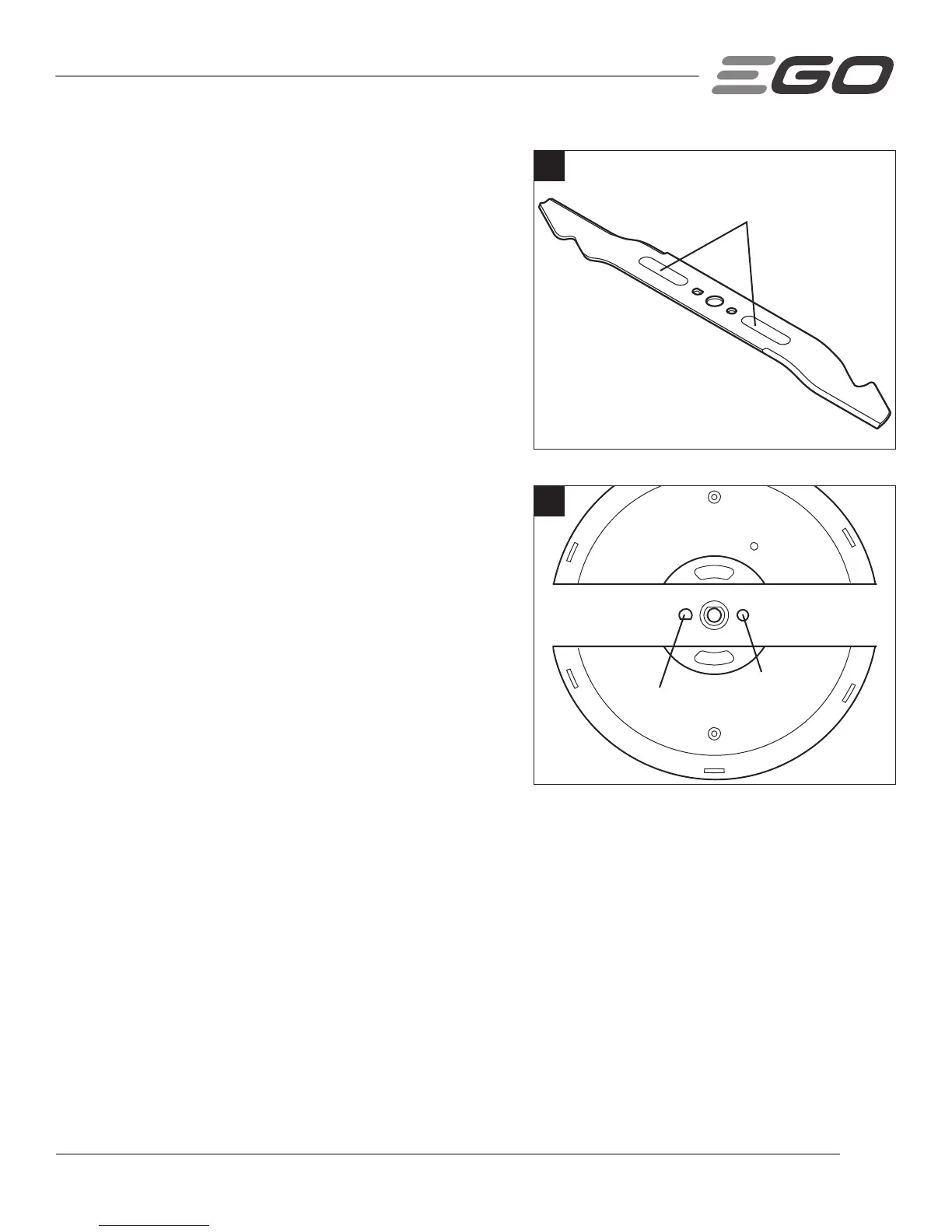

Semi-round Pin and Hole
Round Pin and Hole
23
Recess
