19
LM2020E-SP Lawn Mower
3. Main PCBA Replacement
4. Remove the motor ASSY as shown in previous sections ” Power Unit Removal” and
“Motor ASSY Replacement”.

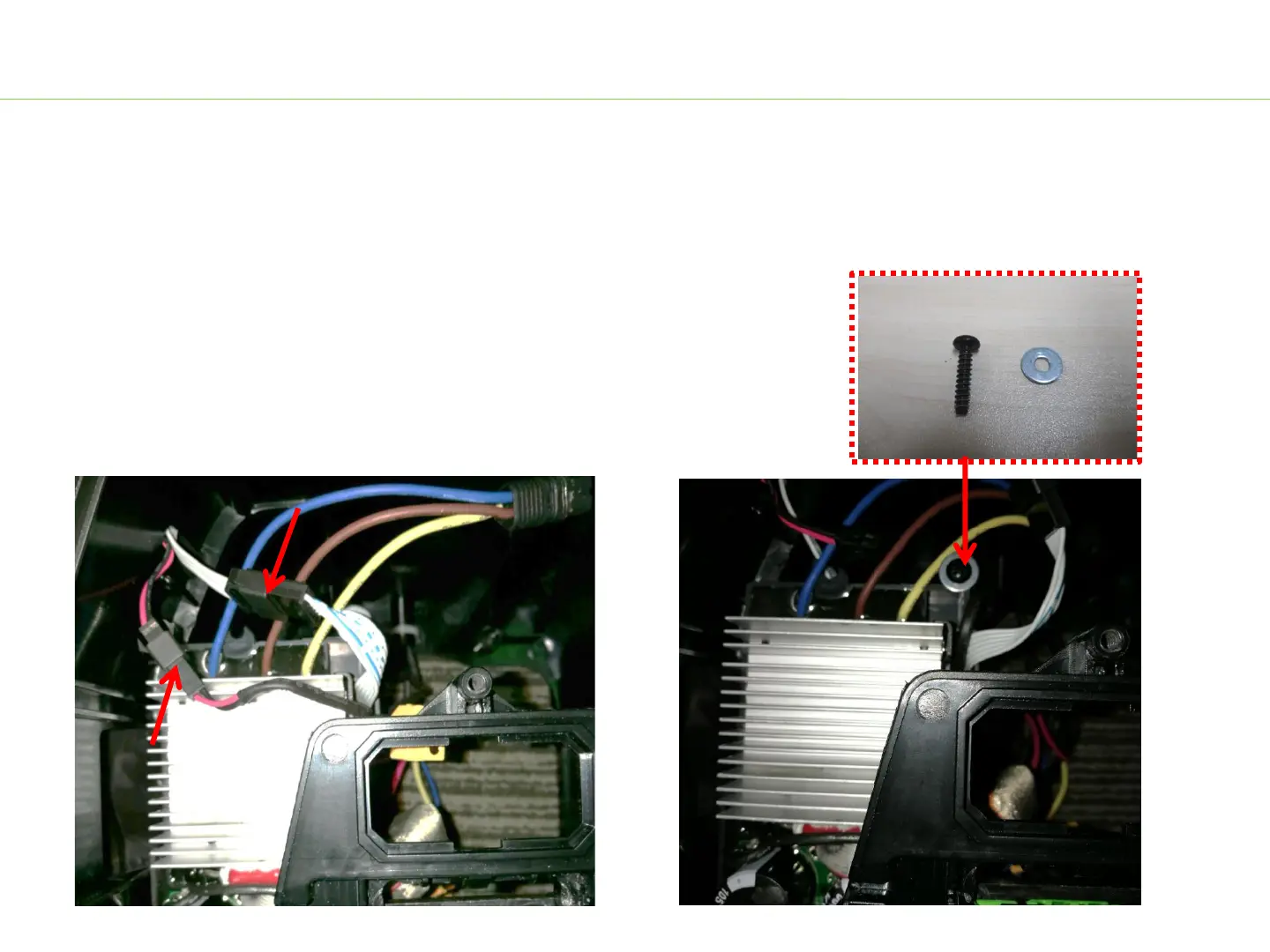

5. Release the two black plugs(one is linked to LED lights, and the other is linked to the
power indicator)(Fig. 1).
6. Remove the screw and plain washer (Fig. 2).
1
2
