56-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2100SP/LM2100SP-FC/LM2100/LM2100-FC42

REPLACING THE WHEELS

(Fig. 33a, 33b & 33c)

WARNING:

Always remove

the battery pack when servicing or

transporting the mower.

1. Turn the mower on its side with the

upper surface against a wall.

2. Use a at blade screwdriver to pry

the dust cover away from the wheel.

3. Use an adjustable or 1/2 inch

(13mm) wrench to turn the bolt

counterclockwise to loosen it.

4. Remove the bolt, the worn wheel

and the wave washer from the

wheel axle.

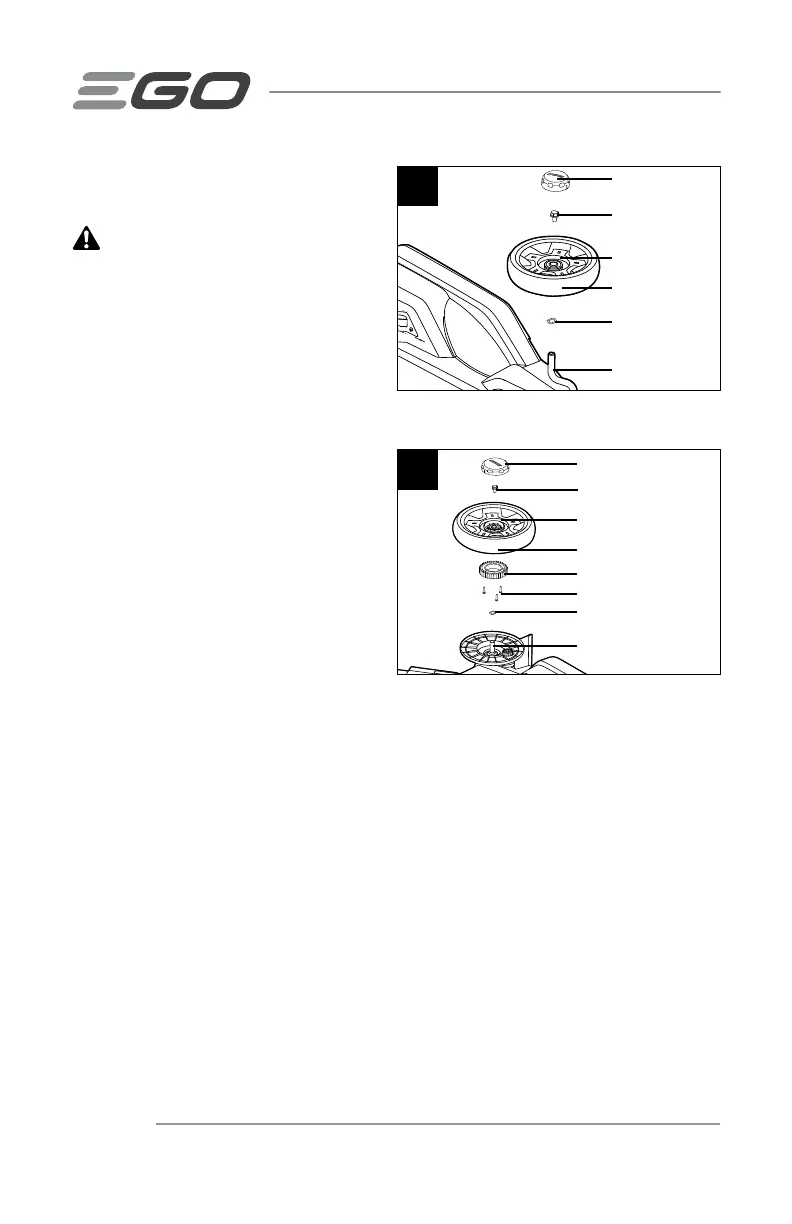

33a

Dust Cover

Bolt

Round Recess

facing outside

Front Wheel

Wave Washer

Wheel Axle

Front wheel for both LM2100SP/

LM2100SP-FC/LM2100/LM2100-FC

33b

Dust Cover

Bolt

Round Recess

facing outside

Front Wheel

Wave Washer

Wheel Axle

Gear

Screw

Rear wheel for LM2100SP/LM2100SP-FC
