56-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2100SP/LM2100SP-FC/LM2100/LM2100-FC24
ATTACHING/REMOVING THE SIDE
DISCHARGE CHUTE

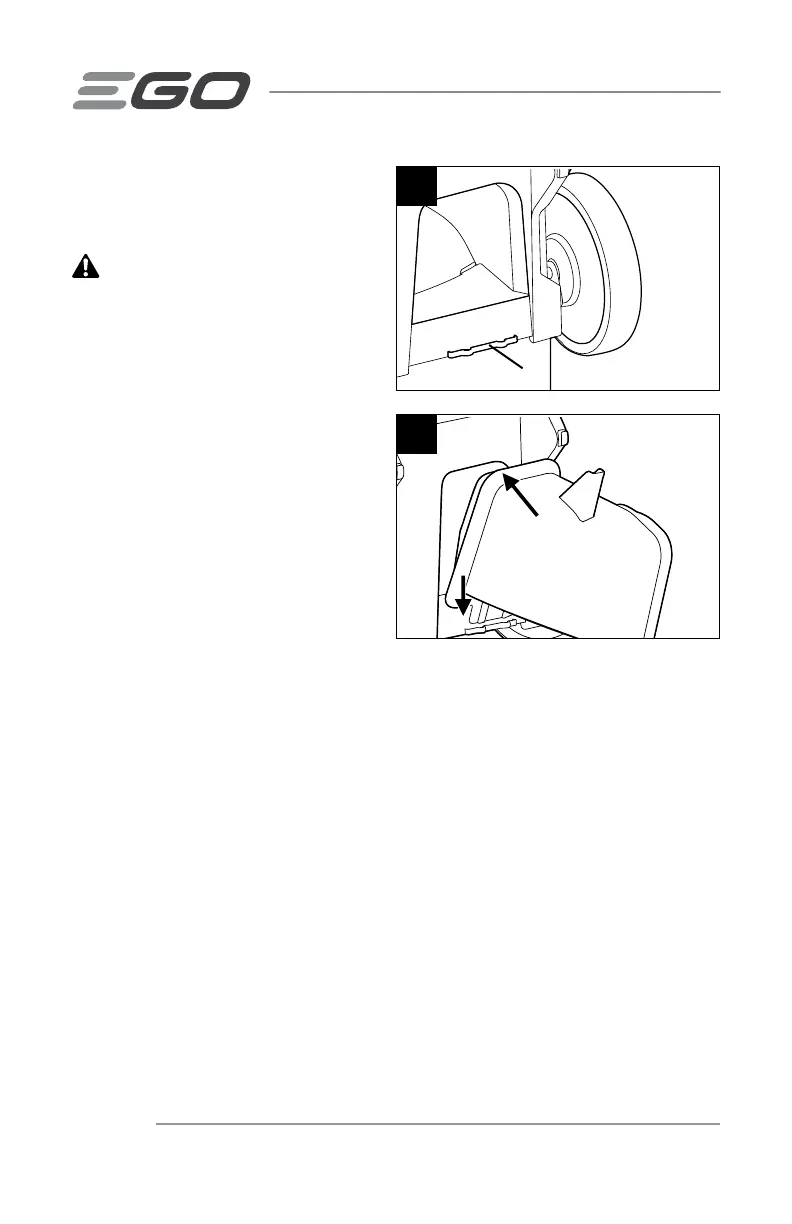

(Fig. 11a & b)
WARNING:
Do not at any time
make any adjustment to the lawn mower
without rst stopping the motor, removing
the battery pack and waiting for the blade
to stop rotating.
1. Remove the battery.
2. Lift the rear-discharge door.
3. Align the lower edge of the
discharge with the groove of the
doorsill and insert it into the slot.
4. Push the top of the discharge and
insert it into the mower. Check to
see that it is securely seated in the
deck.
5. To remove the side discharge chute,
lift the rear-discharge door, grasp the side discharge chute and pull it out.
6. Release the discharge door and make sure that it rests rmly against the
discharge chute.
11a
Groove
11b
Step 1
Step 2
