56-VOLT LITHIUM-ION CORDLESS 22” LAWN MOWER — LM2200SP/LM2200SP-FC 41
Replacing the Blades Separately
To remove the blades
1. Stop the motor; remove the battery
pack from the mower.
2. Turn the mower on its side (Fig. 17a).
3. Wear protective gloves. Insert the
metal rod with a diameter of
5/16” (8 mm) in the stabilizer hole
(stabilizer 1) to block the blades.
Use a the 9/16" (14 mm) wrench to
loosen and remove the two nuts
(Fig. 17b). SAVE THE TWO NUTS
FOR LATER BLADES REASSEMBLY.
4. Use the wrench to loosen and remove
the shaft bolt and washer (Fig. 17c).
NOTICE: If the shaft bolt rotates with
the motor shaft during loosening, place
another metal rod with diameter less than
1/4" (6.35 mm) into the smaller hole in
the fan to act as stabilizer 2.
5. Remove the Mulching Lower Blade
and Upper Blade from the motor
shaft (Fig. 17d). Remove the two
bolts from the upper blade. SAVE
THE TWO BOLTS FOR LATER
BLADES REASSEMBLY.
6. Leave the fan on the motor shaft. Be
sure that the fan blade is facing towards the deck (Fig. 17e).

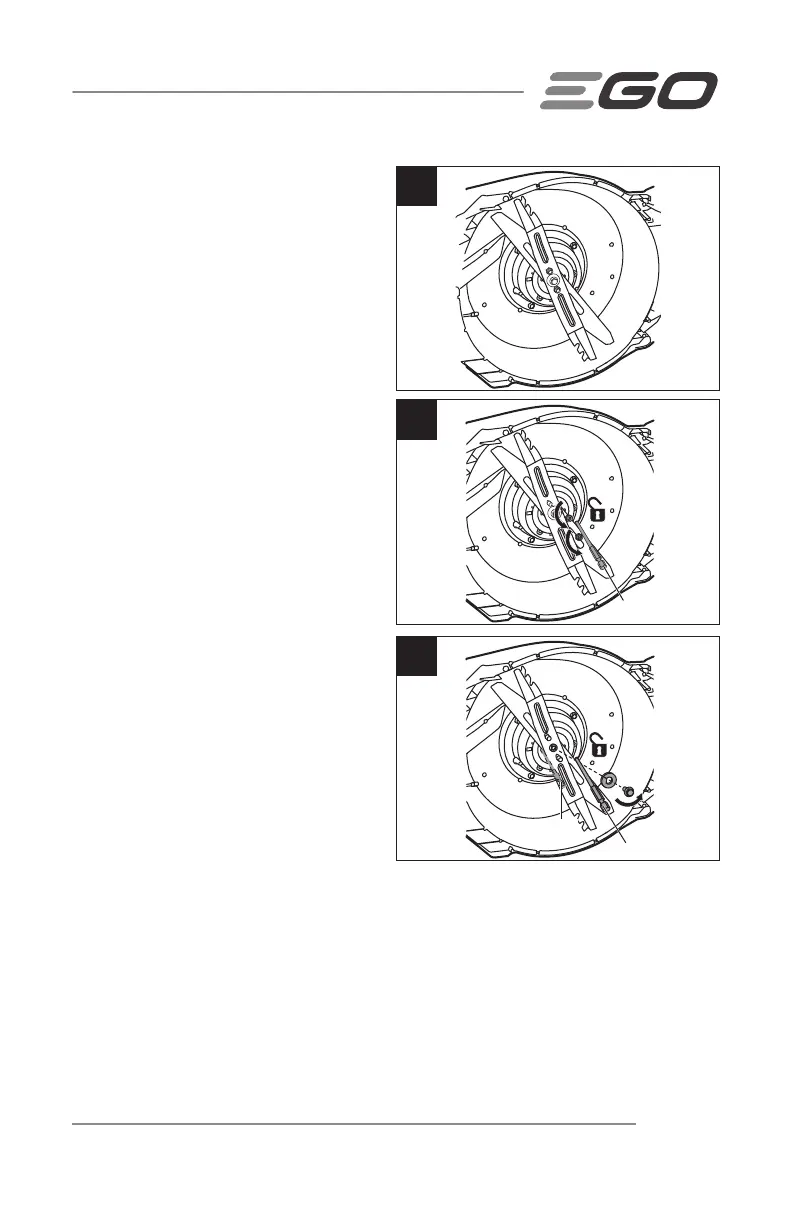

17a
17c
Stabilizer 1
Stabilizer 2
17b
Stabilizer 1
To Next Page
