Place the folded mower upright on
the ground (Fig. 28c & 28d).
◾
Lubricate the deck-height adjustment
joint.
◾
For LM2120SP/LM2120SP-FC/
LM2110SP/LM2110SP-FC, lubricate
the bearings on the drive shaft near
the rear wheels and the bearings in
the front wheels (Fig. 28c).
◾
For LM2110/LM2110-FC, lubricate
the bearings in both the rear and
front wheels (Fig. 28d).

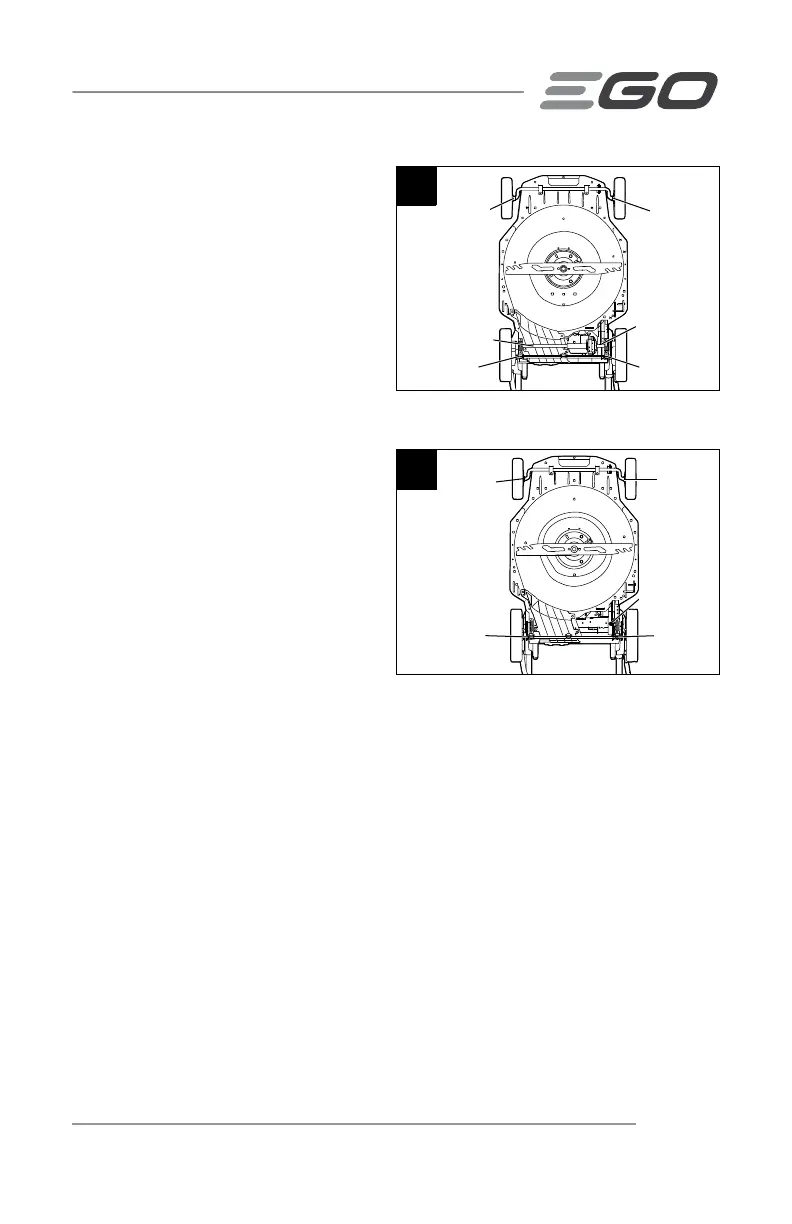

28c
Bearing
Bearing
Drive Shaft
Deck-
Height
Adjustment
Joint
Bearing Bearing
28d
Bearing
Bearing
Deck-
Height
Adjustment
Joint
Bearing Bearing
For LM2120SP/LM2120SP-FC/
LM2110SP/LM2110SP-FC
For LM2110/LM2110-FC
