STRING TRIMMER ATTACHMENT—STA1500 23

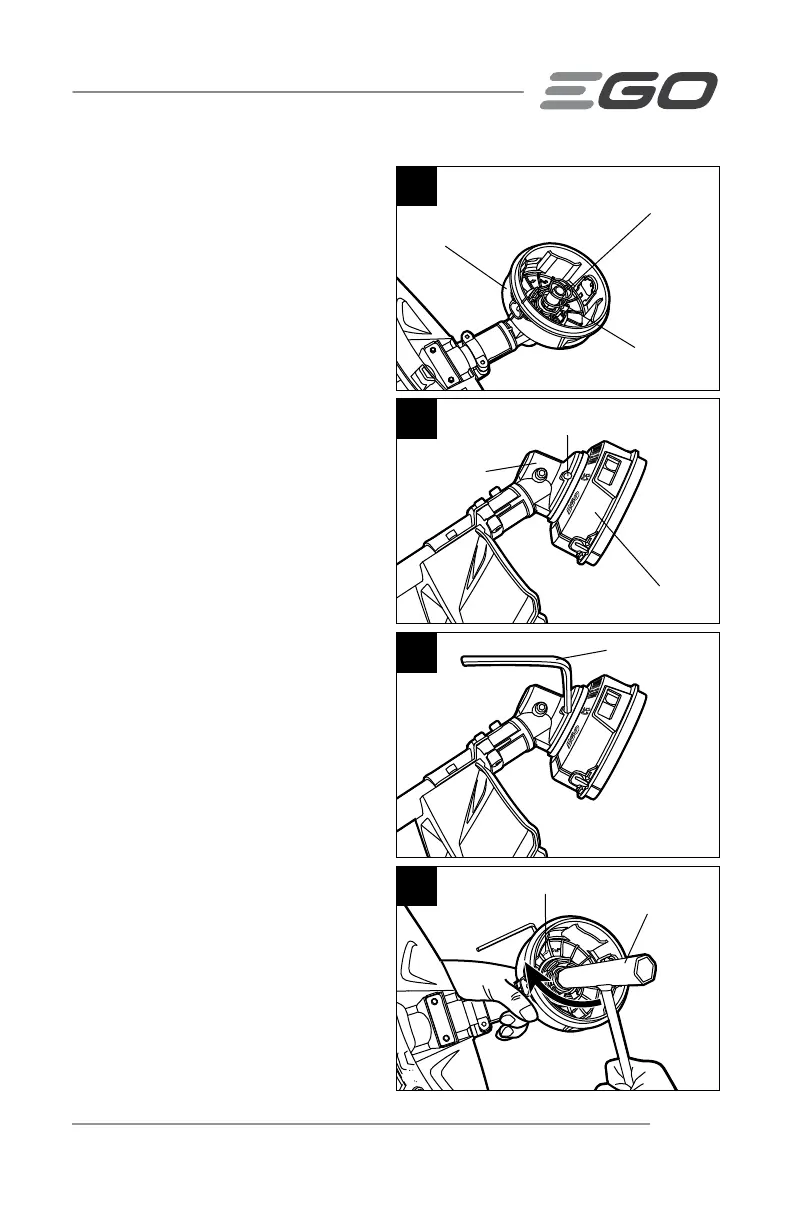

Remove the trimmer head

1. Remove the battery.

2. Press the 2 release tabs on the

spool retainer to remove it

(see Fig. 11& 12).

3. Pull the spring out of the spool base

(Fig. 16).

4. Rotate the spool base to align the

slot in the ﬂange with the hole in the

gear case (Fig. 17).

5. Insert the hex wrench provided

into the aligned holes to act as a

stabilizer (Fig. 18). Use the multi-

function wrench provided to loosen

the nut in the direction of the arrow

marked on the spool base inside

housing and remove it (Fig. 19).

Spring

Nut

Spool Base

Gear Case

Aligned Shaft-locking Holes

Stabilizer

Multi-function

Wrench Provided

Arrow
