ehb electronics ehb5040 Series - Housing Dimensions

SSR Operating Instructions
8/10
Vers. 2.4 © ehb errors excepted

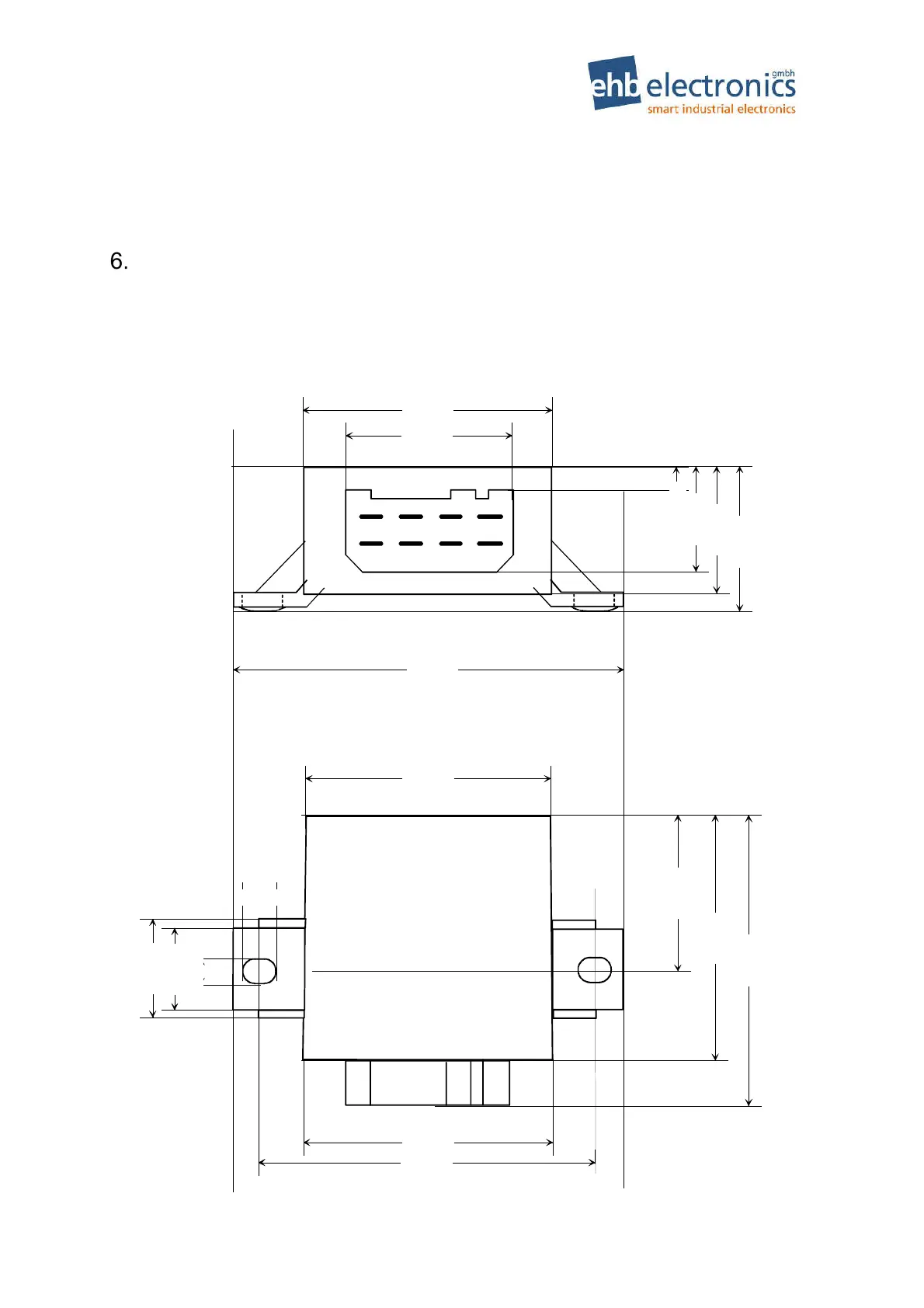

Housing Dimensions
Relay housing with moulded lugs; dimensions: 60 x 30 x 60 mm; material: PA6.6
31
W
15
50f50e
D+30
95,5 mm
40,7 mm
59,9 mm
61,0 mm
35,4 mm
31,0 mm
60,0 mm
38,2 mm
6,4 mm
82,3 mm
8,3 mm
20,0 mm
24,0 mm
61,0 mm
5,7 mm
25,7 mm
71,0 mm
