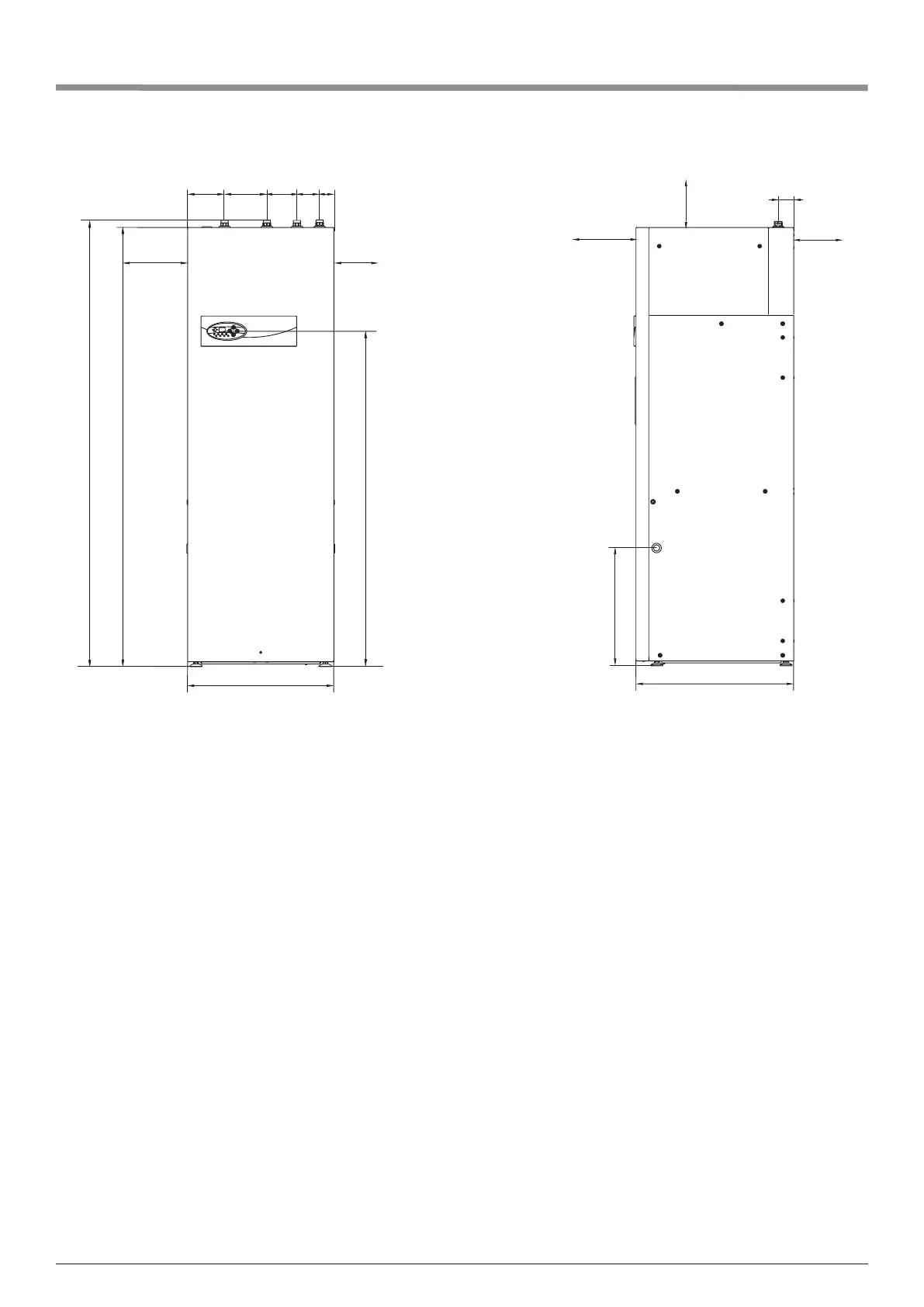

4. Installation: Dimensions
581
90168
1745
1773
~1330
150mm
Side
25mm
Side
120 60145
628
470
62
400mm Min
Front
25mm
Rear
250mm Min
Top
Note:
Please take care to leave
enough space at the front
of the boiler for routine
maintenance!
• Remove the boiler packaging checking the contents are correct.
• Take care when lifting the boiler not to cause damage to the outer casing.
• Due to the weight of the product the use of a handling device will be required.
• The boiler should be handled by two persons.
• Lift the boiler by the internal frame only, do not lift by pipes.
• Stooping should be avoided and protective clothing worn.
• Packaging is recyclable and should be disposed of approporately.
