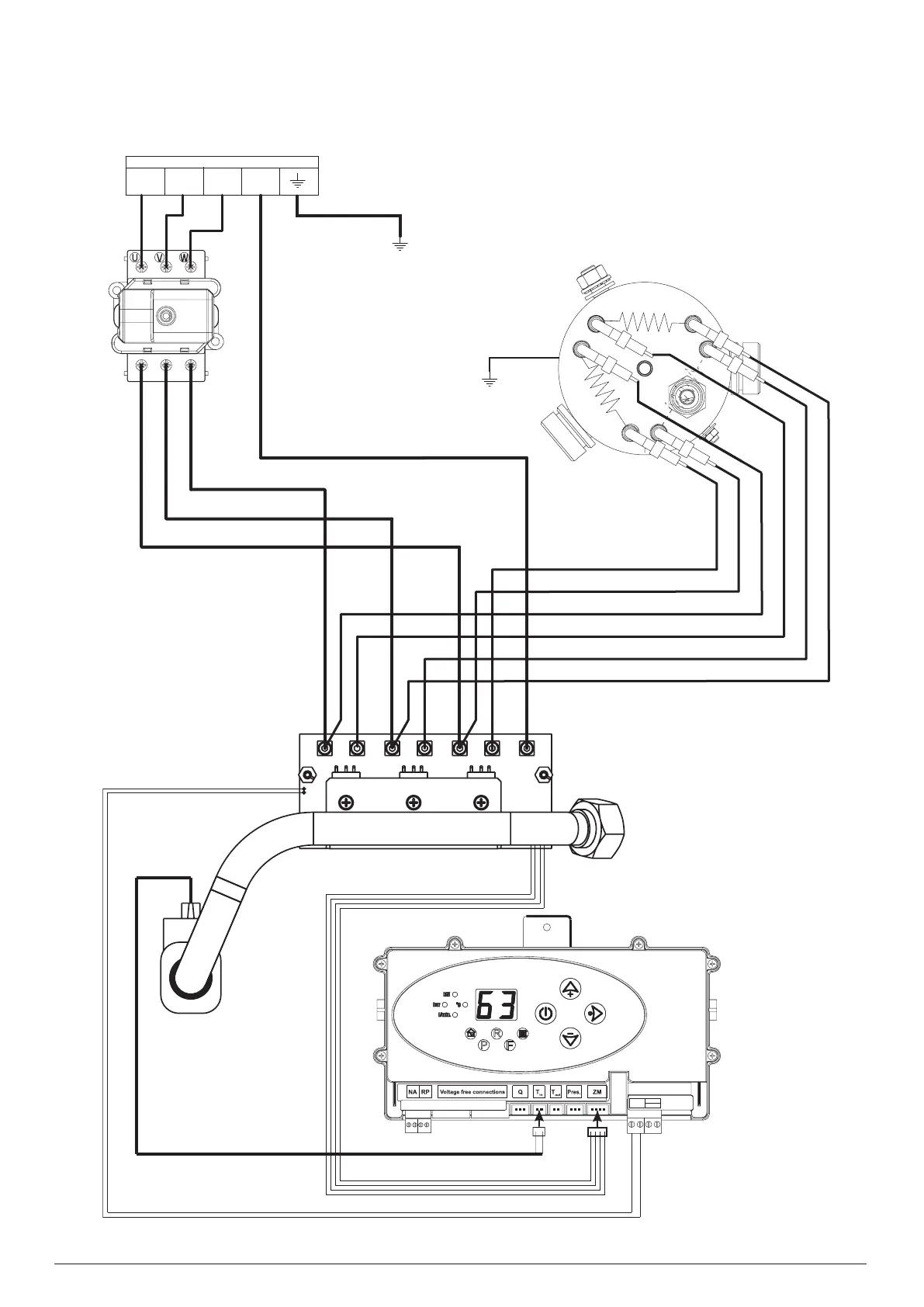

EHC Fusion Comet Series - Power Board Connection 415 V 3 N~ 14.4-23 kW; Wiring Diagram for 14.4-23 kW Models

16
GB-031C_f


Power supply 230/400V~
U
N
Ground
H.e 1
H.e 2
H.e 3
red
blue
L3
G3
L2
G2
L1
G1 N
V
W
P
R
F
N L
PUMP
L N
