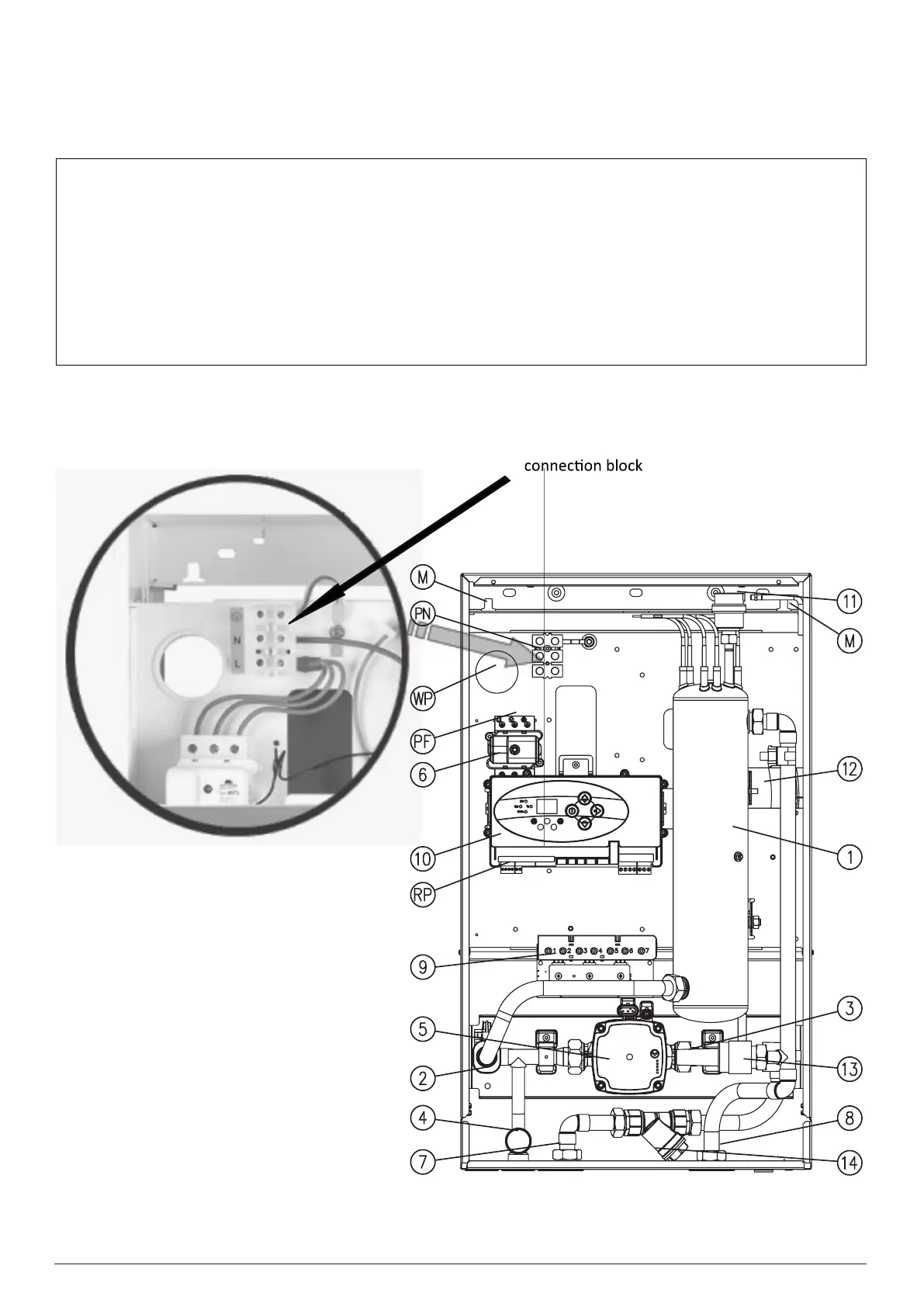

EHC Fusion Comet Series - Electric Boiler Internal Layout and Components; Internal Component Identification

5
GB-031C_f



 [1] - StainlessSteelHeatExchanger
 [2] - FlowSensor
 [3] - PressureSensor
 [4] - SafetyValve
 [5] - CirculatingPump
 [6] - SafetyTemperaturelimiter
 [7] - Returnconnection
 [8] - Flowconnection
 [9] - PowerBoard
 [10] - ControlModule
 [11] - AutomaticVent
 [12] - Expansionvessel
 [13] - By-passValve
 [14] - MagneticFilter
 PF - Internal„mains”phaseconnectionsfromthePNconnectionblock
 PN - Incoming‘mains’cableconnectionblock
 WP - Electriccableaccess
 M - Boilerfixingpoints
 RP - ExternalControls(VoltFree)
Electrical ‘mains’ input
