PART III: ENGINE FAMILIARIZATION

3. GENERAL

This part provides details about engine identification, engine Sl No nomenclature, Orientation, technical

specifications and various Systems of engine.

3.1 ENGINE IDENTIFICATION.

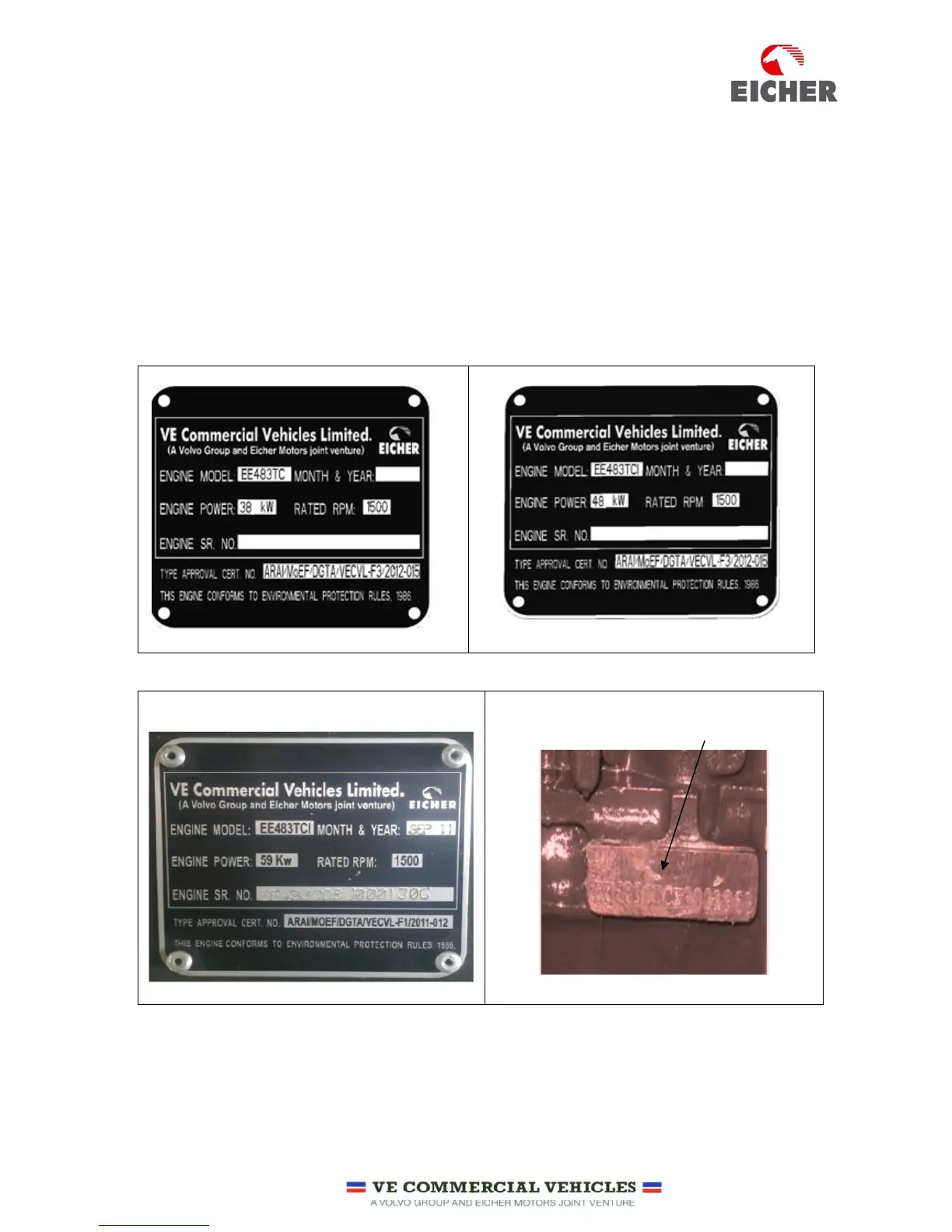

Engine is identified with the engine nameplate fitted on flywheel housing on left hand side of the engine

when viewed from front. Engine name plate contains the information as shown in the figure 1, 2 and 3.

Engine Sl No is also punched on the Cylinder block as shown in the figure 4.

Fig-

1- EE483TC-38 Kw

Fig 2 – EE483TC-48 Kw

Fig-3-EE483TCI-59 Kw

Engine Sl No Punched on Cylinder Block

Fig-4
