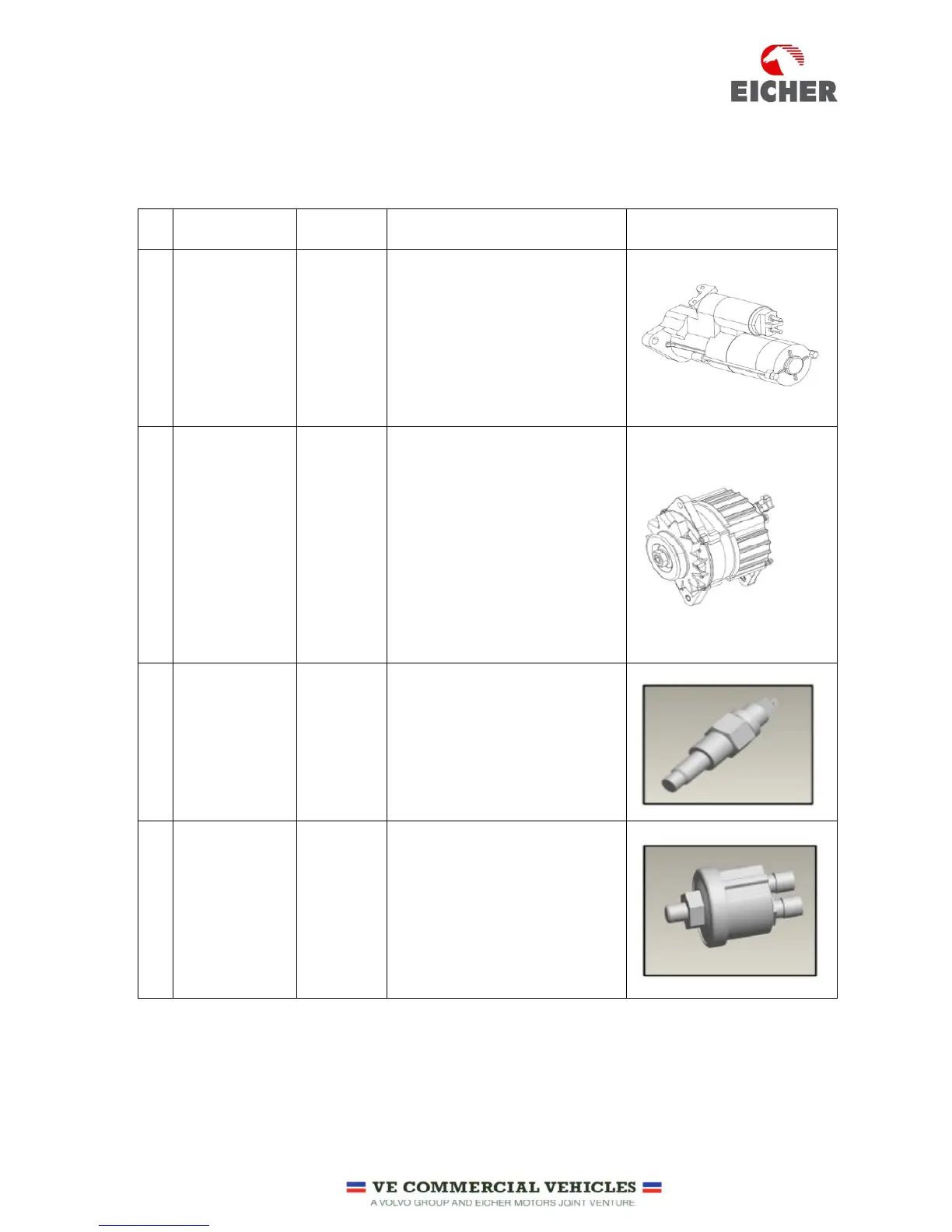

PART IV- ENGINE ELECTRICAL SYSTEM:
12 V, Negative Earthing Electrical systems is used on the engine. Electrical systems consist of the following
and its usage is discussed as below.
Sl
No
Name of
Component
Operating
Voltage
Usage
Illustration
1 Starter Motor 12V
Engine Starting
2
Battery
Charging
Alternator
12V
Battery Charging / W Point Signal
for RPM Sensing
3
Temperature
Sensor Cum
Switch
12V
1.
Signal
to Engine Control Unit /
Temperature Gauge for Coolant
temperature indication
2.Signal to Engine Control Unit /
Stop Relay for Stopping the
Engine in the event of High
Coolant Temperature
3. NO – Normally open
4 Pressure Sensor 12V
Signal to Engine Control Unit /
Gauge oil pressure for oil pressure
indication
