Eicher EE483TC User Manual

6

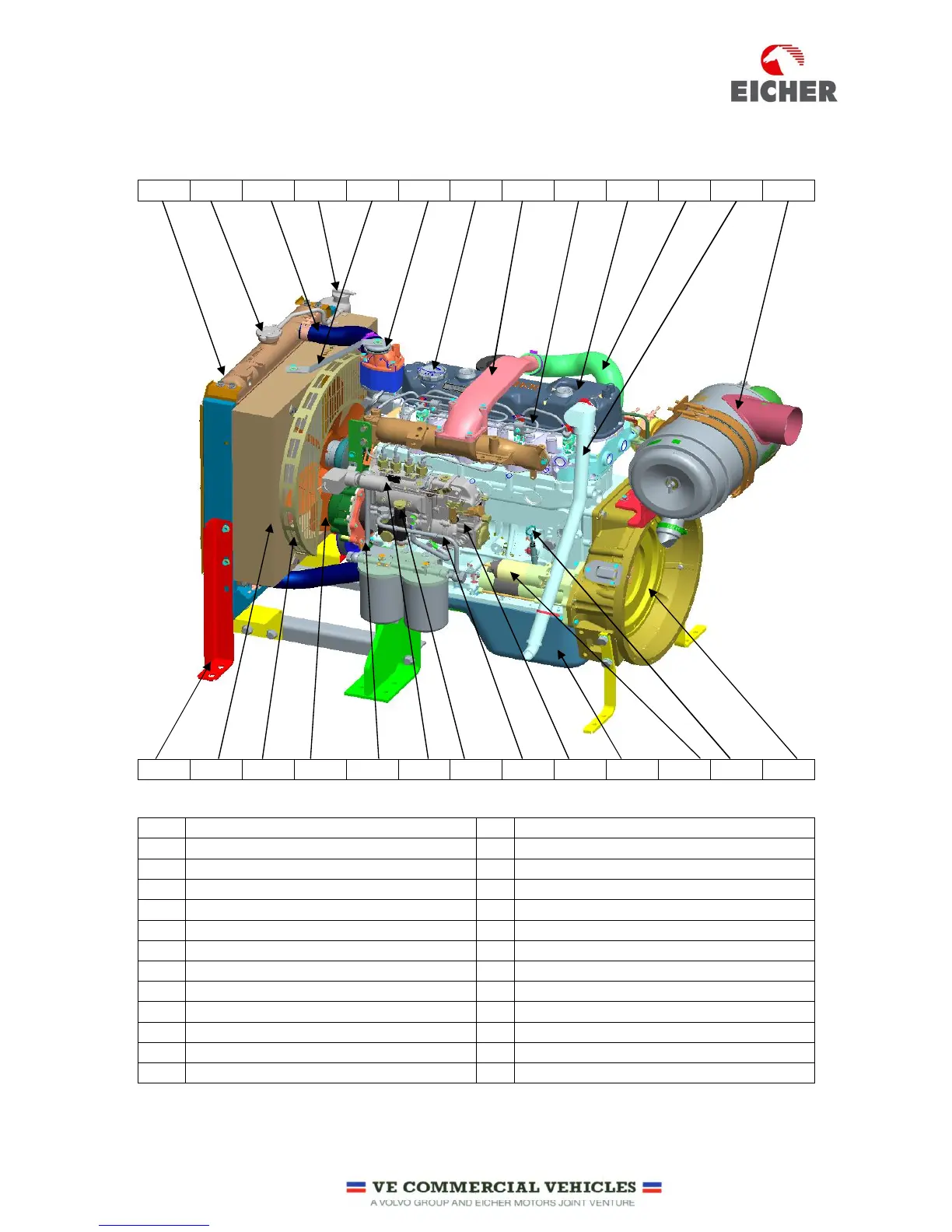

3.3 ENGINE ORIENTATION AND PARTS ILLUSTRATION (EE483TC -TURBO CHARGED ENGINE):
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Radiator
14
Strip
-
Support radiator
2
Radiator Cap
15
Shroud Radiator
3
Hose
-
Radiator In
16
Guard Fan Radiator
4
Tank Condenser
17
Fan Cooling Radiator
5
Bracket
–
Radiator Support
18
Pipe
-
Fuel filter to Fuel injection pump
6
Cushion
-
Radiator Support Bracket
19
Stop Solenoid
7
Cap Oil Filler
20
Feed pump
8
Pipe
-
Turbo to Intake Manifold
21
Pipe fuel
-
Feed Pump to fuel filter
9
High Pressure Pipe
22
Fuel injection Pump
10
Rocker Cover
23
Oil Sump
11
Hose
-
Turbo out
24
Starter Motor
12
Hose
Breather
25
Dip
Stick
13
Air cleaner Assembly
26
Flywheel

Eicher EE483TC Specifications

General

Brand	Eicher
Model	EE483TC
Category	Engine
Language	English
