Eico 950B - Chassis Assembly (Fig. 6)

i=
( ) Fig.
Bt)" Fig.
i) Fig.
( ) Fig.
i) Figt
( ) Figt
a5
*¥;
Connect the .01 mf capacitor, C7, from $2-1 (S) to ground lug "D" (C).
Connect the 8 mf capacitor, C1, from TB2-2 (C) to ground lug "D" (S). (positive (+) lead to ground )
Connect the 3.3KQ resistor, R7, from TB272 (S) to TB2-1 (C).
Connect a 8 1/2 in. length of white hook-up wire to TB2-1 (S).
Connect the 500 Q resistor, Rl, from P2-1 (C) to TB2-3 (S).
Connect an 3 in. piece of white hook-up wire through P2-3 (S) to P2-2 (S). Pass other end of lead through
chassis hole.
( ) Fig. 5. Insert line cord in grommet and knot 5" from stripped ends. Connect one lead to XV174 (S) and other lead
foroz—2 (S).

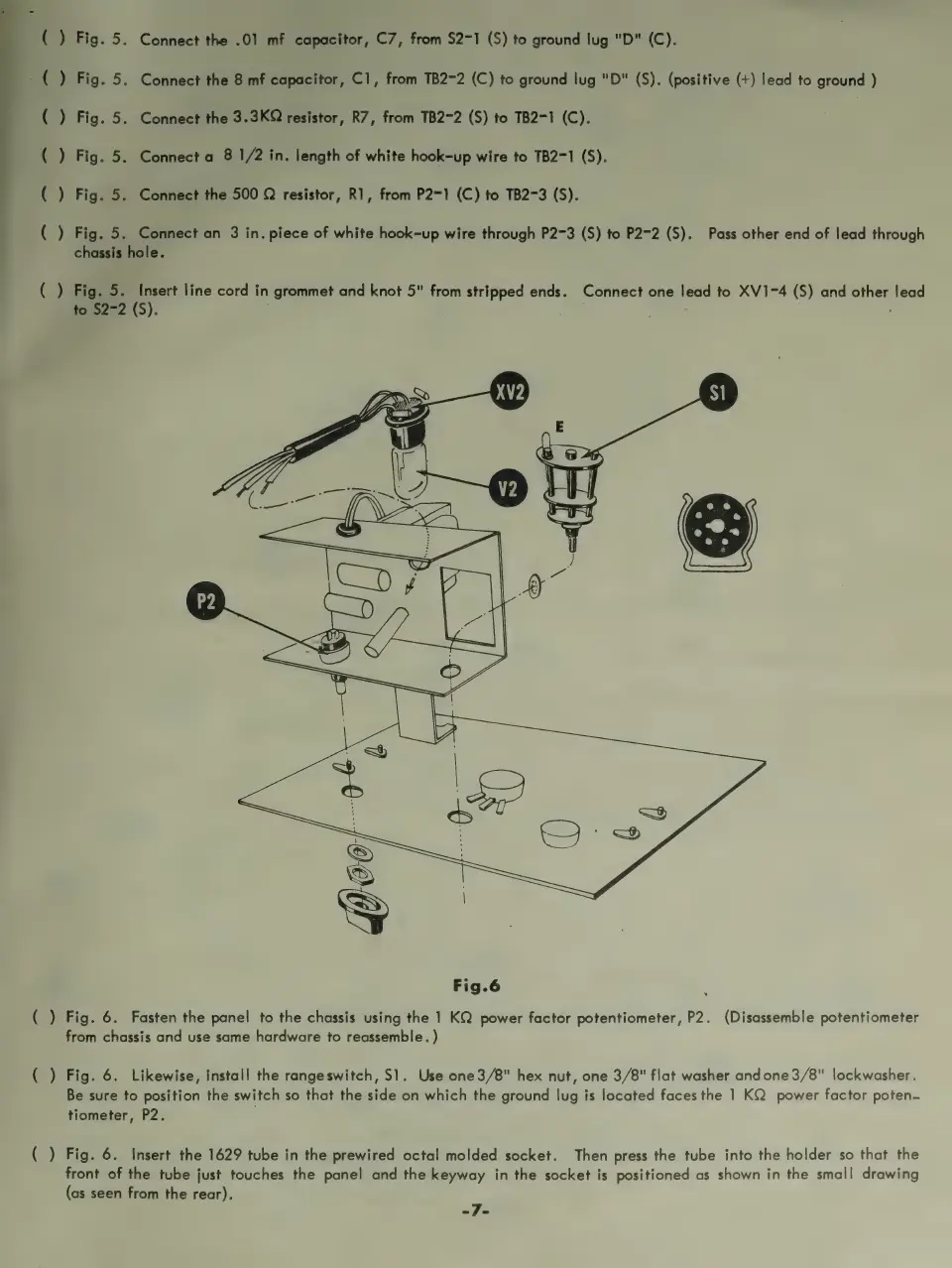

Fig.6
( ) Fig. 6. Fasten the panel to the chassis using the 1 KQ power factor potentiometer, P2. (Disassemble potentiometer
from chassis and use same hardware to reassemble. )
( ) Fig. 6. Likewise, install the rangeswitch, S1. Use one3/8" hex nut, one 3/8" flat washer andone3/8" lockwasher.
Be sure to position the switch so that the side on which the ground lug is located faces the 1 KQ power factor poten.
tiometer, P2.
( ) Fig. 6. Insert the 1629 tube in the prewired octal molded socket. Then press the tube into the holder so that the
front of the tube just touches the panel and the keyway in the socket is positioned as shown in the small drawing
(as seen from the rear).
