Eico 950B - Power Transformer & Controls Wiring (Fig. 5)

Fig.5

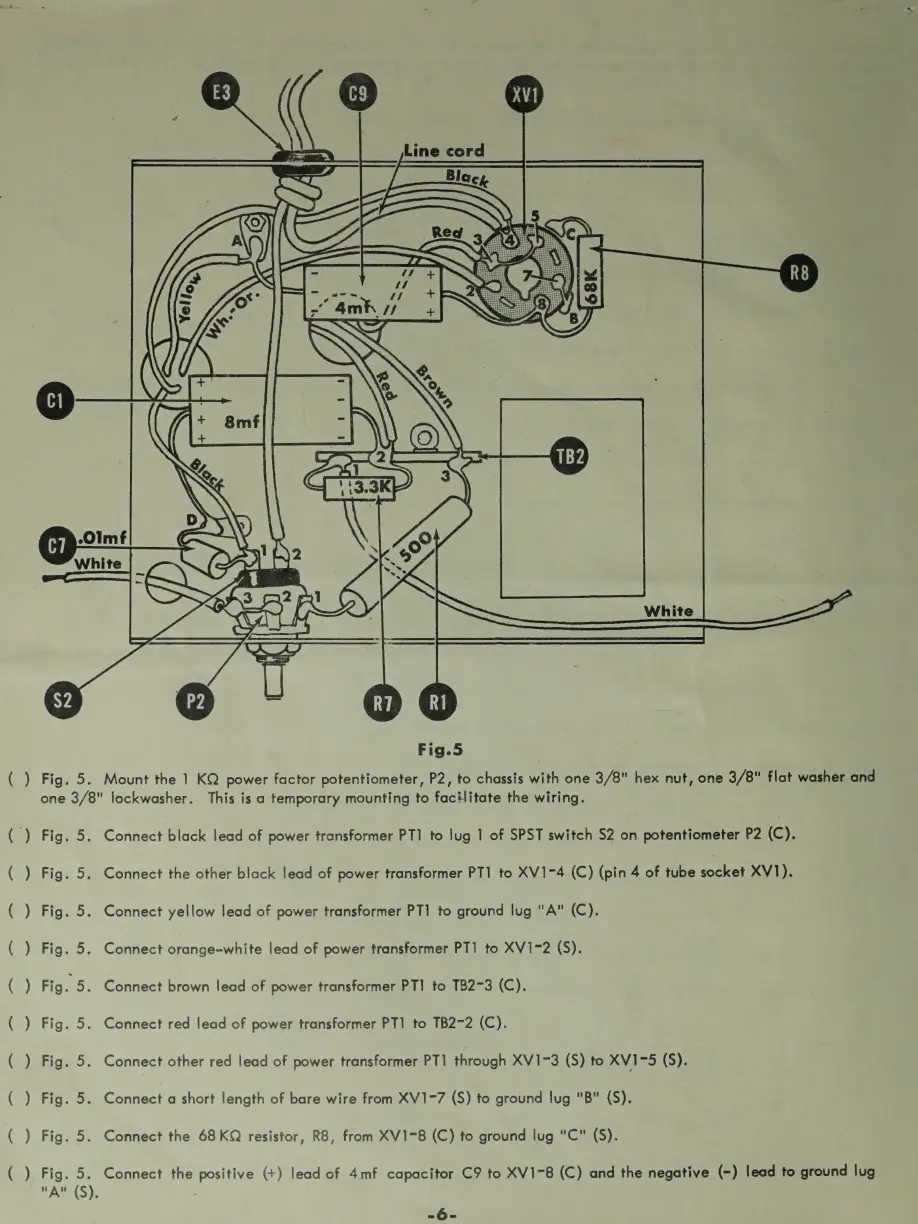

Fig. 5. Mount the 1 KQ power factor potentiometer, P2, to chassis with one 3/8" hex nut, one 3/8" flat washer and
one 3/8" lockwasher. This is a temporary mounting to facilitate the wiring.
Fig. 5. Connect black lead of power transformer PTI to lug 1 of SPST switch S2 on potentiometer P2 (C).
Fig. 5. Connect the other black lead of power transformer PT] to XV17-4 (C) (pin 4 of tube eaver XV1).
Fig. 5. Connect yellow lead of power transformer PTI to ground lug "A" (C).
Fig. 5. Connect orange-white lead of power transformer PT! to XV172 (S).
Fig. 5. Connect brown lead of power transformer PT! to TB2~3 (Gy;
Fig. 5. Connect red lead of power transformer PTI to TB2-2 (C).
Fig. 5. Connect other red lead of power transformer PTI through XV1-3 (S) to XV1-5 (S).
Fig. 5. Connect a short length of bare wire from XV177 (S) to ground lug "B" (S).
Fig. 5. Connect the 68KQ resistor, R8, from XV178 (C) to ground lug "C" (S).
Fig. 5. Connect the positive (+) lead of 4mf capacitor C9 to XV178 (C) and the negative (-) lead to ground lug
"AY" (5),
