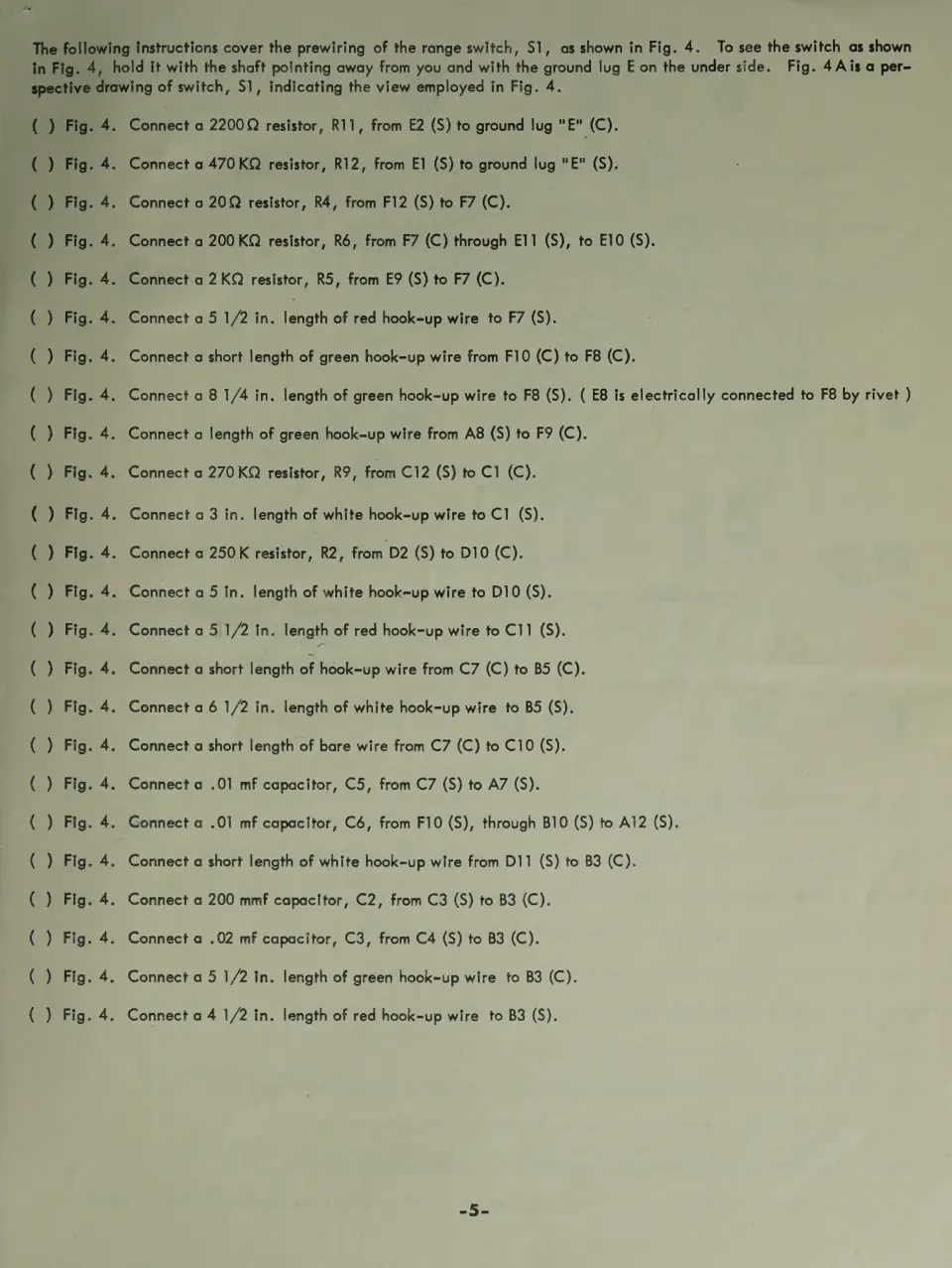

Eico 950B - Prewiring Range Switch (Fig. 4)

The following instructions cover the prewiring of the range switch, S1, as shown in Fig. 4. To see the switch as shown
in Fig. 4, hold it with the shaft pointing away from you and with the ground lug E on the under side. Fig. 4Ais a per-
spective drawing of switch, S1, indicating the view employed in Fig. 4.
( ) Fig. 4.
4.
(
(
)
)
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
Fig.
4,
Connect a 2200Q resistor, R11, from E2 (S) to ground lug "Ee" (C).
Connect a 470 KQ resistor, R12, from E1 (S) to ground lug "E" (S).
Connect a 20Q resistor, R4, from F12 (S) to F7 (C).
Connect a 200 KQ resistor, R6, from F7 (C) through E11 (S), to E10 (S).
Connect a 2 KQ resistor, R5, from E9 (S) to F7 (C).
. Connect a 5 1/2 in. length of red hook-up wire to F7 (S).
. Connect a short length of green hook-up wire from F10 (C) to F8 (C).
Connect a 8 1/4 in. length of green hook-up wire to F8 (S). ( E8 is electrically connected to F8 by rivet )
Connect a length of green hook-up wire from A8 (S) to F9 (C).
. Connect a 270 KQ resistor, R9, from C12 (S) to Cl (C).
. Connect a 3 in. length of white hook-up wire to Cl (S).
Connect a 250K resistor, R2, from D2 (S) to D10 (C).
. Connect a 5 in. length of white hook-up wire to D10 (S).
Connect a 5 1/2 in. length of red hook-up wire to C11 (S).
Connect a short length a hook-up wire from C7 (C) to B5 (C).
. Connect a 6 1/2 in. length of white hook-up wire to B5 (S).
Connect a short length of bare wire from C7 (C) to C10 (S).
. Connect a .01 mf capacitor, C5, from C7 (S) to A7 (S).
. Gonnect a .01 mf capacitor, C6, from F10 (S), through B10 (S) to A12 (S).
. Connect a short length of white hook-up wire from D11 (S) to B3 (C).
. Connect a 200 mmf capacitor, C2, from C3 (S) to B3 (C).
. Connect a .02 mf capacitor, C3, from C4 (S) to B3 (C).
. Connect a 5 1/2 in. length of green hook-up wire to B3 (C).
. Connect a 4 1/2 in. length of red hook-up wire to B3 (S).
