Eico 950B - Detailed Construction Procedure; Mounting Components (Fig. 1)

CONSTRUCTION PROCEDURE
CONSTRUCTION PROCEDURE: The step-by-step mounting and wiring procedure given below allows you to complete the
mounting and wiring in a systematic manner. When you have completed a mounting or wiring instruction, check it off in
the space provided. The method and location of mounting or the proper way to run a particular lead is shown in the ac=
companying drawings. To keep the drawings uncrowded, unnecessary repetition of mounting or wiring details may be
omitted.
NOTE: In some cases, more than one connection is made to the same terminal. This condition is designated in the wiring
instructions by the abbreviation (C), meaning that the connection should not be soldered until other leads have been con-
nected. Where only one lead is connected to a terminal, or where the last of several leads is connected, the abbreviation
(S) will be given. (S) means that the joint should be soldered.

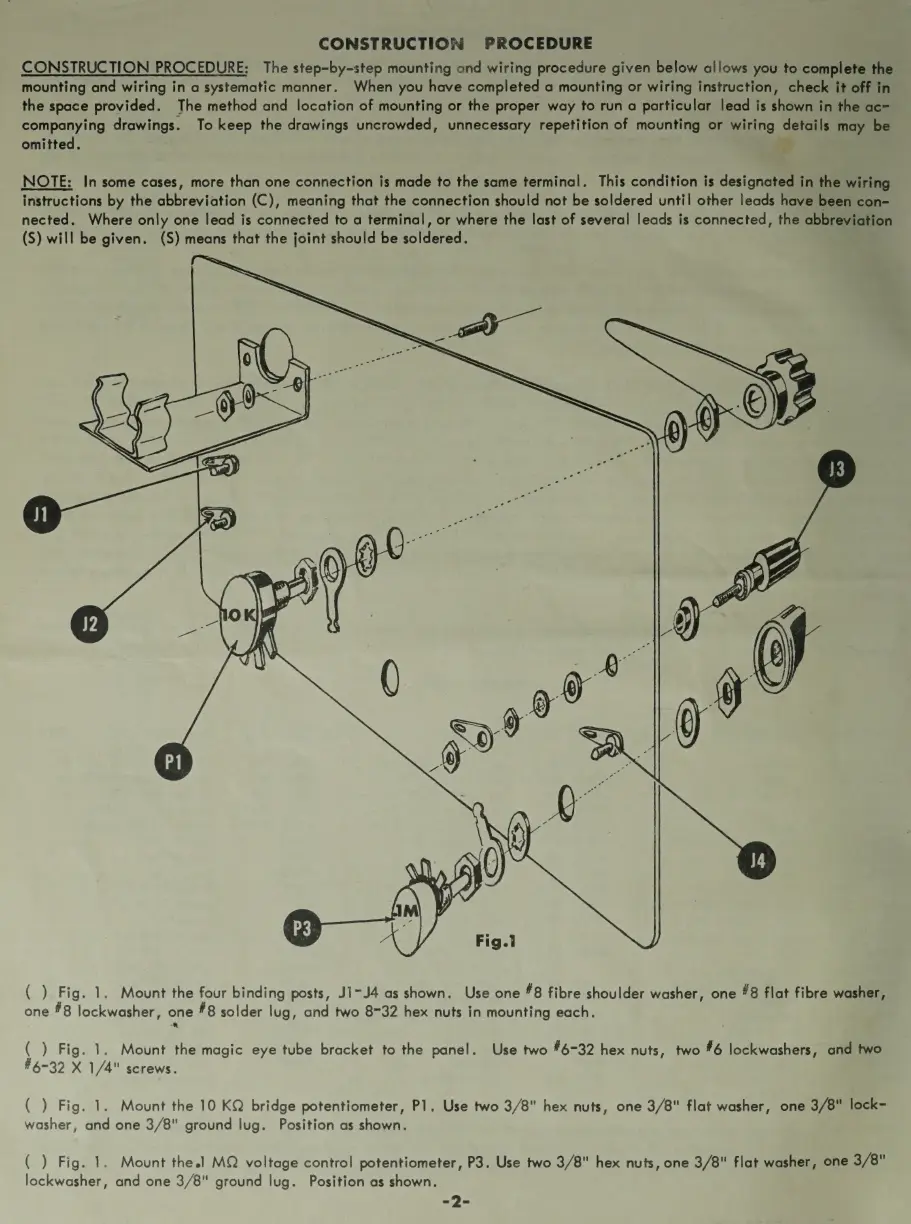

Fig.]
( ) Fig. 1. Mount the four binding posts, Ji-J4 as shown. Use one #8 fibre shoulder washer, one #8 flat fibre washer,
one #8 lockwasher, one #8 solder lug, and two 8-32 hex nuts in mounting each.
we
( ) Fig. 1. Mount the magic eye tube bracket to the panel. Use two #6-32 hex nuts, two #6 lockwashers, and two
#6-32 X 1/4" screws.
( ) Fig. 1. Mount the 10 KQ bridge potentiometer, P1. Use two 3/8" hex nuts, one 3/8" flat washer, one 3/8" lock-
washer, and one 3/8" ground lug. Position as shown.
() Fig. 1. Mount the.] MQ voltage control potentiometer, P3. Use two 3/8" hex nuts, one 3/8" flat washer, one 3/8"
lockwasher, and one 3/8" ground lug. Position as shown.
-2-
