EN
- 9 -
Safety Rules and Instructions:
Extension Cords
Double insulated tools have 2-wire cords and can
be used with 2-wire or 3-wire extension cords.
Only round jacketed extension cords should be
used, and we recommend that they be listed
by Underwriters Laboratories (U.L.) (C.S.A. in
Canada). If the extension will be used outside, the
cord must be suitable for outdoor use. Any cord
marked as outdoor can also be used for indoor
work. An extension cord must have adequate wire
size (AWG or American Wire Gauge) for safety,
and to prevent loss of power and overheating. The
smaller the gauge number of the wire, the greater
the capacity of the cable, that is 16 gauge has
more capacity than 18 gauge. When using more
than one extension to make up the total length,
be sure each individual extension contains at
least the minimum wire size. Before using an
extension cord, inspect it for loose or exposed
wires, damaged insulation, and defective fi ttings.
Make any needed repairs or replace the cord if
necessary.

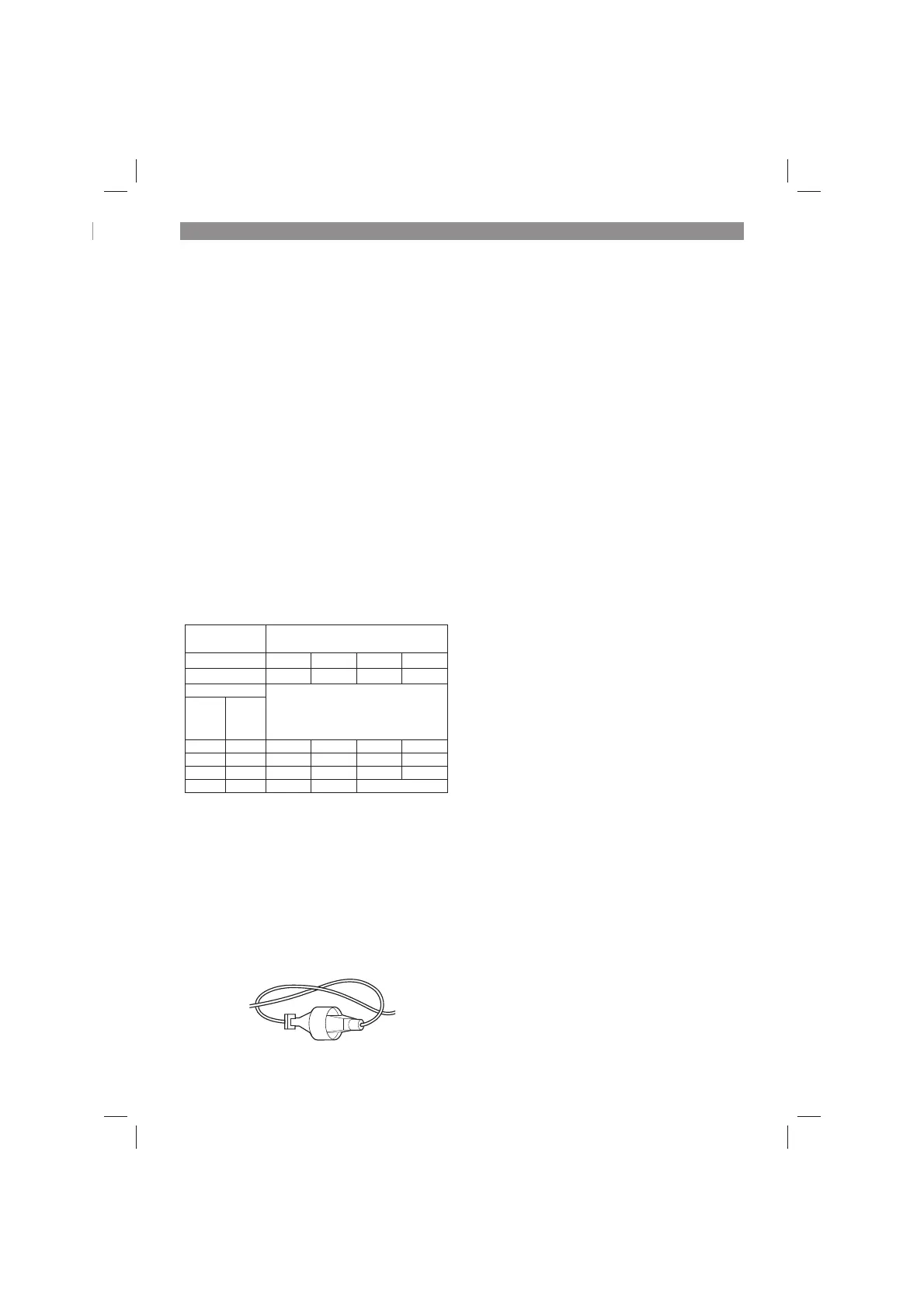

Minimum Gauge for Cord Sets
Volts
Total Length of Cord in Feet
(meters)
120 V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7)
240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4)
Ampere Rating
American Wire Gauge
More
Than
Not
More
Than
0 6 18 16 16 14
61018161412
10 12 16 16 14 12
12 16 14 12 Not Recommended
To reduce the risk of disconnection of appliance
cord from the extension cord during operating:
a) Make a knot as shown in fi gure B; or
b) Use one of the plug-receptacle retaining straps
or
connectors described in this manual.
OR
c) Secure the extension cord to the appliance
plug as shown or described in the Operating
Instructions.
fi gure B)
The tool can be plugged into any socket-outlet
(with 120V ~) that is equipped with a 15A fuse or
higher. The socket-outlet has to be safeguarded
by an earth-leakage circuit breaker (e.l.c.b.). The
operating current must not exceed 30 mA.
SAVE THESE INSTRUCTIONS
2. Layout and items supplied
2.1 Layout
1. Front suction tube
1.1. Recess
2. Rear suction tube
2.1 Guide lug
3. Additional handle
3.1 Lock knob
4. Shoulder strap
5. On/Off switch
6. Power cord
7. Collection bag
7.1 Mount
7.2 Button
8. Blower tube
8.1 Sleeve
8.2 Mount
8.3 Button
9. Castors
9.1 Lock/release button
10. Speed control
11. Hex. bolt
11.1 Hexagon lock
12. Lock knob
12.1 Lock knob
13. Cover
2.2 Items supplied
Please check that the article is complete as
specifi ed in the scope of delivery. If parts are
missing, please contact our service center or the
store where you made your purchase at the latest
within 5 work days after purchasing the article and
upon presentation of a valid bill of purchase.
•
Open the packaging and take out the
equipment with care.
•
Remove the packaging material and any
packaging and/or transportation braces (if
present).
•
Check to see if all the items are supplied.
•
Inspect the equipment and accessories for
transport damage.
•
If possible, keep the packaging until the end
of the guarantee period.
