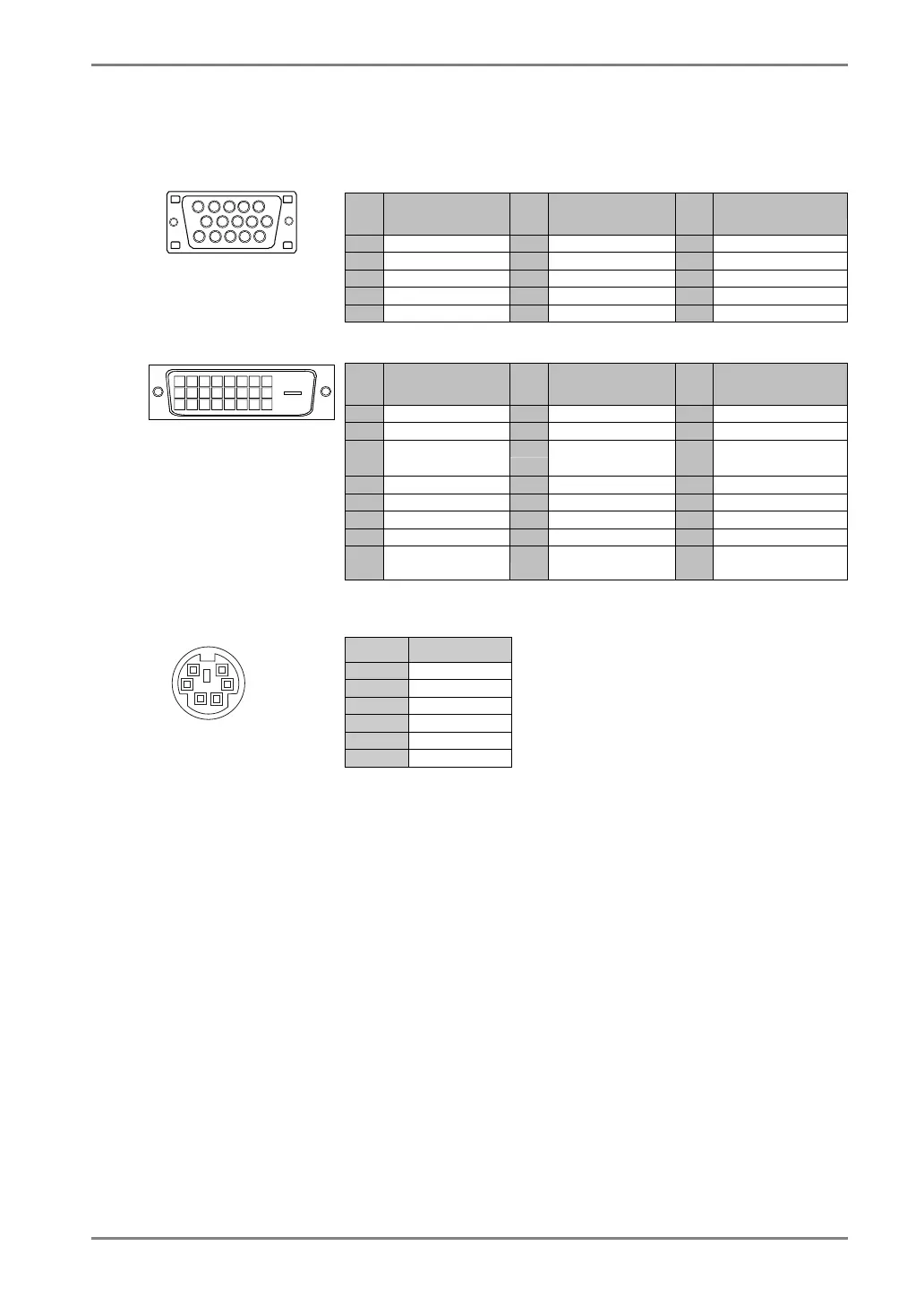

Pin Assignment
D-Sub mini 15 pin connector
Pin
No.
Signal Pin
No.
Signal Pin
No.
Signal
1 Red video 6 Red ground 11 Ground Shorted
2 Green video 7 Green ground 12 Data (SDA)
3 Blue video 8 Blue ground 13 H. Sync
4 Ground 9 No pin 14 V. S y n c
5 No pin 10 Ground Shorted 15 Clock (SCL)
DVI-D Connector
Pin
No.
Signal Pin
No.
Signal Pin
No.
Signal
1 TMDS Data2- 9 TMDS Data1- 17 TMDS Data0-
2 TMDS Data2+ 10 TMDS Data1+ 18 TMDS Data0+
3 TMDS Data2/4
Shield
11 TMDS Data1/3
Shield
19 TMDS Data0/5
Shield
4 NC* 12 NC 20 NC
5 NC 13 NC 21 NC
6 DDC Clock (SCL) 14 +5V Power 22 TMDS Clock shield
7 DDC Data (SDA) 15 Ground (For +5V) 23 TMDS Clock+
8 Analog Vertical
Sync
16 Hot Plug Detect 24 TMDS Clock-
(*NC: No Connection)
RS-232C Port (Mini DIN 6 pin)
Pin No. Signal
1 RXD
2 RTS
3 CTS
4 GND
5 TXD
6 GND
5
1
3
4
2
8
7
6
9
10
12
1314
15
11
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
19
20
2117
18 22 23
24
1
2
3
4
5
6
