eKey home set - Page 15

15
How to replace the CP integra
YOUR FINGER. YOUR KEY.

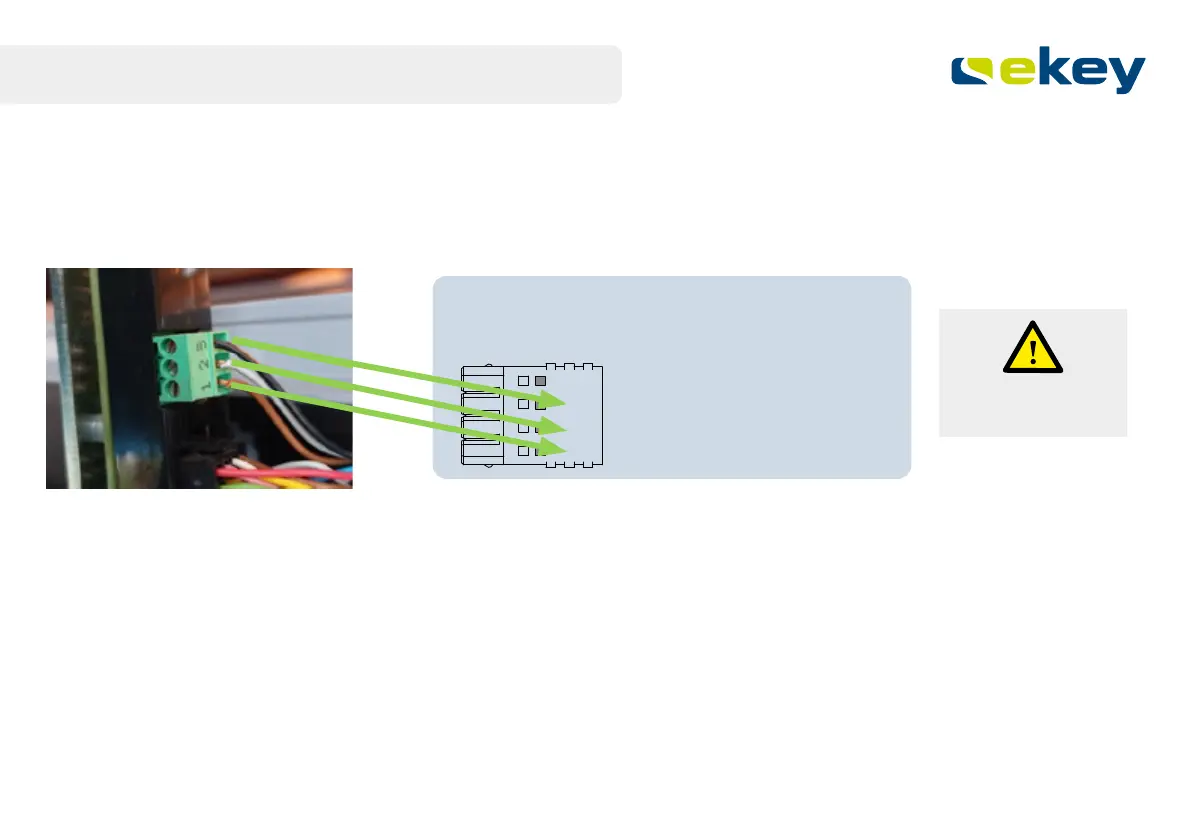

Connect the cores from the green plug to the 4-core plug for the connection to the motorized lock (labeled 1 2 3 4).
Connection according to wiring diagram:
In the case of locks that work with a switching impulse, you must switch from the green plug to the ekey dLine
plug as follows: 1 to 1, 2 to 2, 3 to 3. 4 remains free on the ekey dLine plug.
Beware!
Do NOT remove the
jumper
Color
ekey dLine cable transfer
Wiring diagram ekey dLine/GU-SECURY Automatic
Connection to the motorized lock
Connection to the electrical installation
Description
white VDC (+) (12-24)
brown GND (-)
green
yellow
blue
gray
pink
Input
red
Input
Potential-free
request-to-exit
button for manual
door opening
Color
ekey bus
ekey bus
For testing purposes
For testing purposes
4
2
1
ekey dLine ngerprint
450007
ekey dLine cable FP
ekey dLine controller
450008
GU motorized lock cable
48 cm 2,5 m
201401
1
2
3
4
5
5
3
M
Connection to the control unit
Description
ColorPin
4 - -
3 black Switching impulse (+)
2 gray GND (-)
1 brown VDC (+)
Description
Pin
3
black
Switching impulse (+)
2
gray
GND (-)
1
brown
VDC (+)
Risk of electrocution: All ekey devices
are to be operated with Safety Extra
Low Voltage (SELV). Only use power
supplies rated protection class 2 with
safety approval according to
EN 62368-1.
Failure to do so will create a risk of
fatal electrocution.
Only certied electricians are
authorized to carry out electrical
installation work on mains systems.
DANGER
ATTENTION
Property damage in the event of
incorrect mounting and wiring: The
system devices are operated using
electricity.
They could be destroyed if they are
mounted and wired incorrectly.
Mount and wire the system devices
correctly before connecting the
power.
Each unused core must be insulated separately!
This wiring diagram is not subject to
updating. We reserve the right to make
technical modications and change the
product‘s appearance; any liability for
errors and misprints is excluded.
NOTICE
ID360/746/0/712: Version 1, 2020-10-06
4321
Use the cable for the motorized lock from GU.
