How to replace the CP integra
YOUR FINGER. YOUR KEY.

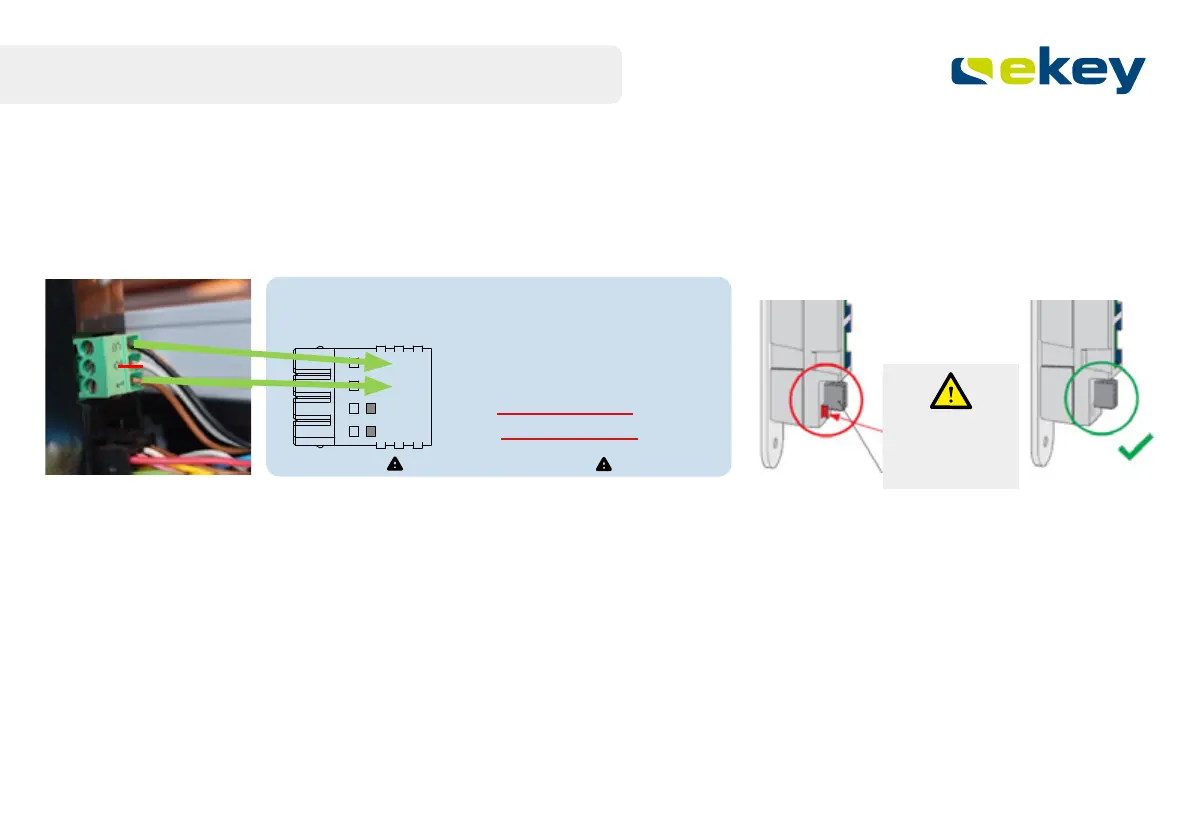

Connect the cores from the green plug to the 4-core plug for the connection to the motorized lock (labeled 1 2 3 4).
Connection according to wiring diagram:
In the case of locks that work with a dry contact, you must switch from the green plug to the ekey dLine plug as follows:
1 to 3, 3 to 4. 1 and 2 remains free on the ekey dLine plug.
Beware!
Remove the jumper
(without the jumper,
the output is a dry
contact)
Wiring diagram ekey dLine/MACO A-TS
Connection to the motorized lock
Connection to the electrical installation
Description
white VDC (+) (12-24)
brown GND (-)
green
yellow
blue
gray
pink
Input
red
Input
Potential-free
request-to-exit
button for manual
door opening
Color
ekey bus
ekey bus
For testing purposes
For testing purposes
4
2
1
5
3
M
Connection to the control unit
Risk of electrocution: All ekey devices
are to be operated with Safety Extra
Low Voltage (SELV). Only use power
supplies rated protection class 2 with
safety approval according to
EN 62368-1.
Failure to do so will create a risk of
fatal electrocution.
Only certi�ed electricians are
authorized to carry out electrical
installation work on mains systems.
DANGER
ATTENTION
Property damage in the event of
incorrect mounting and wiring: The
system devices are operated using
electricity.
They could be destroyed if they are
mounted and wired incorrectly.
Mount and wire the system devices
correctly before connecting the
power.
Each unused core must be insulated separately!
This wiring diagram is not subject to
updating. We reserve the right to make
technical modi�cations and change the
product‘s appearance; any liability for
errors and misprints is excluded.
NOTICE
ID368/757/0/718: Version 1, 2021-03-01
Description
ColorPin
4 yellow Opening signal
3 green
Opening signal
2
white
VDC (+)
1 brown
GND (-)
Description
ColorPin
4 green Opening signal
3 yellow
Opening signal
2
brown
GND (-)
1
white
VDC (+)
4321
Jumper must be removed!
ekey dLine cable transfer
ekey dLine ngerprint
450007
ekey dLine cable FP
ekey dLine controller
450008
ekey dLine cable MT MACO
48 cm 2,5 m
201401
1
2
3
4
5
201351, 201352
