EKF Diagnostics Biosen C-Line GP+ User Manual

Description of device components
User Manual Biosen C_line Clinic / GP+
7
3. Description of device components

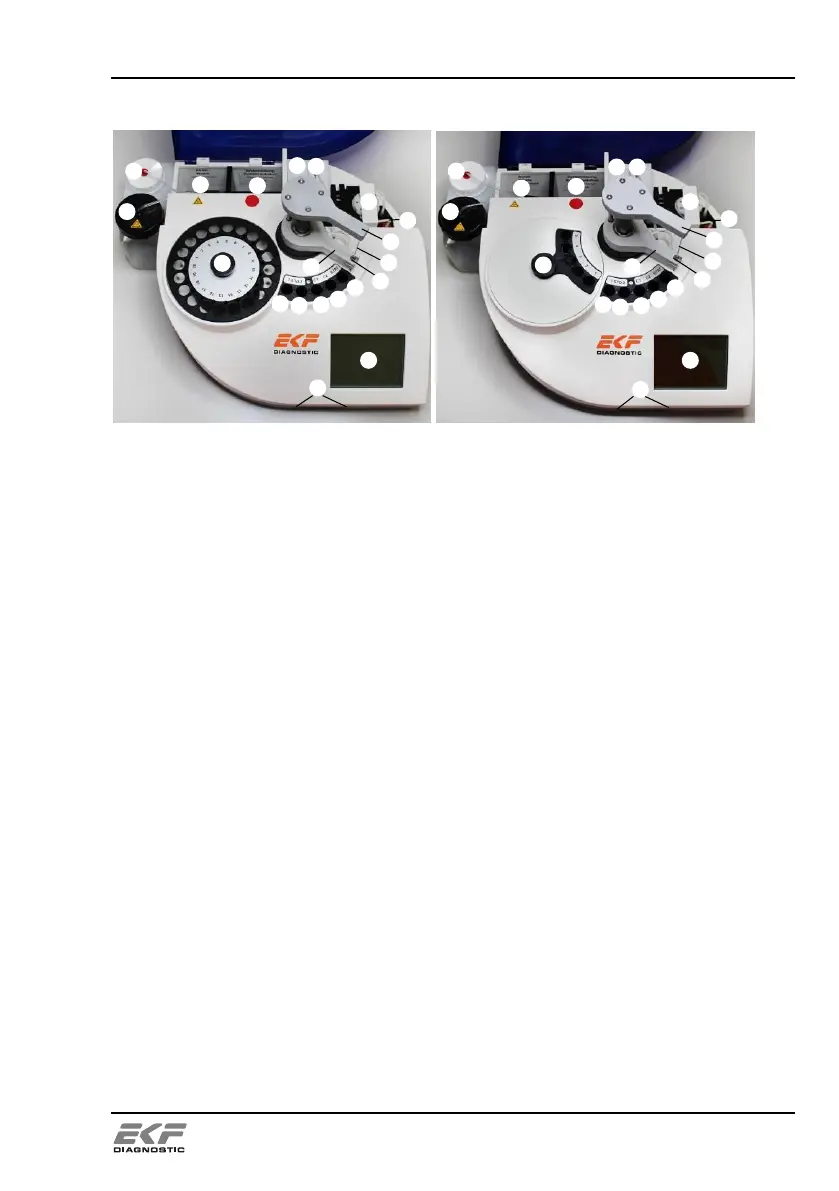

Figure 1 – Front view
Nr.
Description
C_line Clinic
C_line GP+
1
Display with touch panel
2
Tray for 20 samples,
removable
Tray for 5 samples,
removable
3, 4
Positions for standard 1 and 2 (STD1, STD2)
5, 6
Positions for control 1 and 2 (C1, C2)
7
Positions for urgent sample (STAT)
8
Exchanger (maintenance part)
9
Sample cannula (maintenance part)
10
Lifter
11
Pivot arm
12
Pump tube (maintenance part)
13
Pump with pump flap
14
Sensor lid measuring channel 1
15
Sensor lid measuring channel 2 (optional)
16
Opening for bottle of system solution
17
Opening for waste bottle
18
Waste bottle with lid, color code black + symbol Biohazard
19
Bottle for system solution with lid, color code red
20
Card reader
19
18
17
16
15
14
13
12
10
9
8
7
11
2
3
4
5
6
1
20
19
18
17
16
2
15
14
13
12
10
9
8
7
6
5
4
3
11
20
1
