5

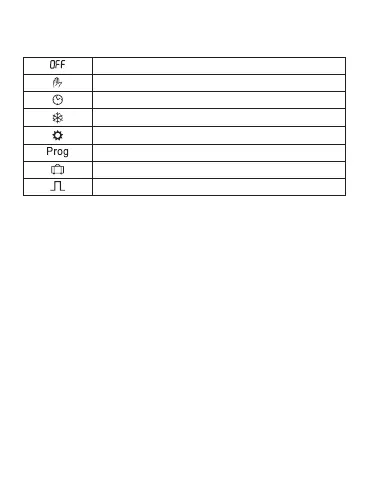

Legend, displayed in the screen, is given in table 3.
Table 3
Relay status (OFF, ON)
Manual control
Automatic control (as per program)
Switching to winter time
Switching to summer time
Program settings
«Holiday» mode
Impulse program
The timer is equipped with protective transparent cover with
possible sealing.
The mounted-in lithium battery ensures the protection of the timer
program, when there is no power supply voltage, during 3 years for
TE-80 and 10 years for TE-80 24-230V.
The timer microprocessor ensures the execution of the control
program with a number of programs up to 80. If necessary, the
timer can be put to the «Holiday» mode, during which the installed
program will not be executed.
3 INSTALLATION AND OPERATION PROCEDURE
The product shall be installed in the electrical cabinet on the
standard DIN-rail with 35 mm width.
In order to avoid pickup, false triggering, improper operation of the
relay, do not lay the relay supply conductors together with power
wiring. Use the shielded cable if necessary.
