Insert the key and switch (16) clockwise rotation. This car pile high, to prevent unauthorized
use, key needs to be counterclockwise. Rotating and pull out.
This car pile high with belly switch (14), when the vehicle to the operator when running in a
party, if the operating handle. Within touch belly switch, can make the vehicle to deviate from
the direction of the operator.
At the same time, follow the instructions on the label are shown in stick. Such as stickers
please timely replacement of damaged or missing.

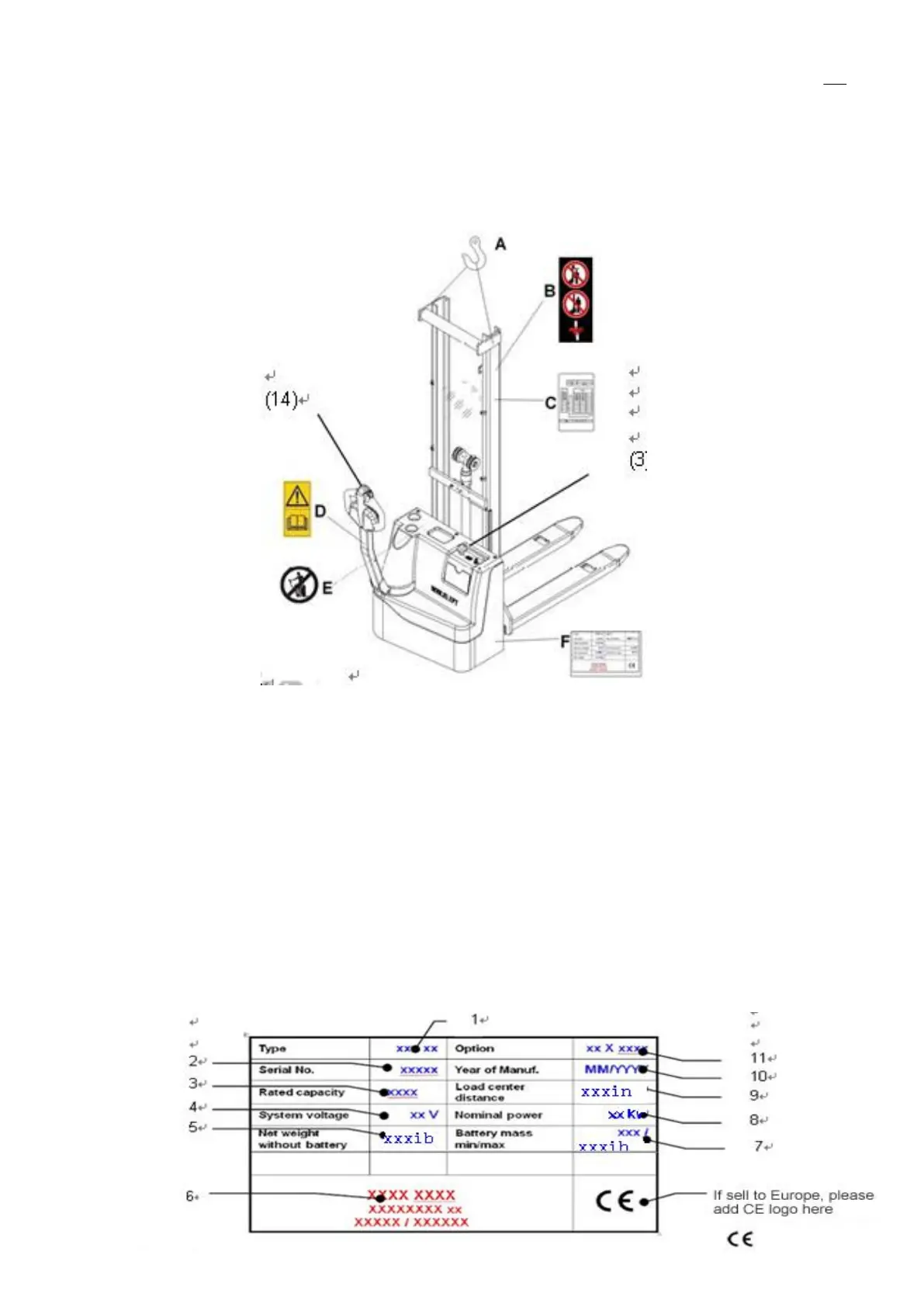

Fig 3: Safety devices and warning label
D. Nameplate
1 Name, type 7 Minimum / maximum battery weight
2 Serial number 8 Rated power (kW)
3 Rated capacity (ib) 9 Load center distance
4 Supply voltage (V) 10 Manufacturing parameters
5 No battery weight (weight) (ib) 11 Optional
6 The name and address of manufacturer
