EKO K75OUSN - Physical Ports Overview

11

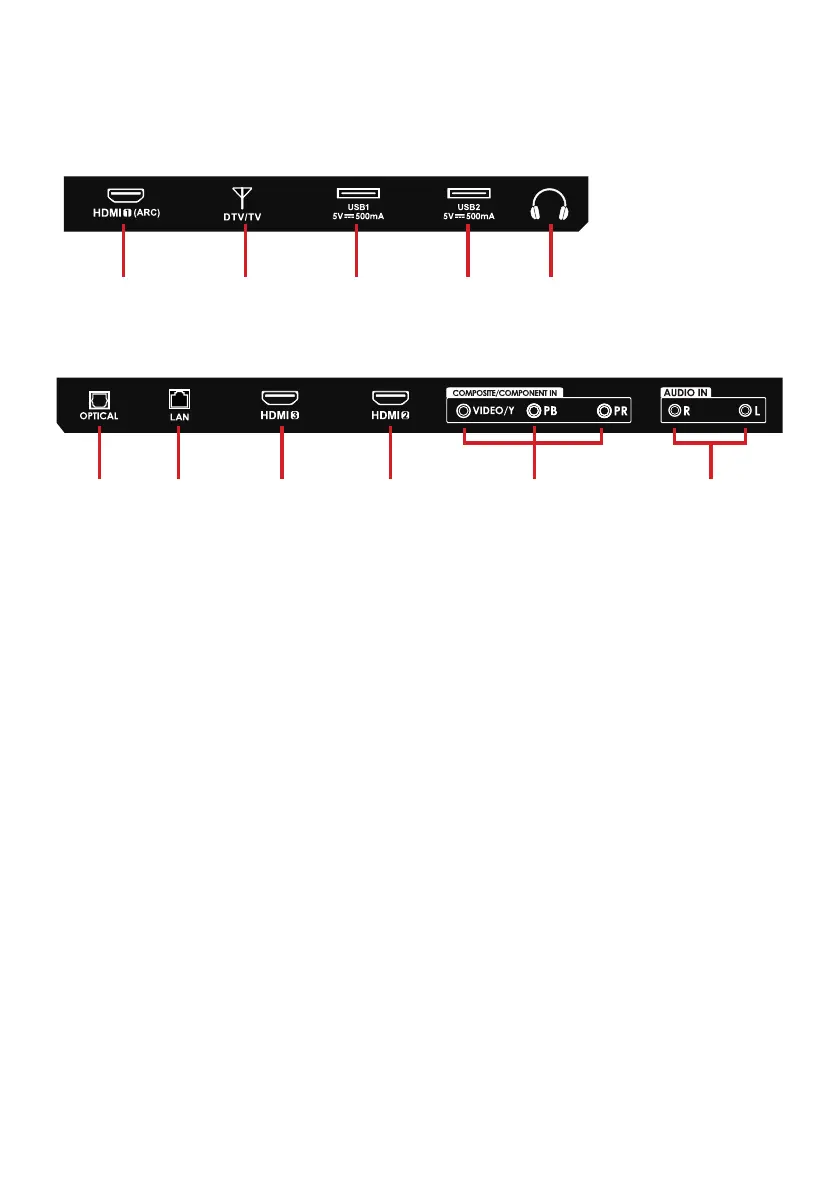

CONTROLS AND CONNECTIONS (Cont.)
1. HDMI 1 / ARC (AUDIO RETURN CHANNEL)
2. DTV/AV (ANTENNA)
3. USB 1
4. USB 2
5. HEADPHONE JACK
6. OPTICAL
7. LAN (ETHERNET/RJ45 PORT)
8. HDMI 3
9. HDMI 2
10. VIDEO/Y - PB - PR
11. AUDIO LEFT & RIGHT
SIDE OF TV
BOTTOM OF TV
USB connection
Insert a USB storage device into the USB port to record, playback of video/photo/music
1 2 3 4 5
6 7 8 9 10 11
