Outrigger
Feet
&
Spike
Installation
(UF5 Only)

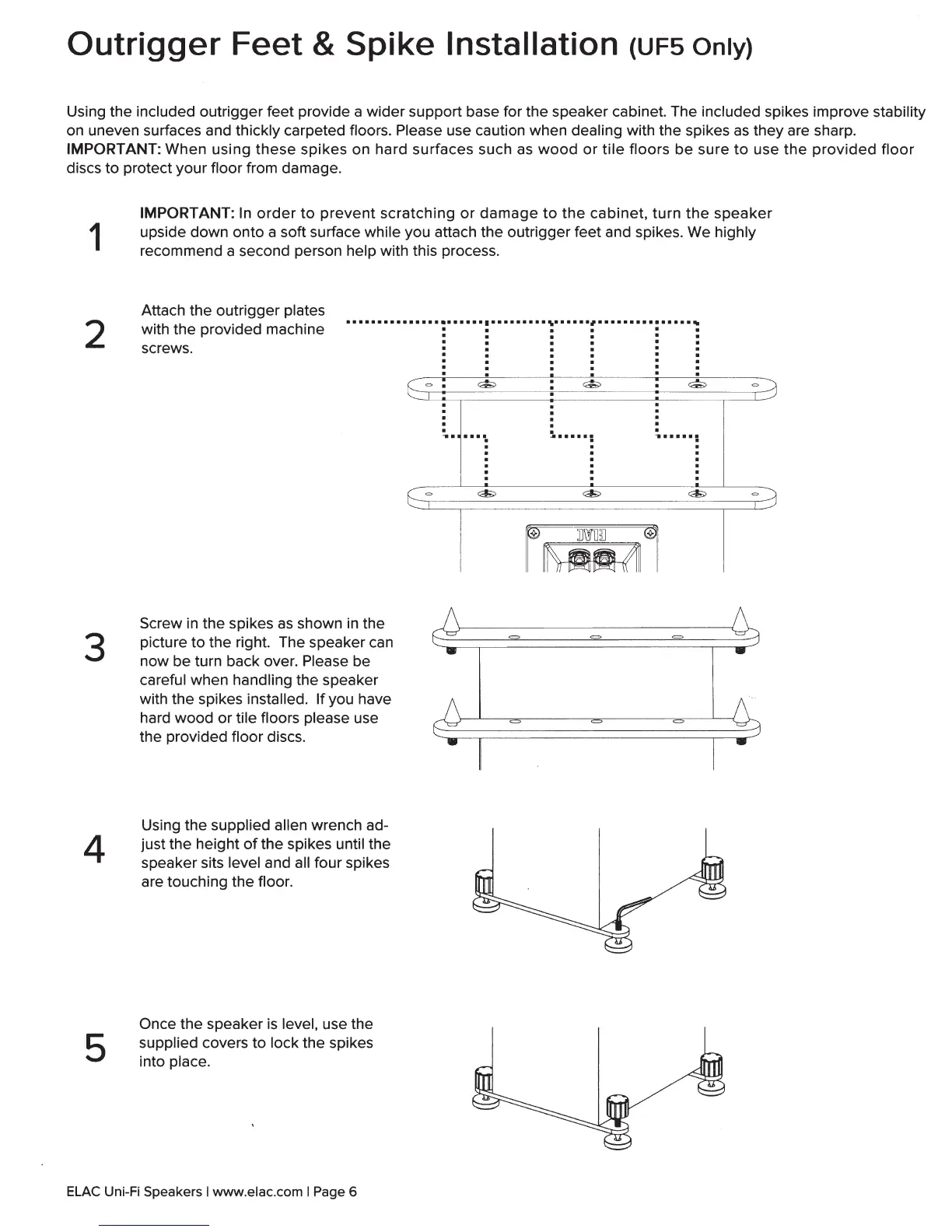

Using the included outrigger feet provide a wider support base for the speaker cabinet. The included spikes improve stability
on uneven surfaces and thickly carpeted floors. Please use caution when dealing with the spikes
as
they are sharp.
IMPORTANT: When using
these
spikes on hard surfaces such
as
wood
or
tile
floors
be
sure
to
use
the
provided
floor
discs
to
protect your floor from damage.
1
2
3
4
5
IMPORTANT:
In
order
to
prevent
scratching
or
damage
to
the
cabinet, turn
the
speaker
upside down onto a soft surface while you attach the outrigger feet and spikes. We highly
recommend a second person help with this process.
Attach the outrigger plates
with the provided machine
screws.
································~······~···············~
Screw
in
the spikes
as
shown
in
the
to
the right. The speaker can
now be turn back over. Please be
careful when handling the speaker
with the spikes installed.
If
you have
hard wood or tile floors please use
the provided floor discs.
Using the supplied allen wrench ad-
just the height
of
the spikes until the
speaker sits level and all four spikes
are touching the floor.
Once the speaker is level, use the
supplied covers to lock the spikes
into place.
. . . . .
.
= •
.
-..I
•••
-:.
.
.
.
.
. .
. .
.
.
.
.
.
.
.
.
.
.
......
.
.......
·:
.
.
.
.
.
.
.
.
.
.
ELAC Uni-Fi Speakers I www.elac.com I Page 6
