ELAC UB5 User Manual

Stereo
Setup
•
For the best
results and the most
realistic
stereo image and
lifelike
sound,
place the speakers so that
an
equilateral triangle
(fig.
2)
is
created between the speakers and your favorite listening
position. This set
up creates the optimum imaging performance.
•
If
you find that your UB5 or UF5
left
and right speakers are too far apart, angle
(toe
in)
them towards the
listening
position
to
gain a more focused
central
image .
LEFT
SPEAKER
RIGHT
SPEAKER
W
................
:
..
:.~j:~:.:~.:j~~:~::
................
JW
~
,\
....
~/'
l
~
LISTENING
POSITION

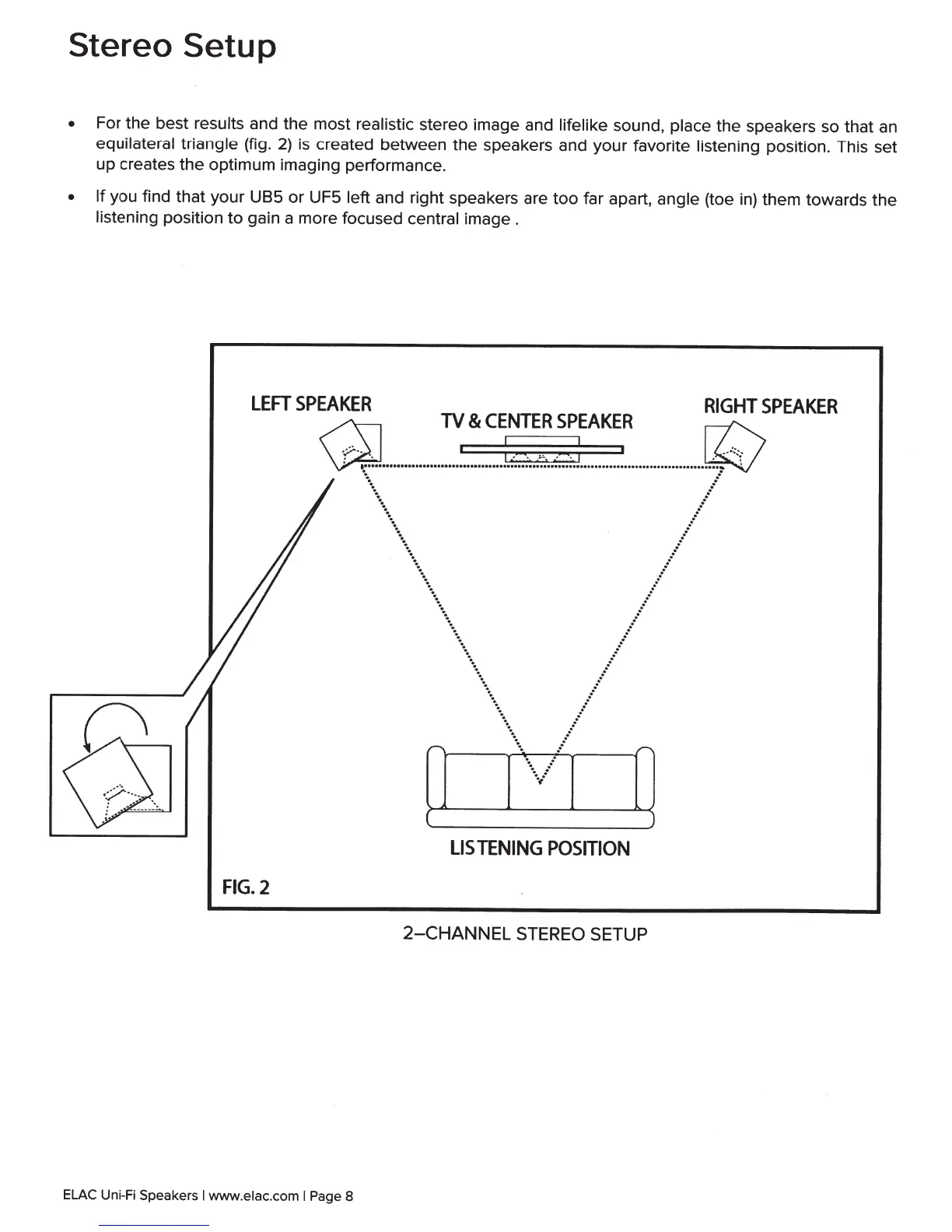

FIG.
2
2-CHANNEL
STEREO
SETUP
ELAC Uni-Fi Speakers
I www.elac.com I
Page 8

ELAC UB5 Specifications

General

Sensitivity	85 dB at 2.83 v/1m
Nominal Impedance	4 Ohms
Woofer	5.25-inch aluminum cone
Cabinet Finish	Black brushed vinyl
Frequency Response	46 Hz - 25 kHz
Crossover Frequency	270 Hz, 2.7 kHz
Amplifier Power Recommendation	40 to 140 Watts
Tweeter	1-inch soft dome
