Basic Inputs
This UltraMatrix switch can accommodate
most common audio / video wired signals.
HDMI (1) – The UltraMatrix switcher can separate digital audio imbedded
in the HDMI connection and route it to both analog and digital zone out-
puts. HDMI sources are connected to one of the HDMI Input connectors.
When the source is configured for 2-ch audio output the
UltraMatrix switcher will route the signal to both digital and analog
outputs. Multi-channel signals cannot be routed to analog outputs.
If both multi-channel and 2-ch signals are required the source must
be bi-wired and both connections configured as unique sources in
g! Configurator.
Analog (2) – Analog inputs on the UltraMatrix switchers are used in pairs.
If you have a mono source make sure to connect it to both the left and right
inputs. Analog inputs may be routed to any analog or digital output. When
paging/door chime are enabled in the ELAN g!Configuration Software for
distribution over the whole house audio speakers analog input 16 used.
Optical SPDIF (7) – Digital inputs are available for routing to both analog
and digital outputs.
When paging/door chime are enabled in the ELAN g!Configuration Soft-
ware for distribution over the whole house audio speakers analog input
16 used.
Coaxial SPDIF (11) – Digital inputs are available for routing to both
analog and digital outputs.
It is generally preferred that Audio Only sources are connected digitally
as digital signals present no compromises to signal routing. Connected
digital sources should be configured for 2 CH PCM output to assure full
compatibility.
TCP/IP
RS-232
SW-1 DB-1 DB-1 V+ V+ DB-2
DB-2 SW-2
UPDATE ONLY
MAIN POWER
gMV88
1 2 3
4 5 6
7 8
VIDEO INPUTS
AUDIO INPUTS
1
9
1
9
2
2
3
11
3
11
4
12
4
12
5
13
5
13
6
14
6
14
7
15
7
15
8
16
8
16
AUDIO OUTPUTS
17 18 19 25 26 27 28 29 31
21 22 23 24
33 34 35 36 37 38 39
17 18 19
21 22 23
25 26 27 28 29
31
ARP41 ARP42 ARP43 ARP44 ARP45 ARP46
ETHERNET
RS-232
HDMI
HDBASET
IR IN
IR
OUT
This device com plies with par t 15 of the FCC Rules.
Operation is subject to the following t wo conditions:
(1) this device may not cau se harmful interference and
(2) this device must accept any interference received,
including interfer ence that may cause undesired operation .
CAN ICES-3 (B)/ NMB-3(B)
©2015 Core Brands, LLC, Petaluma CA. Made in the USA.

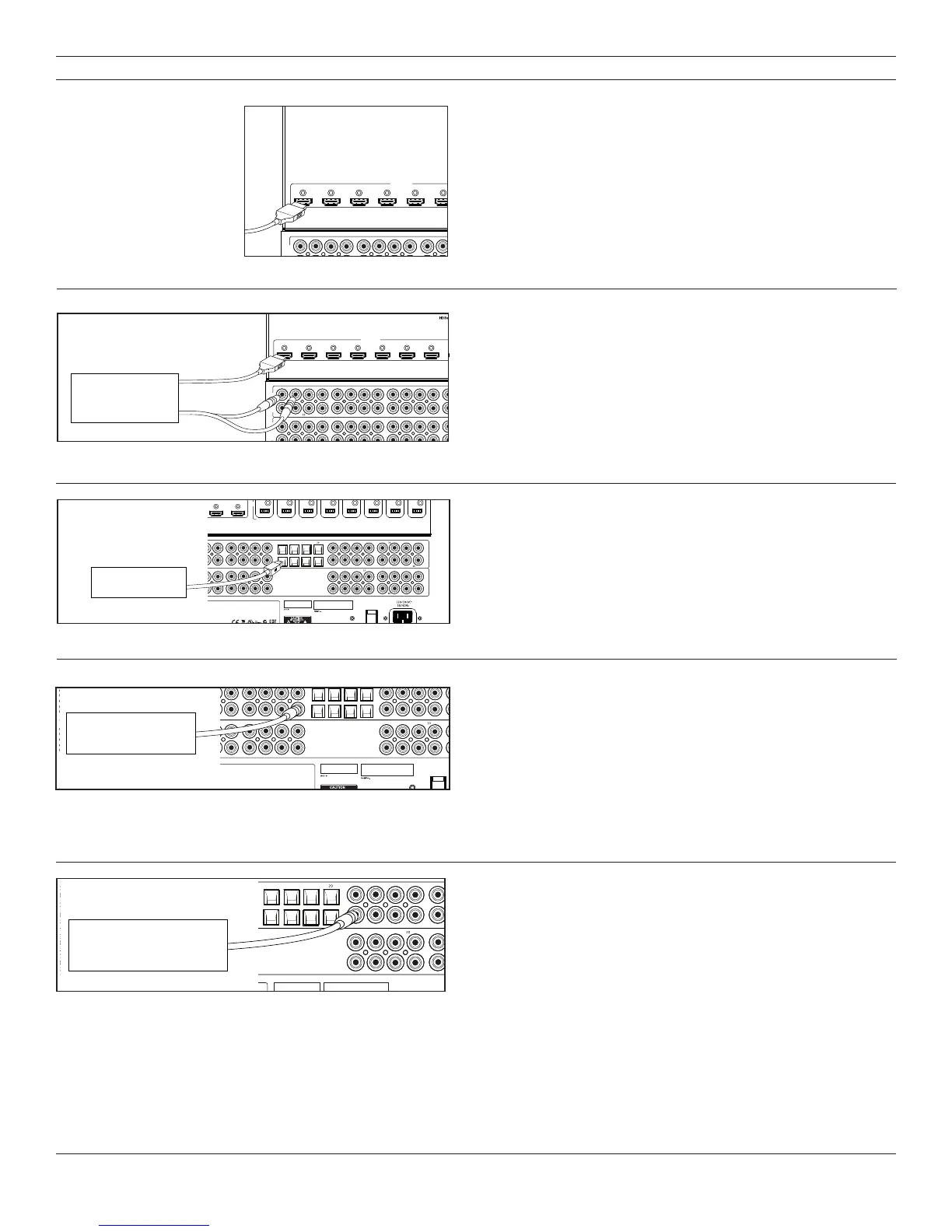

Figure 1 X3 HDMI Connection
