ELAN gMV88INSTALLATION MANUAL
© ELAN 2015 All rights reserved. Page 8

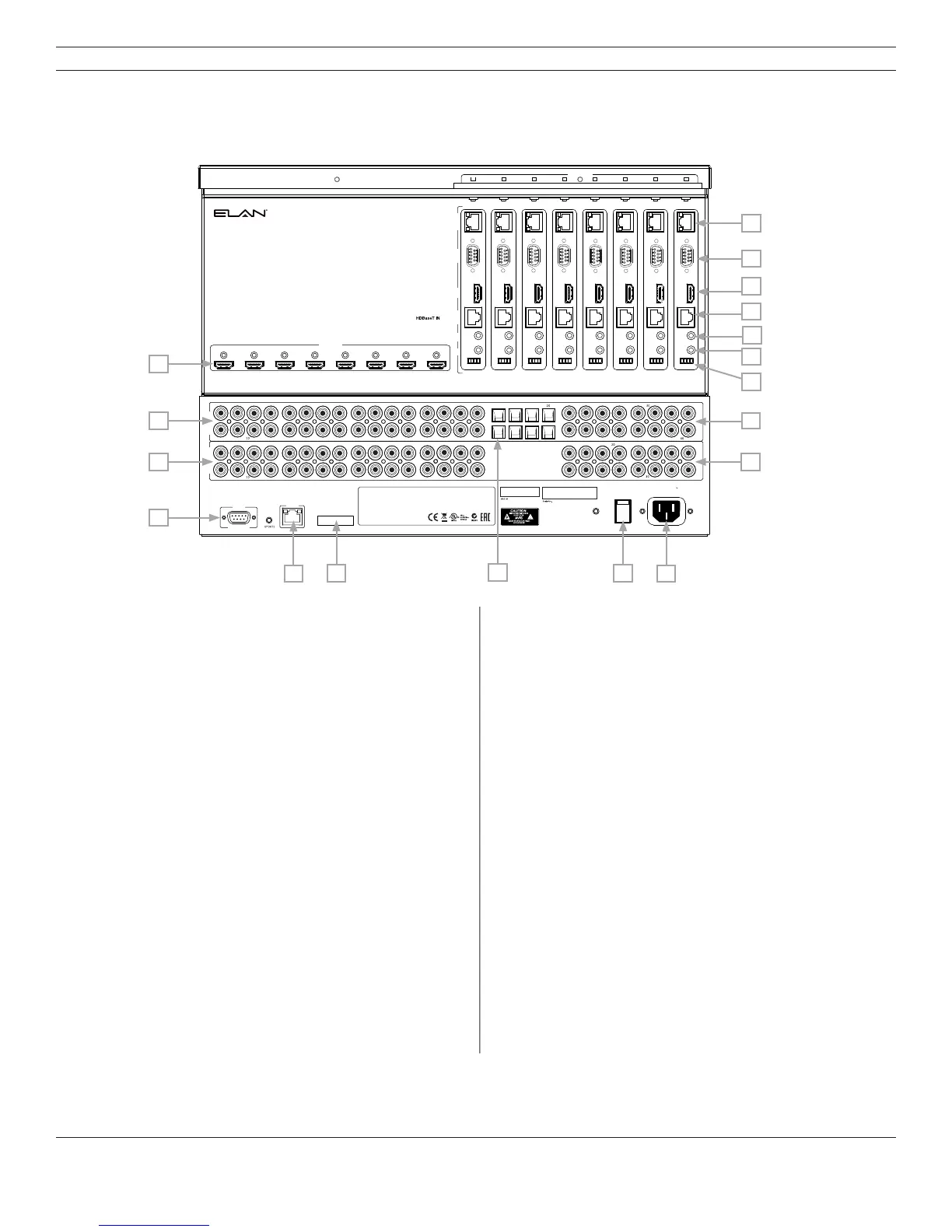

gMV88 Rear Panel Connections
Item Function See Page
1 HDMI Input (typ. of 8) 9
HDMI source inputs
2 Analog Audio Input (typ. of 16) 9
Stereo analog source inputs
3 Analog Zone Audio Output (typ. of 16) 10
Connect to system amplifier. Outputs may be
configured as fixed or variable.
4 RS-232 12
Control and update connection
5 TCP/IP 12
Control connection
6 Control connection 12
Contact trigger inputs – For Future Use
7 Optical SPDIF Input (typ. of 8) 9
Optical digital source inputs
8 Main Power Switch 12
Master power disconnect for chassis
9 IEC Power Cord Connection 12
Connect IEC standard power cords 120v-240v
Item Function See Page
10 Coaxial SPDIF Output (typ. of 16) 10
Coaxial digital source output
11 Coaxial SPDIF Input (typ. of 16) 9
Coaxial digital source inputs
12 HDBaseT output status (typ. of 8) 17
Provides visual feedback of HDBaseT output status
13 IR In (typ. of 8) 11
Zone specific IR input
14 IR Output (typ. of 8) 11
Zone specific IR return
15 HDBaseT Output (typ. of 8) 11
HDBaseT zone output – mirrors HDMI
Returns ARP signal
16 HDMI Output (typ. of 8) 10
HDMI zone output – mirrors HDBaseT
17 Serial Connection (typ. of 8) 11
Zone specific RS-232 serial connection
18 Ethernt (typ. of 8) 11
Zone specific IR return
TCP/IP
RS-232
SW-1
DB-1
DB-1
V+
V+
DB-2
DB-2
SW-2
UPDATE ONLY
MAIN POWER
gMV88
1 2 3
4 5 6 7 8
VIDEO INPUTS
AUDIO INPUTS
1
9
1
9
2
2
3
11
3
11
4
12
4
12
5
13
5
13
6
14
6
14
7
15
7
15
8
16
8
16
AUDIO OUTPUTS
17 18 19 25 26 27 28 29 31 32
21 22 23 24
33 34 35 36 37 38 39
17 18 19 21 22 23 24
25 26 27 28 29
31 32
ARP41
ARP42
ARP43
ARP44
ARP45
ARP46
ARP47
ARP48
ETHERNET
RS-232
HDMI
HDBASET
IR
IN
IR
OUT
1 2 3 4 5 6 7 8
VIDEO OUTPUTS
This de vice com plies wit h part 15 o f the FCC Rules.
Operati on is sub ject to the fo llowing two conditio ns:
(1) this d evice may n ot cause h armful interference and
(2) this d evice must accept any interference received ,
includi ng interfere nce that may cause undes ired operati on.
CAN ICES-3 ( B)/NMB-3( B)
©201 5 Core Brands, LLC, Petaluma CA. Made in the USA.
120 / 240V
50 / 60Hz / 3A
16
18
1
13
17
4
2
5
6
3
14
15
7
12
11
9
8
10
