Elan gMV88 User Manual

© ELAN 2015 All rights reserved. Page 10
Basic Outputs
HDBaseT (15) – HDBaseT outputs combine HDMI, digital audio,
bi-directional serial, bi-directional IR, 10/100 Ethernet and ARP signals
along with voltage to power the HDRE onto a single Cat5e/6/7 wire.
The HDBaseT standard allows wiring lengths up to 100m (328’), although
the use of ARP reduces the maximum wire length by 15m (50’).
Terminate wiring with T568B RJ45 connectors rated for the type
of wiring you have run. Test all terminations prior to connecting to
the UltraMatrix switcher.
HDMI (16) – The UltraMatrix switcher features mirrored HDMI and HDBa-
seT outputs. Advanced EDID management allows both of these outputs to
be active at the same time. Connect the HDMI output to a monitor using
appropriate quality HDMI cables.
NOTE: When connecting displays to both the HDMI and HDBaseT outputs
the audio EDID information will always be read from the device connected
to the HDMI output and the video EDID information will always be read
from the device connected to the HDBaseT receiver HDMI output.
Analog* (3) – Analog outputs are connected to amplifiers and may be
configured as stereo, dual mono, dual left channel or dual right chanel.
They may be grouped in various configurations (see Zone Grouping
Options on page 15)
Coaxial SPDIF* † (10) – Digital outputs generally connect to surround
sound receivers.
* Only 2-ch PCM digital audio signals may be routed to the analog
outputs. Multi-channel digital signals cannot be converted for use
on analog outputs. Multi-channel digital audio signals may be routed
without compromise to digital and HDMI outputs.
ELAN
gMV88 INSTALLATION MANUAL
TCP/IP
RS-232
SW-1 DB-1 DB-1 V+ V+ DB-2
DB-2 SW-2
gMV88
1 2 3
4 5 6 7 8
VIDEO INPUTS
AUDIO INPUTS
1
9
1
9
2
2
3
11
3
11
4
12
4
12
5
13
5
13
6
14
6
14
7
15
7
15
8
16
8
16
AUDIO OUTPUTS
17 18
19
21 22
23
ARP41 ARP42
ETHERNET
RS-232
HDMI
HDBASET
IR IN
IR
OUT
This device compl ies with part 15 of the FCC Rules.
Operation is subject to the fo llowing two condition s:
(1) this device may not cause ha rmful interference and
(2) this device must accept any interference r eceived,
including interference that may cause undesired operation.
©2015 C ore Brands, LLC, Petaluma CA. Made in the USA.
PROJECTOR
FIGURE 1-X 9
HDRE

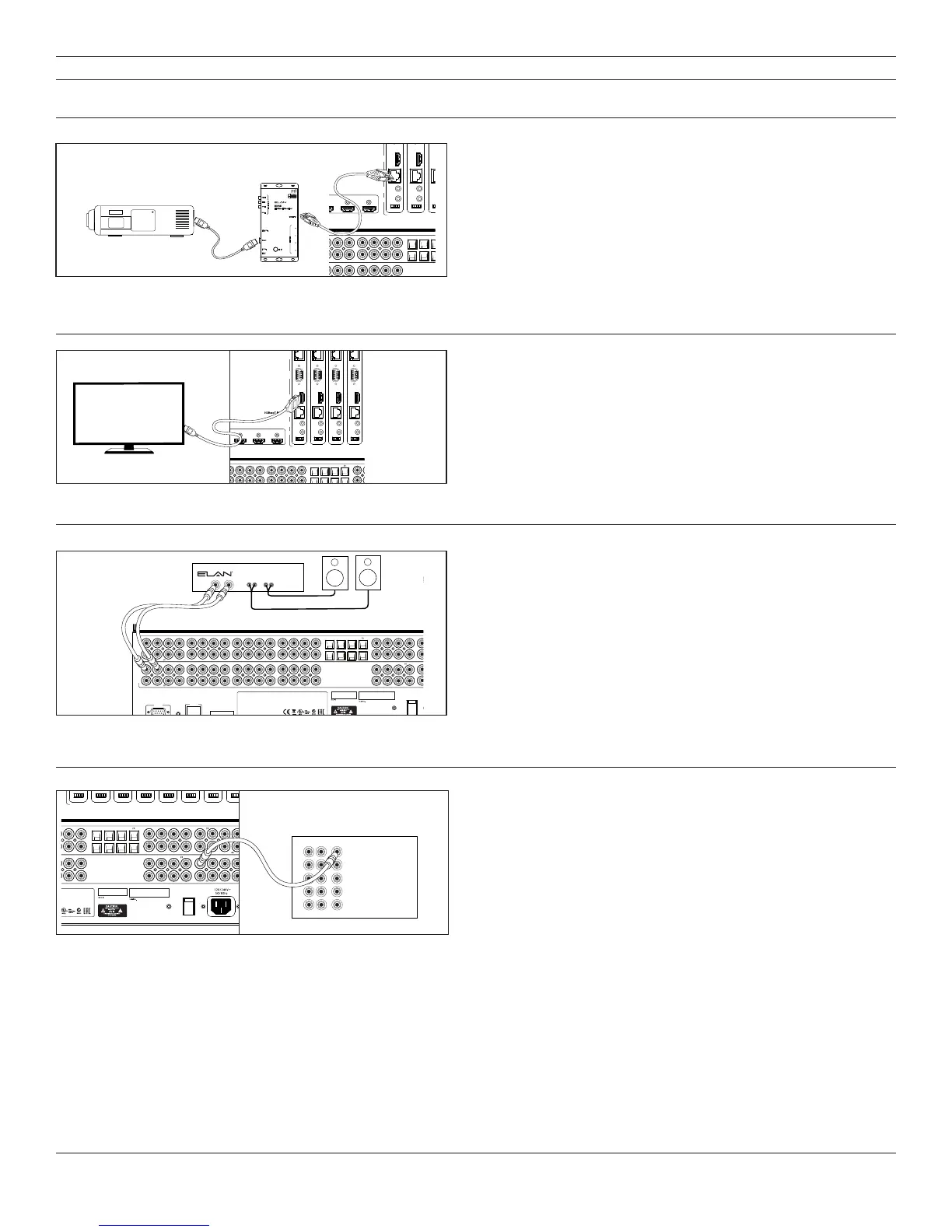

Figure 1-X9 Connecting an HDBaseT output
Figure 1 X10 Connecting an HDMI output
gMV88
1 2 3
4 5 6 7 8
VIDEO INPUTS
AUDIO INPUTS
1
9
1
2
2
3
11
3
4
12
4
5
13
5
6
14
6
7
15
7
8
16
8
AUDIO OUTPUTS
17 18 19 25
26
21 22 23 24
33 34
17 18
ARP41 ARP42 ARP43
ARP44
ETHERNET
RS-232
HDMI
HDBASET
IR IN
IR
OUT
1 2 3 4
VIDEO OUTPUTS
FIGURE 1-X10
TV
Figure 1 X11 Connecting an Analog Audio Zone Output
MAIN POWER
8
16
8
16
17 18 19 25 26 27 28 29
31 32
21 22 23 24
33 34 35 36 37 38 39
17 18 19 21 22 23 24
25 26 27 28 29
31 32
ARP41 ARP42 ARP43 ARP44 ARP45 ARP46 ARP47 ARP48
RS-232
HDMI
HDBASET
IR IN
IR
OUT
©2015 C ore Brands, LLC, Petaluma CA. Made in the USA
.
FIGURE 1-X12
AVR
DVD
DVR
LD
MD
CD
L R DIGITAL
Figure 1 X12 Connecting an Analog Audio Zone Output
TCP/IP
RS-232
SW-1 DB-1 DB-1 V+ V+ DB-2
DB-2 SW-2
UPDATE ONLY
MAIN POWER
1 2 3
4 5 6 7 8
VIDEO INPUTS
AUDIO INPUTS
1
9
1
9
2
2
3
11
3
11
4
12
4
12
5
13
5
13
6
14
6
14
7
15
7
15
8
16
8
16
AUDIO OUTPUTS
17 18 19 25 26 27 28 29
21 22 23 24
33 34 35 36 37
17 18 19
21
25 26 27 28 29
ARP41 ARP42 ARP43 ARP44 ARP45
ARP46
RS-232
HDMI
HDBASET
IR IN
IR
OUT
This device compli es with part 15 of the FCC Rules.
Operation is subject to the fo llowing two condition s:
(1) this device may not cause ha rmful interference and
(2) this device must accept any interference receiv ed,
including interference that may cause undesired operation.
CAN ICES-3 (B)/NMB-3 (B)
©2015 C ore Brands, LLC, Petaluma CA. Made in the USA.
AMPLIFIER
