13 PLATINUM FLX™ User Manual
LAMP INSTALLATION PROCEDURE - [continued]

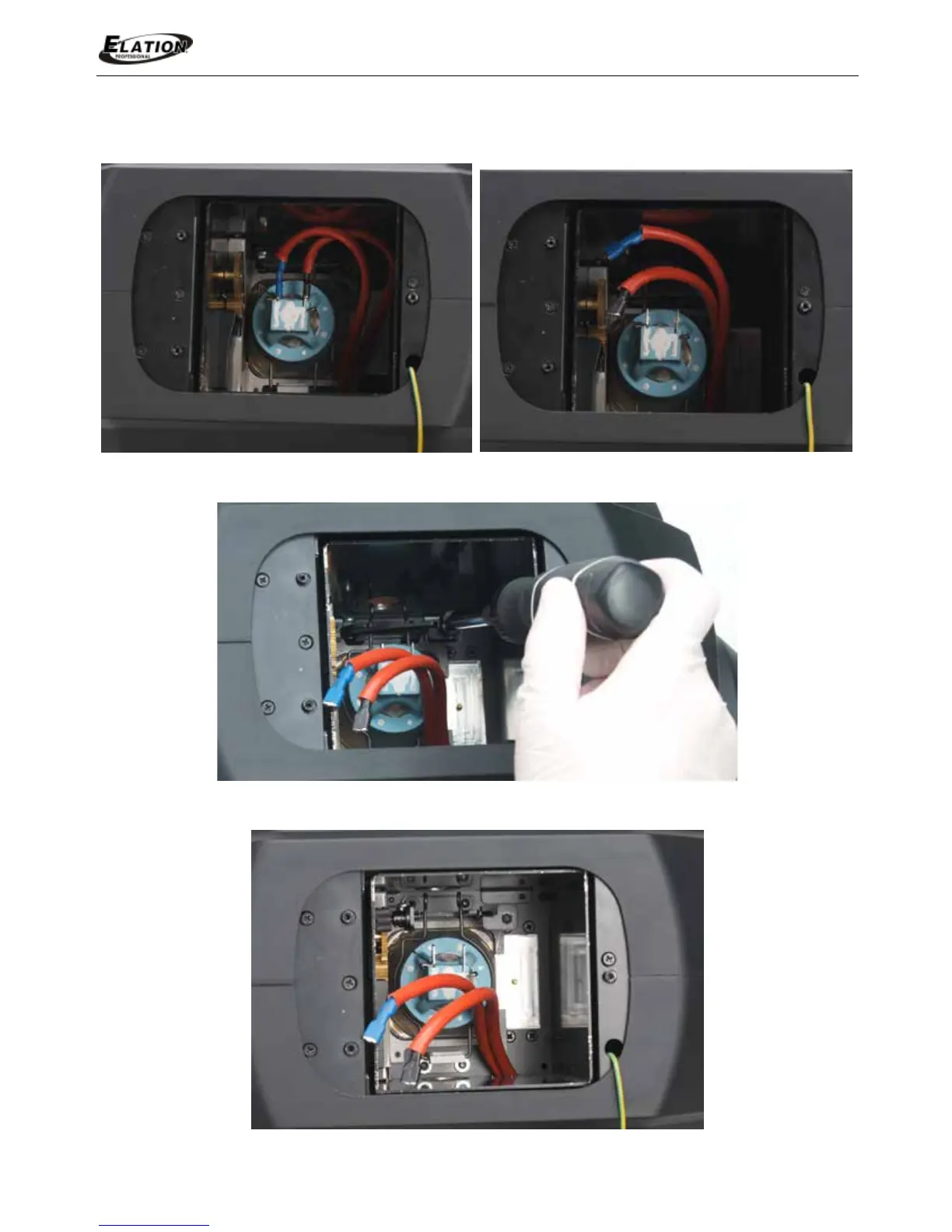

2. Gently remove (2) Wires connected to spade terminals on lamp. (See below)
3. Loosen main retaining screw by turning counterclockwise. (See below)
4. Pull retaining bracket towards you and to the left side. (See below)
