Fig. 4.2
Fig. 4.3

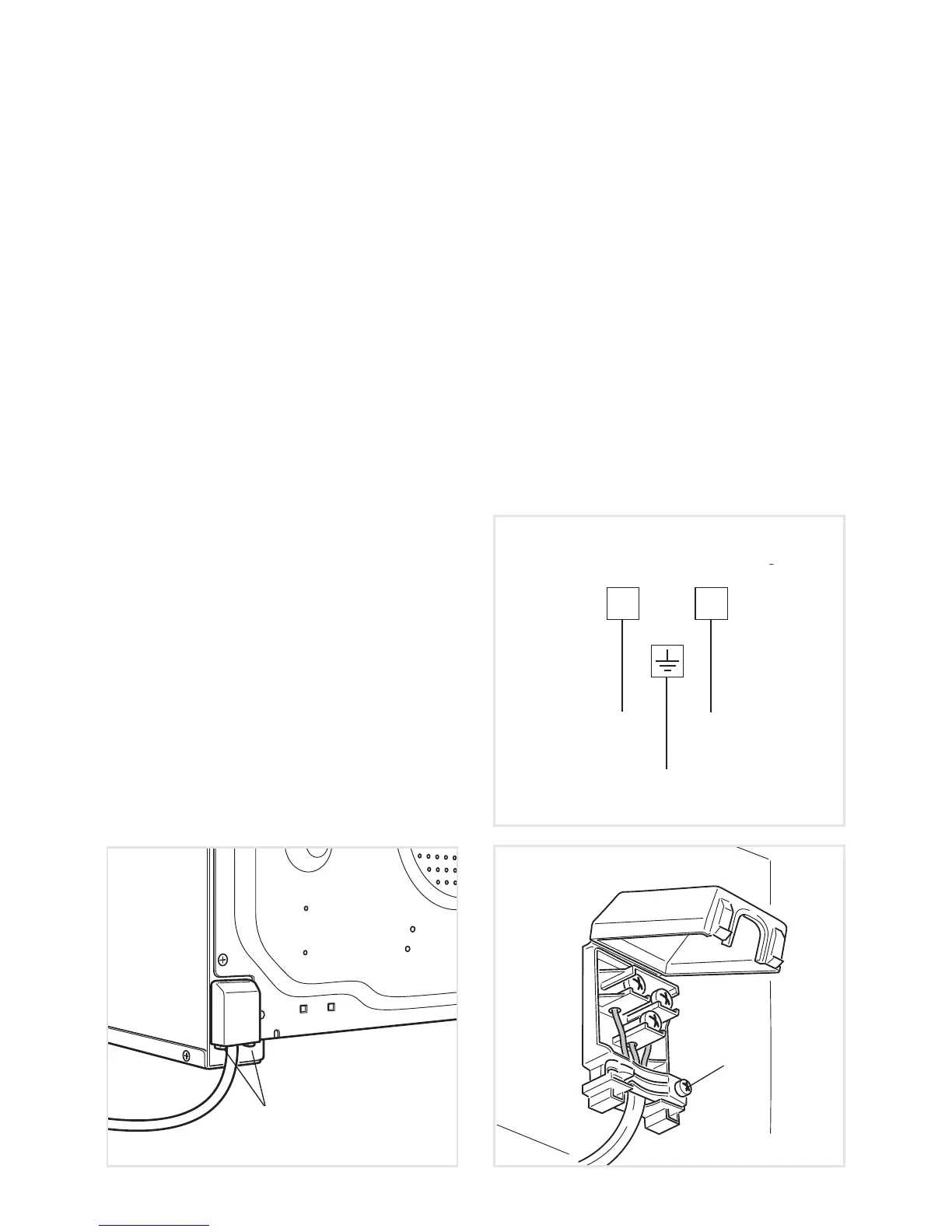

REPLACING THE POWER SUPPLY CABLE
WARNING: If the power supply cable is damaged, it must be replaced only by an
authorised service agent in order to avoid a hazard.
To connect the supply cable:
• Unhook the terminal board cover by inserting a screwdriver into the two hooks “A” (g.
4.2).
• Open the cable gland by unscrewing screw “F” (g. 4.3), unscrew the terminal screws
and remove the cable.
• The new supply cable, of suitable type and section, must be connected to the terminal
board following the diagram in g. 4.1.
• Close and hook again the terminal board cover.
NOTE: The earth conductor must be left about 3 cm longer than the others.
FEEDER CABLE SPECIFICATIONS
220-240V ac
AWG 14/3
(*) (**)
or
220-240V ac
Type H05RR-F 3 x 1,5 mm
2
(*) (**)
(*) Connection possible with plug and outlet
(**) Connection with wall box connection
E
N (L2)
L
1
220-240 V ac
Fig. 4.1
