10

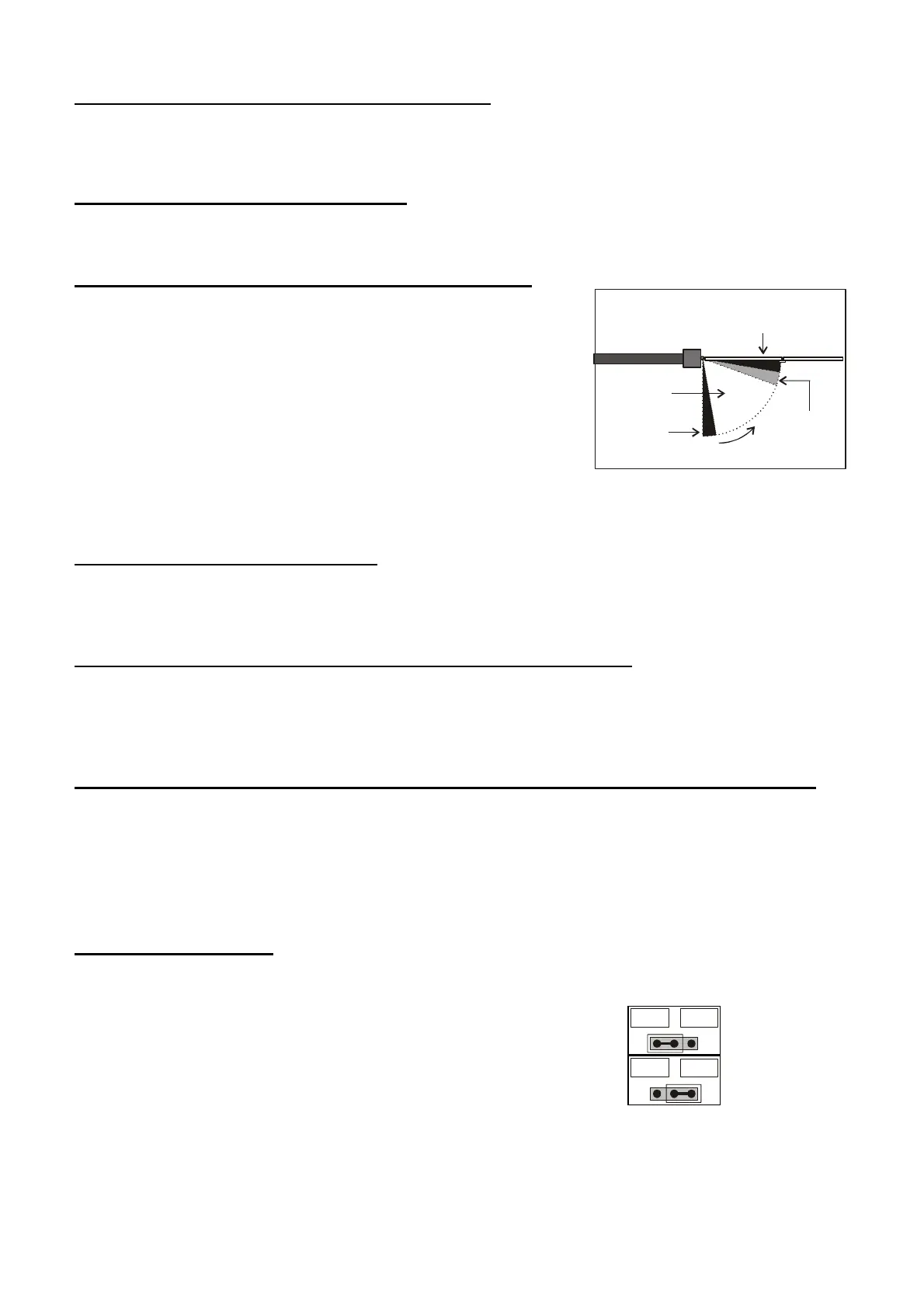

<N> NO ELECTRIC-LOCK COMMAND DIP B1
-- set and leave the DIP B1 in ON position
<O> NO DELAY IN CLOSING DIP B3
set and leave the DIP B3 in ON position, in this way booth gates close at the same time
<P> LOCKING FOR WIND + SECURE LOCK DIP B5
Note : this function can be activated only if the dip B1 is in OFF
position
-- set and leave the DIP B5 in ON position
When activated the motors make a short movement in
closing before start to open, in this way is more easy to
unlock the electric-lock even with bad wind condition
- !!! Pay attention on program motor n 2 in closing phase, after 3
seconds that the impulse for slowing down has been given the
motor n 2 automatically will start at max force to thrust and close
the electric-lock
Motor2
Slowing
down
3 sec
Max
force
Normal
speed
Max
force
<Q> OPEN GATE SIGNAL DIP B6
-- set and leave the DIP B6 in ON position, on terminals n 24-25 you have a closing contact until the
gate is opening.
<R> COURTESY LAMP CONTACT TIME = 2 SECONDS DIP B7
-- set and leave the DIP B7 in ON position , this may be useful if you want to command a lamp on a
network
<S> MOTOR SOFT START WHEN THE GATE IS NEAR THE PHYSICAL STOP DIP B9
note the dip B4 must be OFF
set and leave the DIP B9 in ON position, in this way the start up is eliminate ( 1,5 sec max force
and the gate does not make vibration when touch the physical stop
it is important to set the trimmer FRENO for the right speed
.
<T> INTERCOM INPUT
It is possible to feed 12vac on terminals n 3-4 , this give a command start SS or SS2 depend of the
jumper setting
If jumper CAR is insert Start/Stop.command will be execute
CAR
PED
If jumper PED is insert WALK-WAY SS2 command will be execute
CAR
PED
