ELCA Eclipce 2 - Pause Time Programming

7

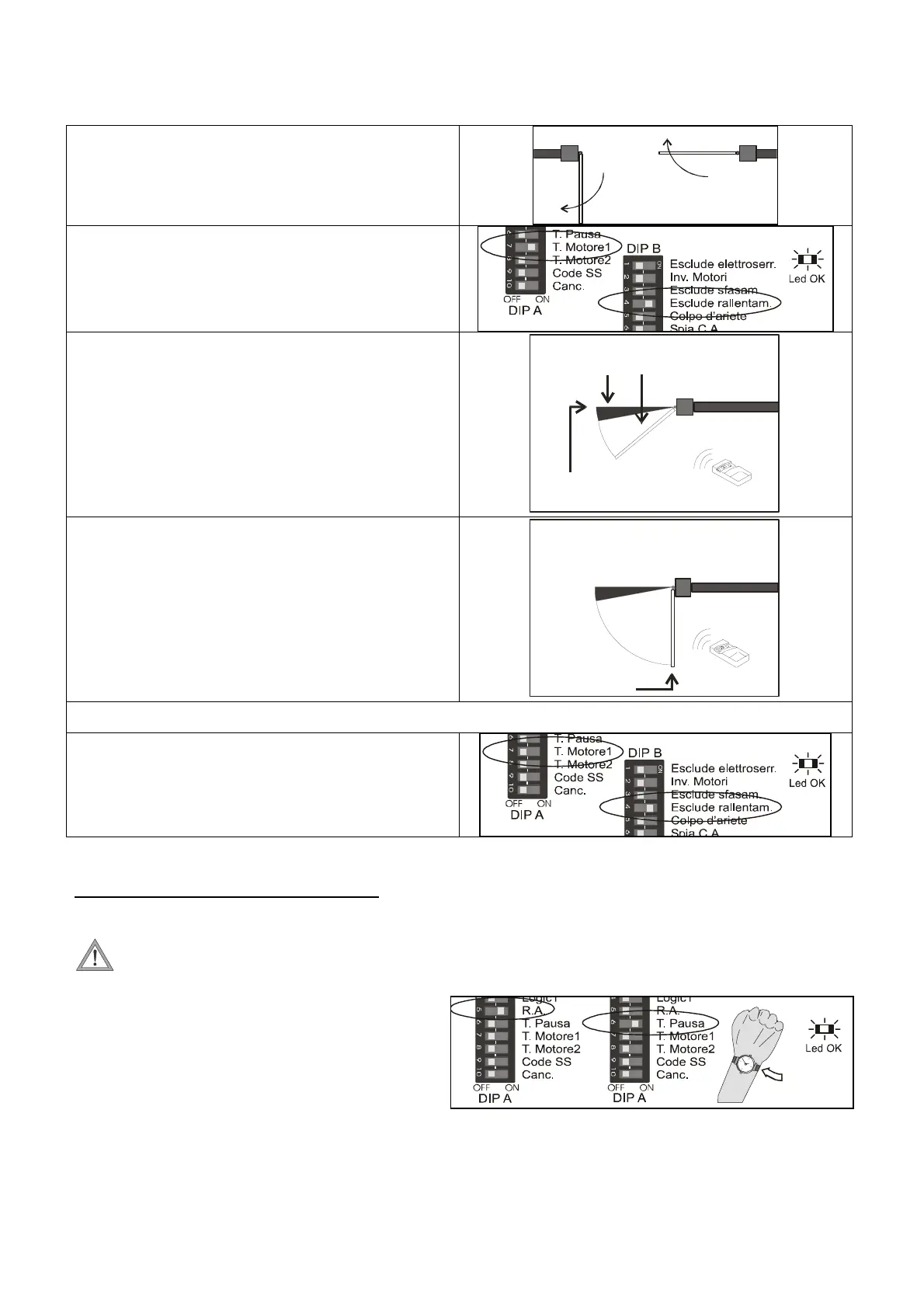

- time Motor n°1 -
C7. place the gate n 2 open and the gate n 1
to close position.
Turn OFF the power.
Turn ON the power
Gate to
program
Motor2 Motor1
C8. set the DIP A7 in ON position, the led OK
goes on.
7
4
Fixed
ON
C9. send a command with transmitter or by
start push button, if the motor does not
move in opening the phase inversion
<G> must be done.
Motor 1
Give the 1s t impul se
to sta rt the motor
Max f orce
for 1,5 sec
Norm al
spe ed
C10. after 2 seconds that the gate is
completely opened send a second
command for stopping.
Mo tor1
After 2 sec give
the 2nd impulse
to stop the motor
C11. repeat steps C9, C10 for closing time programming.
C12. set the DIP A7 in OFF position, the led
OK goes off.
7
4
OFF
<E> PAUSE TIME PROGRAMMING
NOTE : to enable pause time set and leave the DIP A5 in ON position.
ATTENTION: before start with pause time program check that the DIP B3 is in OFF position.
E1. set the DIP A6 in ON position, the led
OK goes on, leaving for as long as
pause is required ( from 1 second up 20
minutes )
E2. set the DIP A6 in OFF position the led
OK goes off.
Fixed
ON
6
5
.
E1
