8

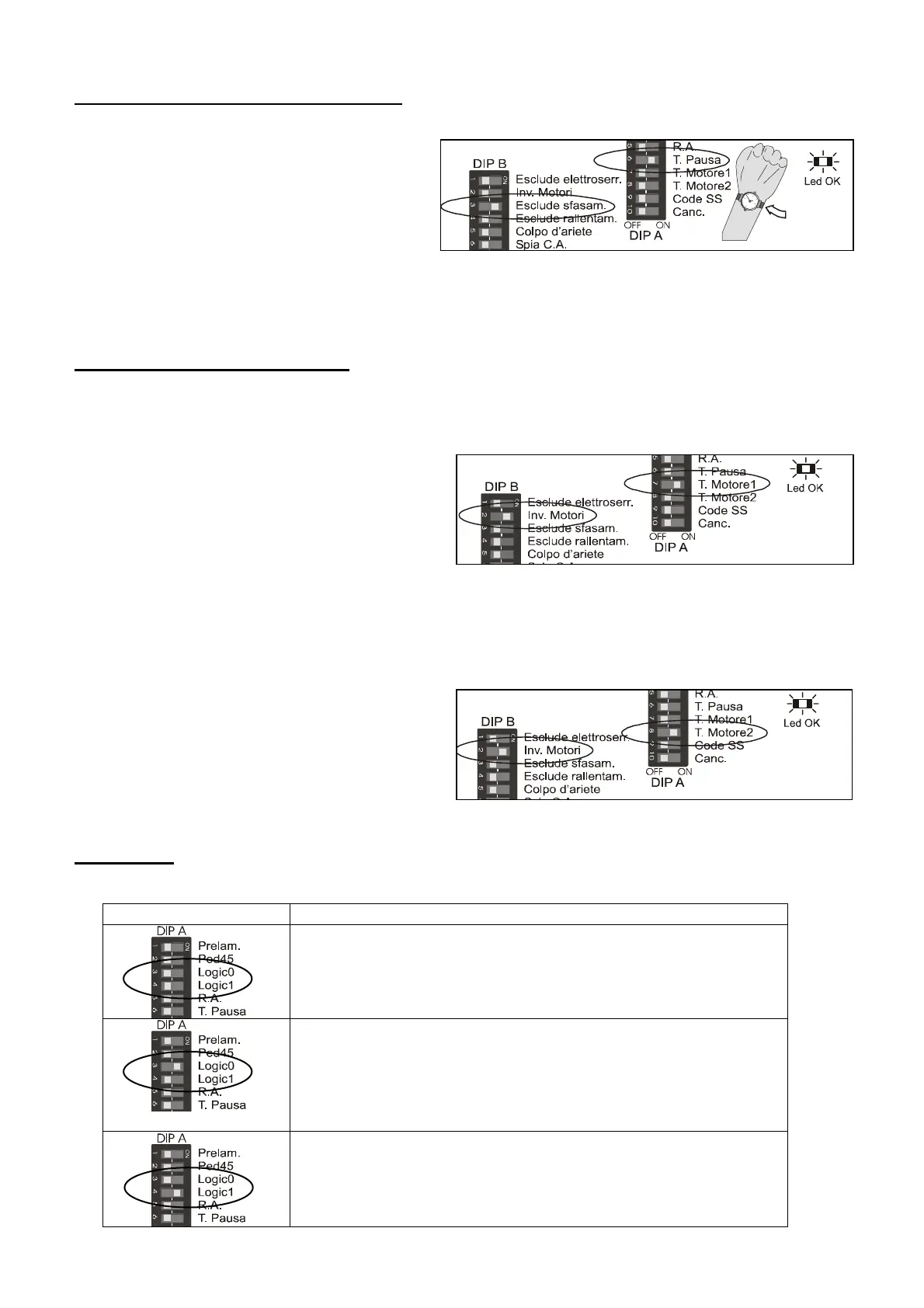

<F> CHANGE DELAY CLOSING TIME
F1. set the DIP B3 in ON. position
F2. set the DIP A6 in ON position, the led
OK goes on, leaving for the time
required, then set it in OFF position.
F3. set the DIP B3.in OFF position
NOTE: if the dip B3 is leave in ON position
the time delay is = 0 second that mean
booth motor start in closing at the same
time
3
6
Fixed
ON
F1 F2
<G> REVERSE MOTOR PHASE
 this function automatically change the phase motor, in this way does not need to change the
motor wire connections
Reverse phase motor n 1
G1. set the DIP B2.in ON position
G2. set the DIP A7 in ON position, the led
OK make a flash to indicate that the
reverse is done
G3. set the dips A7 and B2 in OFF position,
the led OK goes off.
1 fash
then fixed
ON
2
7
2
G1 G2
Riverse phase motor n 2
G4. set the DIP B2.in ON position
G5. set the dip A8 in ON position, the led
OK make a flash to indicate that the
reverse is done.
G6. set the dips A8 and B2 in OFF position,
the led OK goes off.
1 flash
then fixed
ON
8
2
G4 G5
<H> LOGIC
--- set and leave the dips A3 and A4 as you need.
DIP A Logic
3
4
Logic step by step
The first command open, the second make a stop, the
third start closing and so on…..
3
4
No step by step logic
One command open, during the open other command
does not make effect, during the closure one command
invert to open.
3
4
Immediate close after cross photocell n1 and n 2.
