6
B14. set the DIP A7 in OFF position the led
OK goes off.
7
4
OFF
NOTE : you can make several movement in opening and in closing, only the last will be memorized !!!!.

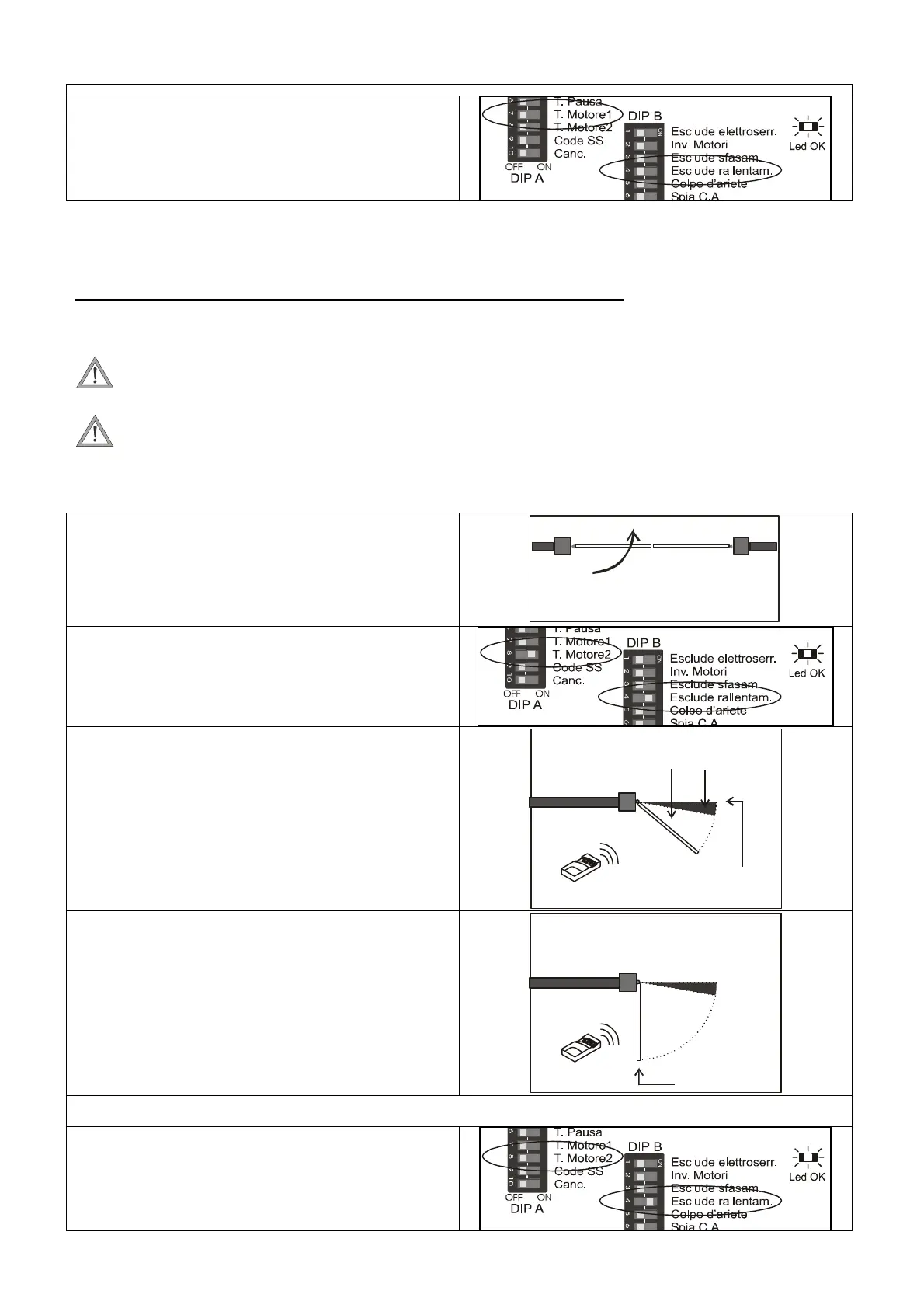

<C>MOTORS TIME PROGRAMMING WITHOUT SLOWING DOWN.
-- set and leave the DIP B4 in ON position.
-- set the trimmer Forza to +” .
ATTENTION: for a correct function it is necessary that the gate have a physical stop in opening
and in closing.
ATTENTION: if you have only one motor you have to connect has motor n 2 ,terminals
n 29-30-31,and you must set the DIP B3 in ON position.
- time Motor n°2 -
C1. place the gate n 2 in closing position
Turn OFF the power.
Turn ON the power.
Gate to
program
Motor2 Motor1
C2. set the DIP A8 in ON position, the led OK
goes on
8
4
Fixed
ON
C3. send a command with transmitter or by
start push button, if the motor does not
move in opening the phase inversion <G>
must be done.
Motor2
Give the 1st impulse
to start the motor
Max force
for 1,5 sec
Normal
speed
C4. after 2 seconds that the gate is
completely opened send a second
command for stopping.
Motor2
fter 2 sec give
the 2nd impulse
to stop the motor
C5. repeat steps C3, C4 for closing time programming
C6. set the DIP A8 in OFF position, the led
OK goes off.
8
4
OFF
