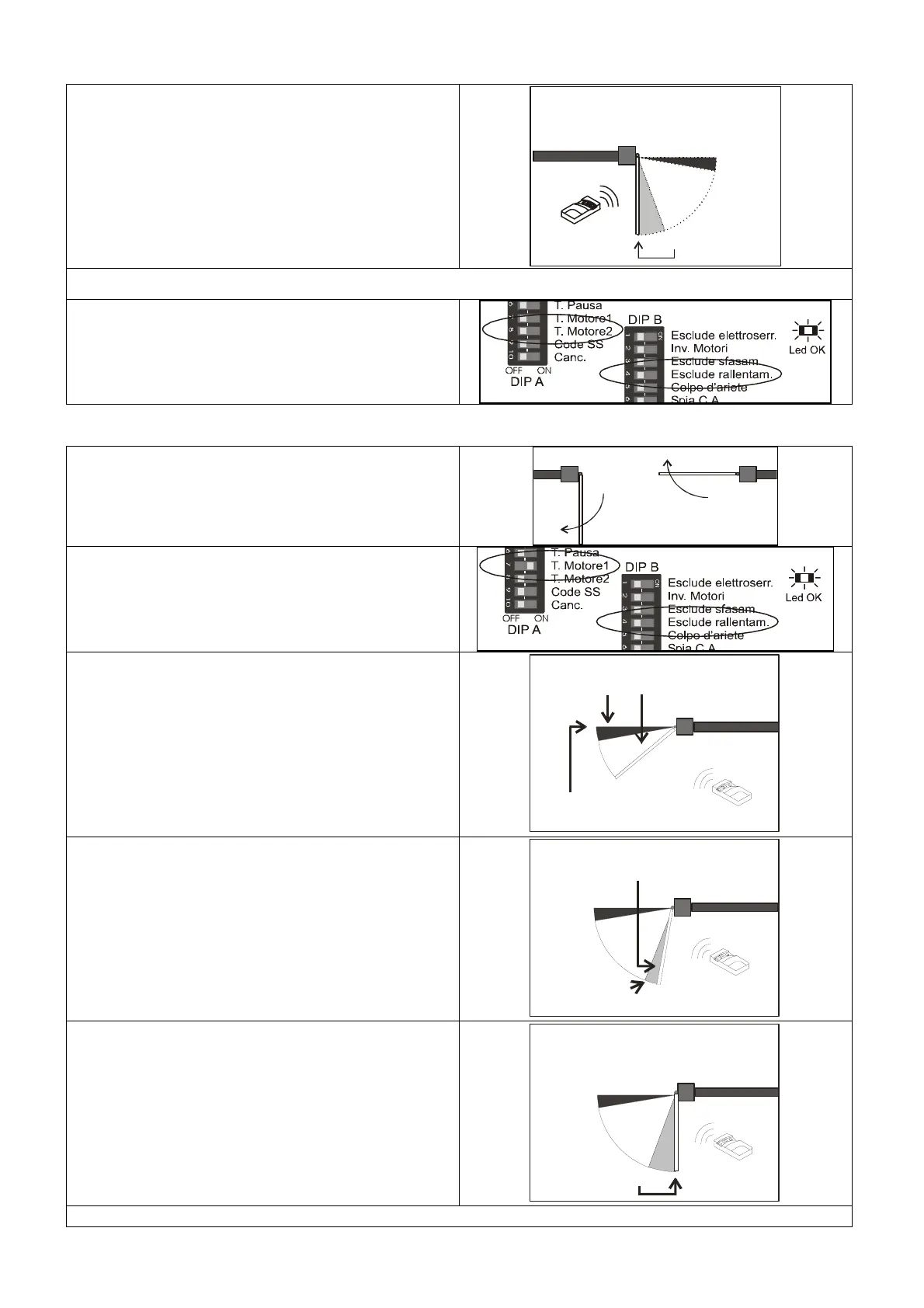

B5. After 2 seconds that the gate is
completely opened send a third command
for stopping.
Motor2
fter 2 sec give
the 3th impulse
to stop the motor
B6. repeat steps B3, B4, B5 for closing time programming.
B7. set the DIP A8 in OFF position ,the led
OK goes off.
8
4
OFF
- Time motor n 1 -
B8. by hand close the swing n 1, leave swing
n 2 open
Turn OFF the power.
Turn ON the power.
Gate to
program
Motor2 Motor1
B9. set the DIP A7 in ON position ,the led
OK goes on.
7
4
Fixed
ON
B10. send a command with transmitter or by
start push button, if the motor does not
move in opening the phase inversion <G>
must be done
Motor 1
Give the 1s t impul se
to sta rt the motor
Max f orce
for 1,5 sec
No rm a
speed
B11. when slowing down is required send a
second command at this point the motor
move at the speed set by the trimmer
FRENO.
Mo tor1
Give the 2nd
impulse t o
start slowing
down
Slowing
down
B12. after 2 seconds that the gate is
completely opened send a third command
for stopping.
Mot or1
After 2 sec give
the 3th impu lse
to stop the motor
B13. repeat steps B10, B11, B12 for closing time programming.
