4
Code Stop

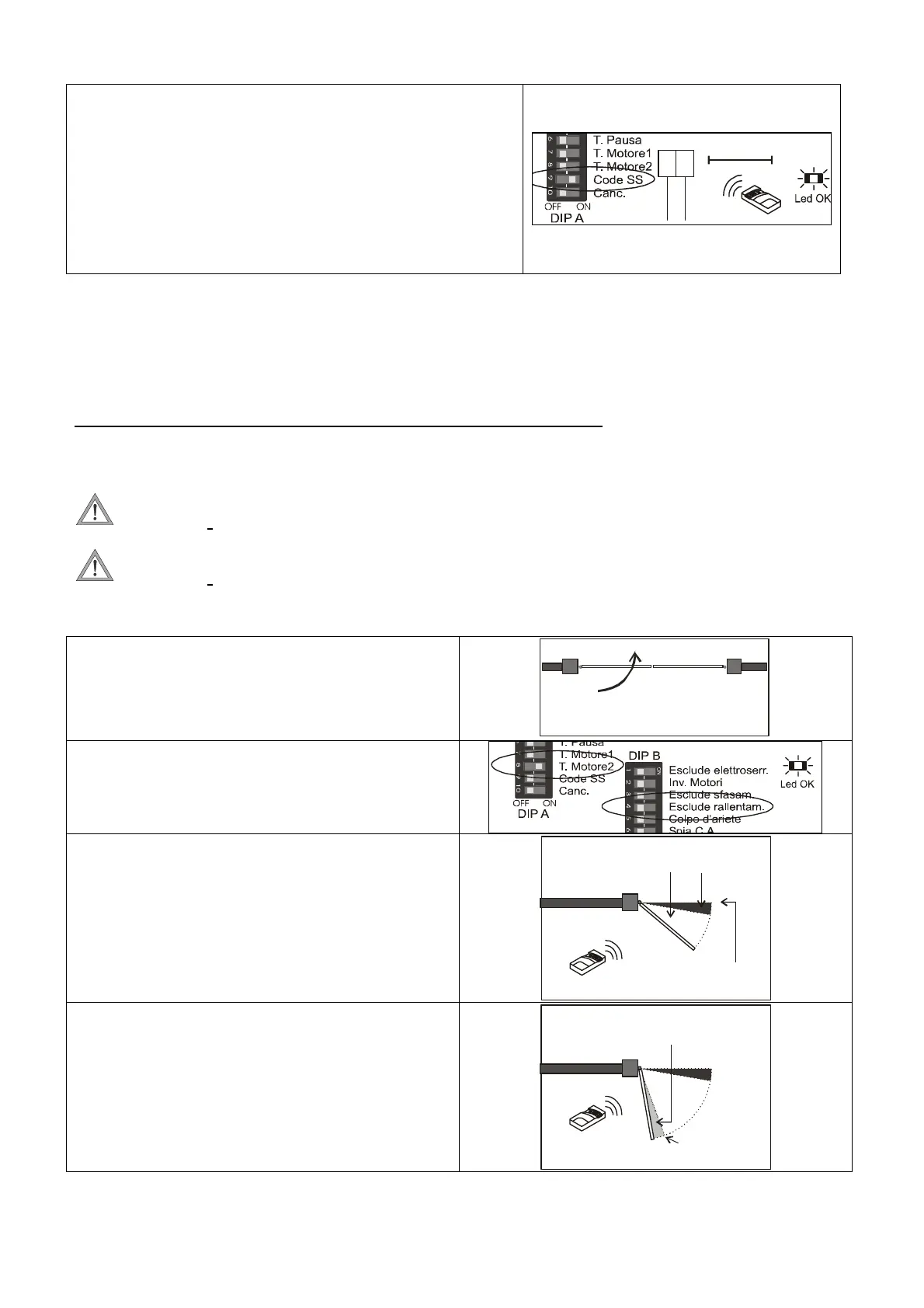

A10. set the DIP A9 in ON position and open the contact
between terminals n 13-14.
A11. send a code with transmitter as step A2
A12. set the dip A9 in OFF position and close the contact
on terminals n 13-14.
14 13
Com
Stop
60 cm
1 Flash
9
A13. Code Open: Set the DIP A9 in ON position and close the contact between terminals n 8 – 5. Send a code
with transmitter. Set the dip A9 in OFF position and open the contact on terminals n 8 - 5.
A14. Code Close: Set the DIP A9 in ON position and close the contact between terminals n 9 – 10. Send a code
with transmitter. Set the dip A9 in OFF position and open the contact on terminals n 9 - 10.
!!!! TO ERASE A CODE SEE STEP - I -.
<B> MOTORS TIMING PROGRAMMING ,WITH SLOW-DOWN
-- set and leave the DIP B4 in OFF position.
-- set the trimmer Forza to “+”.
-- set the trimmer Freno to mid range.
ATTENTION: for a correct function it is necessary that the gate have a physical stop in opening
and in closing
ATTENTION: if YOU HAVE ONLY ONE MOTOR YOU MUST CONNECT AS MOTOR N 2
(terminals n 29-30-31 ) AND YOU MUST SET AND LEAVE THE DIP B3 in ON.position.
- Time motor n°2 -
B1. by hand close swing n 2.
Turn OFF the power.
Turn ON the power
Gate to
program
Motor2 Motor1
B2. set the DIP A8 in ON position, the led OK
goes on.
8
4
Fixed
on
B3. send a command with transmitter or by start
push button, if the motor does not move in
opening the phase inversion <G> must be
done.
Motor2
Give the 1st impulse
to start the motor
Max force
for 1,5 sec
Normal
speed
B4. when slowing down is required send a second
command at this point the motor move at the
speed set by the trimmer FRENO.
Motor2
Give the 2nd
impulse to
start slowing
down
Slowing
down
