>>>> AT ANY TIME YOU CAN FETCH THE BASIC PROGRAM BY THE RESET FUNCTION <<<<
.
RESET
• Turn OFF the power.
• Set the dips A7, A8, A10.in ON position
• Turn ON the power, the led OK goes ON
,then start to flashing, the reset is finish
• Set the dips A7, A8, A10 in OFF position,
the led OK goes off
On during
RESET
Flashing
at the end
7
8
10
RESET
- ATTENTION !!! – during normal function the dips: A6, A7, A8, A9, A10, B2, B8, B10, MUST
BE IN OFF POSITION.

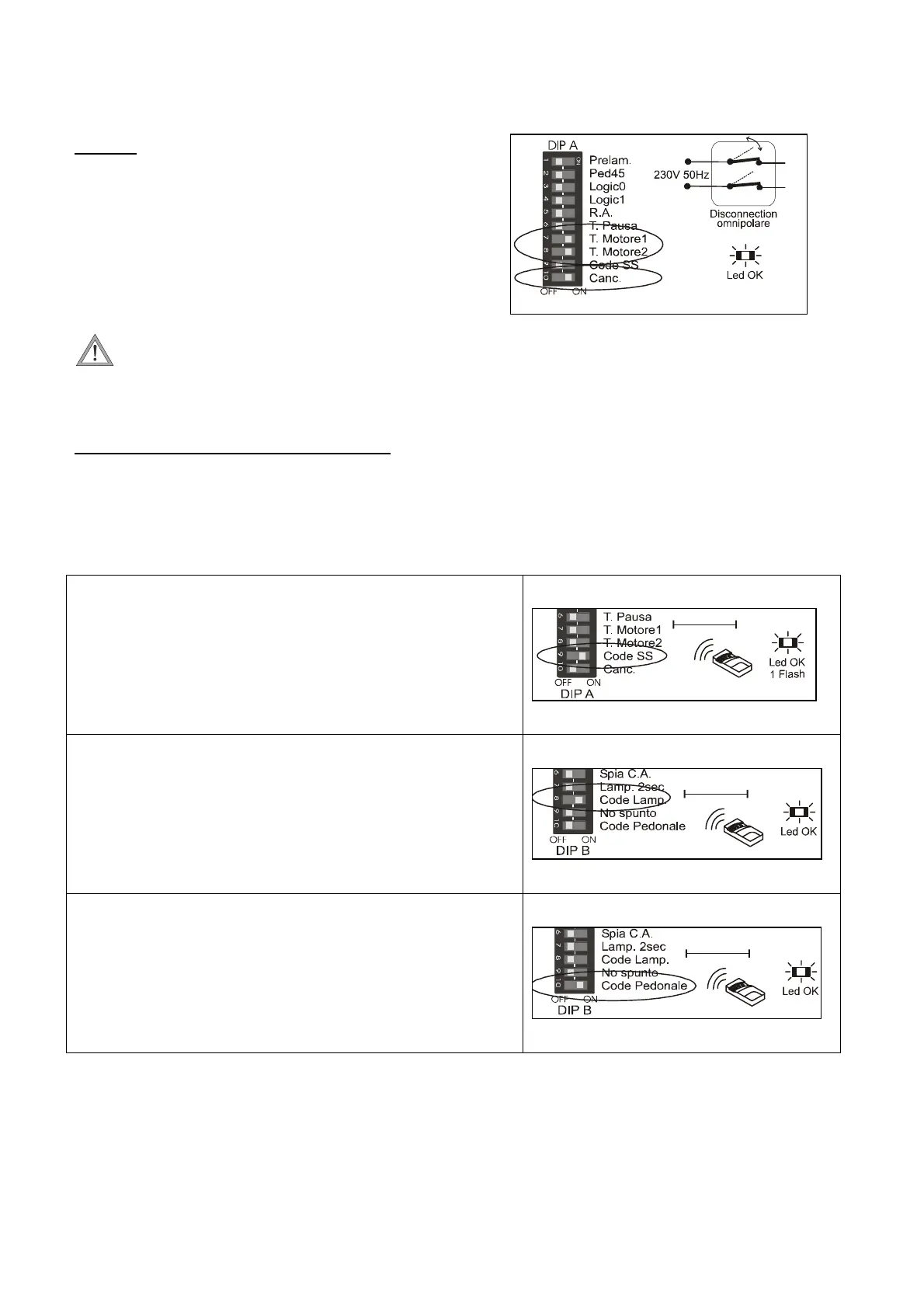

<A> CODE RADIO PROGRAMMING.
--- as soon the first code is memorized the ‘’basic code’’ will be erased
--- max code in memory : 160 standard code or 53 rolling code
--- if the first code memorized is a rolling code then the board accept only rolling code, to accept again
the standard code, RESET must be done
Code Start/Stop
A1. set the DIP A9.in ON position
A2. send a code with transmitter ( about 50 cm far ) the
OK led give you a confirm with 1 flashing, if the led
make 3 flashing that means that the code is already
in memory or the memory is full
A3. set the DIP A9.in OFF position
60 cm
9
Code courtesy lamp
A4. set the DIP B8.in ON position
A5. send a code with transmitter as step A2
A6. set the DIP B8.in OFF position
60 cm
1 Flash
8
Code walk-way SS2
A7. set the DIP B10.in ON position
A8. send a code with transmitter as step A2
A9. set the DIP B10.in OFF position
60 cm
1 Flash
10
