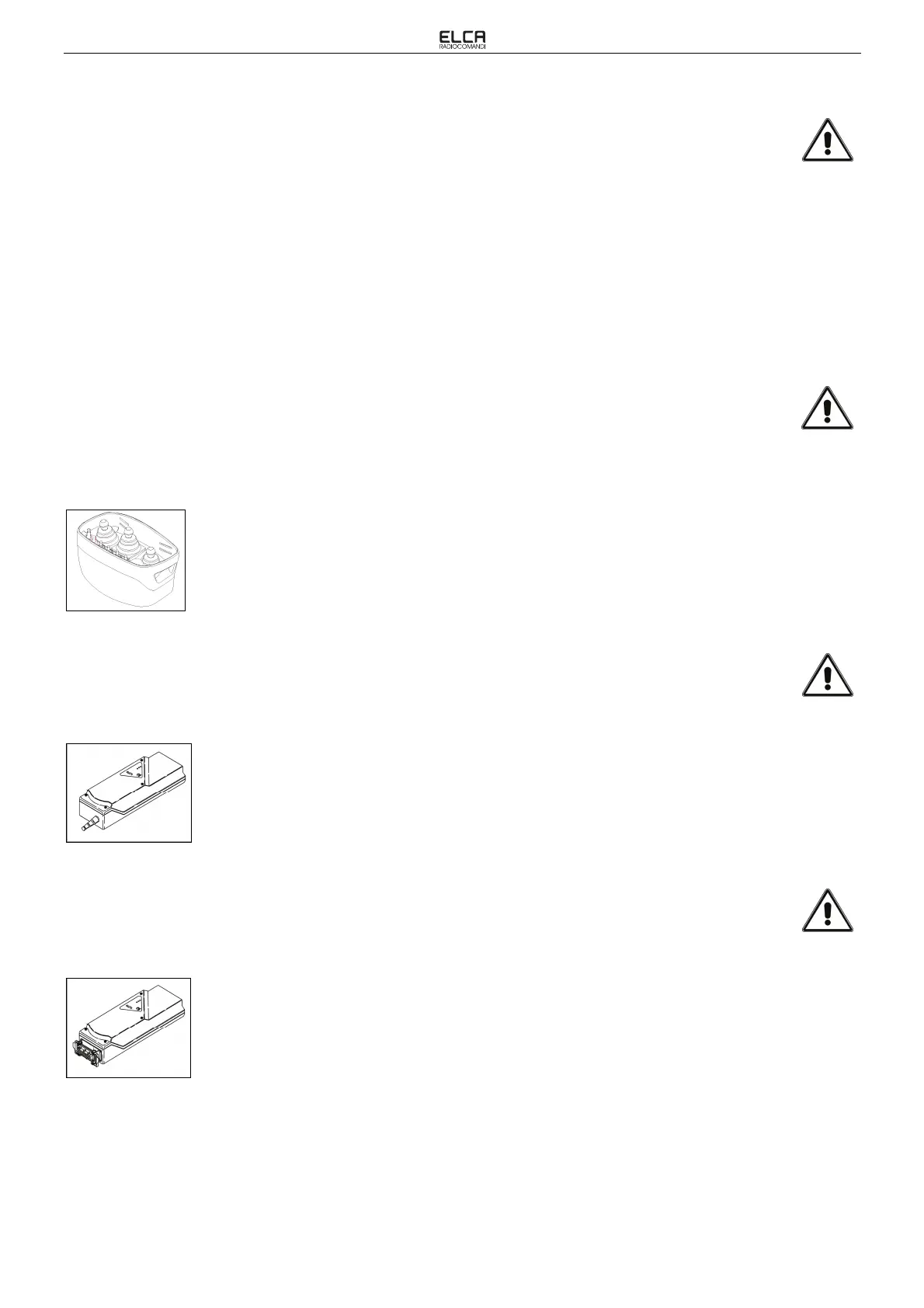

3. TECHNICAL DESCRIPTION
3.1 GENERAL CHARACTERISTICS
Manufacturer................................................................................................................................................................... ELCA S.r.l.
Radio remote control system type ........................................................................................................................................ GENIO
Operation range.........................................................................................................................................................................UHF
ISM band operating frequency.....................................................................................................................434,050 - 434,790 MHz
Modulation type ...................................................................................................................................................................... GFSK
Hamming distance........................................................................................................................................................................ ≥8
Absence of error finding: probability ...................................................................................................................................... < 10
-11
Programmable connecting codes ...........................................................................................................................................39366
Operating temperature ................................................................................................................................................. -20 - +55 °C
Storage and transportation temperature....................................................................................................................... -20 - +55 °C
Range ..................................................................................................................................................................................... 150 m
Command reply time ........................................................................................................................................................... < 90 ms
Active Stop time................................................................................................................................................................... < 90 ms
Passive Stop time..................................................................................................................................................................... < 1 s
3.2 CHARACTERISTICS OF THE AT GENIO-SFERA.E. TRANSMITTING UNIT
Model.......................................................................................................................AT GENIO-SFERA.E
Radio transmitting module/coder.................................................................................................... UT4-E
Antenna .................................................................................................................................incorporated
Power supply .............................................................................................NiCd/NiMH 7,2 V battery pack
Absorption ................................................................................................................................... < 35 mA
Absorbed power............................................................................................................................ < 0,3 W
R.F. emission power...........................................................................................................< 10 mW ERP
Exhausted battery warning voltage................................................................................................... 6,7 V
Switching off voltage......................................................................................................................... 6,0 V
Autonomy with charged battery at 20 °C ........................................................................approx. 20 hours
Battery exhausted warning time ...................................................................................approx. 2 minutes
Protection level .................................................................................................................................. IP65
Dimensions................................................................................................................... 234x156x141 mm
Weight ............................................................................................................................................ 1,1 Kg
3.3 CHARACTERISTICS OF THE AR GENIO-A.E. RECEIVING UNIT
Model................................................................................................................................ AR GENIO-A.E
Radio receiving module/decoder ....................................................................................................UR4-E
Antenna .................................................................................................................................incorporated
Power supply (AC)................................................................................. 24/48/55/110/230 Vac; 50/60 Hz
Protection fuse value ....................................................F1=T1,6AL250V, F2=T1AL250V, F3=T4AL250V
Absorbed power.............................................................................................................................< 35VA
Maximum capacity of the command circuit contacts ......................................................................... 10 A
Maximum capacity of the stop circuit contacts .................................................................................... 4 A
Maximum voltage applicable to the contacts ................................................................................... 110 V
Protection level .................................................................................................................................. IP44
Dimensions..................................................................................................................... 170x500x90 mm
Weight ............................................................................................................................................ 3,6 Kg
3.4 CHARACTERISTICS OF THE AR GENIO-D.E. RECEIVING UNIT
Model................................................................................................................................AR GENIO-D.E
Radio receiving module/decoder ....................................................................................................UR4-E
Antenna .................................................................................................................................incorporated
Power supply (DC)...............................................................................................24 Vdc, optional 12 Vdc
Protection fuse value ....................................................F1= T1AL250V, F2=F20AL250V, F3=T1AL250V
Absorbed power.............................................................................................................................. < 20W
Maximum capacity of the command circuit contacts ......................................................................... 10 A
Maximum capacity of the stop circuit contacts .................................................................................... 4 A
Maximum voltage applicable to the contacts ................................................................................. 30 Vdc
Protection level .................................................................................................................................. IP44
Dimensions..................................................................................................................... 170x500x90 mm
Weight ............................................................................................................................................ 3,0 Kg
