Multi_ING_Man_GenioSFERAE_03 GENIO-SFERA.E Radio remote control system
- Page 10 -

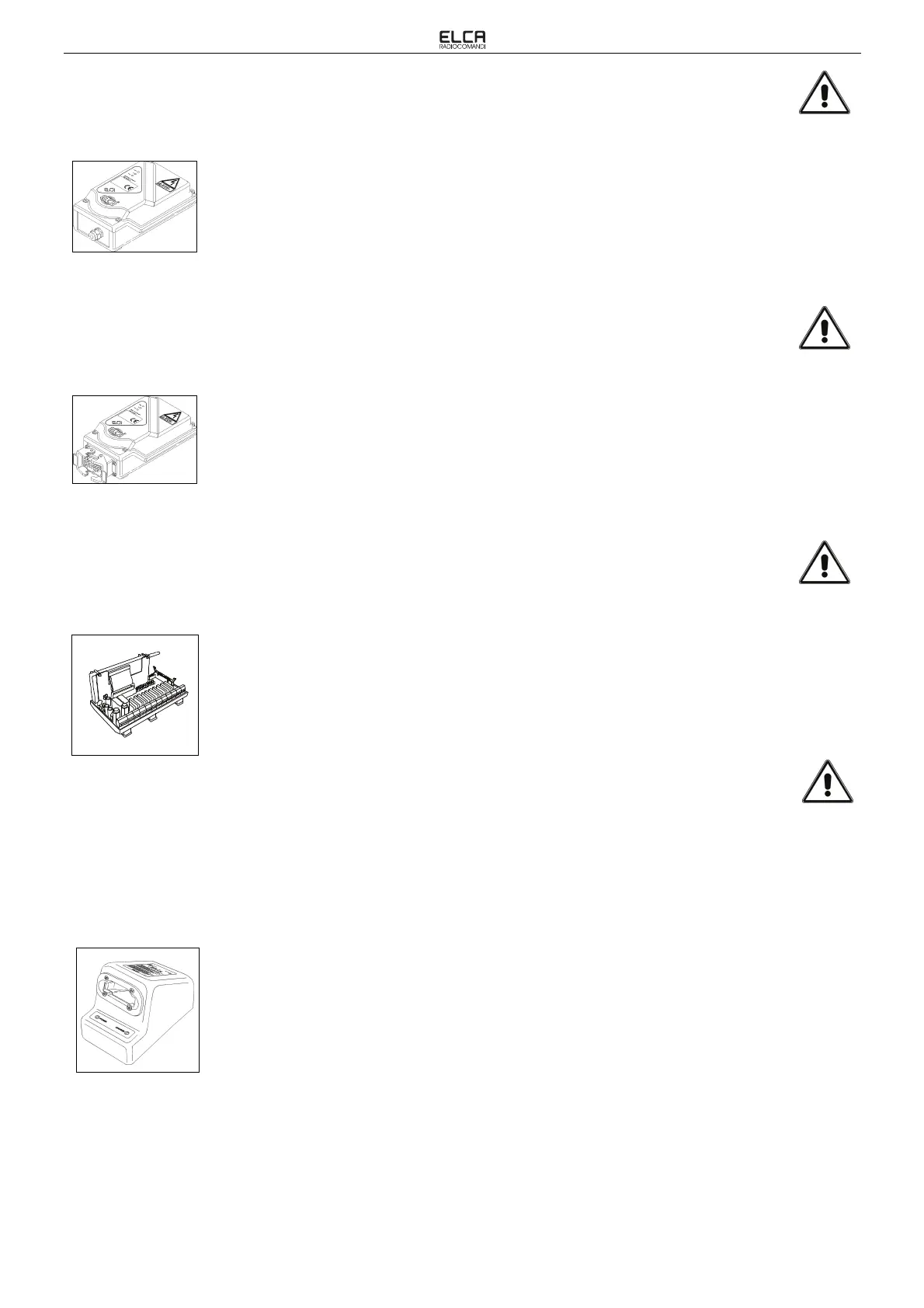

3.5 CHARACTERISTICS OF THE AR GENIO-FLEXI-A.E. RECEIVING UNIT
Model.....................................................................................................................AR GENIO-FLEXI-A.E
Radio receiving module/decoder ....................................................................................................UR4-E
Antenna .................................................................................................................................incorporated
Power supply (AC)............................................................................................... 24/48/55 Vac; 50/60 Hz
Protection fuse value .............................................................................. F1= T1AL250V, F2= T4AL250V
Absorbed power.............................................................................................................................< 18VA
Maximum capacity of the command circuit contacts ......................................................................... 10 A
Maximum capacity of the stop circuit contacts .................................................................................... 4 A
Maximum voltage applicable to the contacts ...............................................................220 Vac; 50-60 Hz
Protection level .................................................................................................................................. IP65
Dimensions..................................................................................................................... 135x255x85 mm
Weight ............................................................................................................................................ 1,2 Kg
3.6 CHARACTERISTICS OF THE AR GENIO-FLEXI-SW.E. RECEIVING UNIT
Model..................................................................................................................AR GENIO-FLEXI-SW.E
Radio receiving module/decoder ....................................................................................................UR4-E
Antenna .................................................................................................................................incorporated
Power supply (DC)...................................................................................................................... 9-30 Vdc
Protection fuse value .........................................................................................F1=ATO2A, F2=ATO10A
Absorbed power.............................................................................................................................. < 10W
Maximum capacity of the command circuit contacts ......................................................................... 10 A
Maximum capacity of the stop/emergency circuit contacts.................................................................. 4 A
Maximum voltage applicable to the contacts ................................................................................. 30 Vdc
Protection level .................................................................................................................................. IP65
Dimensions..................................................................................................................... 135x255x85 mm
Weight ............................................................................................................................................ 1,2 Kg
3.7 CHARACTERISTICS OF THE AR GENIO-BOARD.E. RECEIVING UNIT
Model......................................................................................................................AR GENIO-BOARD.E
Radio receiving module/decoder ....................................................................................................UR4-E
Antenna .................................................................................................................................incorporated
Power supply (DC).....................................................................................................................24 Vdc/ac
Protection fuse value .............................................................................. F1= T1AL250V, F2= T4AL250V
Absorbed power.............................................................................................................................. < 10W
Maximum capacity of the command circuit contacts ......................................................................... 10 A
Maximum capacity of the stop/emergency circuit contacts.................................................................. 4 A
Maximum voltage applicable to the contacts ................................................................................ 220Vac
Dimensions..................................................................................................................... 110x200x90 mm
Weight ............................................................................................................................................ 0,8 Kg
3.8 BATTERY CHARGER CHARACTERISTICS
Nominal output voltage...................................................................................................................... 9 V=
Nominal output current ................................................................................................................. 450 mA
Recharge time ............................................................................................................................≤ 3 hours
Operating temperature............................................................................................................. -20 +55 °C
Protection level .................................................................................................................................. IP40
Dimension.........................................................................................................................144x84x92 mm
Weight ............................................................................................................................................ 0,3 Kg
Model for battery pack NiCd PINC-GE (7.2V-0.7Ah) ..................................................... CONTROL-GE-A
Feeder supply power voltage....................................................................................80-250 Vac 50/60Hz
Nominal power....................................................................................................................................7 W
Model for battery pack NiCd PINC-GE (7.2V-0.7Ah) .....................................................CONTROL-GE-D
Feeder supply power voltage..................................................................................................... 9-30 Vdc
Nominal power....................................................................................................................................7 W
Model for battery pack :
NiMH PINC-GEH (7.2V-1.1Ah) e NiCd PINC-GE (7.2V-0.7Ah)................... CONTROL-GEH-A
Feeder supply power voltage .........................................................................80-250 Vac 50/60Hz
Nominal power ........................................................................................................................7 W
Model for battery pack :
NiMH PINC-GEH (7.2V-1.1Ah) e NiCd PINC-GE (7.2V-0.7Ah)...................CONTROL-GEH-D
Feeder supply power voltage .......................................................................................... 9-30 Vdc
Nominal power ........................................................................................................................7 W
