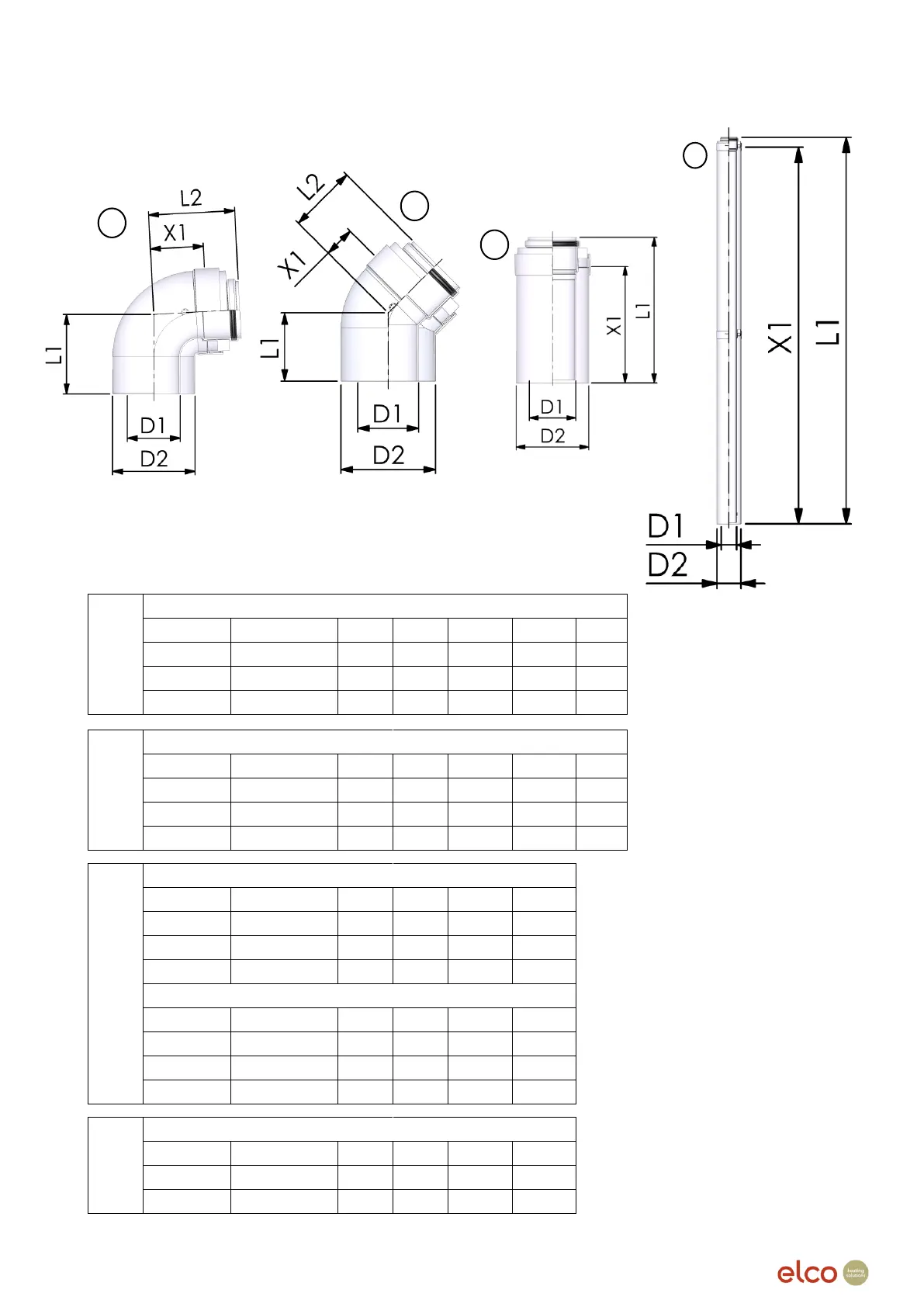

4.1 Concentric flue parts dimensions continued…
1
Concentric 90° Bend
Part
Part Code
D1
D2
L1
L2
X1
80/125
3791643
80
125
130
120
80
100/150
3791306
100
150
130
145
95
110/150
3791623
110
150
145
130
95
2
Concentric 45° Bend
Part
Part Code
D1
D2
L1
L2
X1
80/125
3791644
80
125
90
90
40
100/150
3791307
100
150
110
120
70
110/150
3791624
110
150
120
110
70
3
1000mm Concentric Straight Length
Part
Part Code
D1
D2
L1
X1
80/125
3791641
80
125
1000
950
100/150
3791304
100
150
1000
944
110/150
3791621
110
150
1000
950
500mm Concentric Straight Length
Part
Part Code
D1
D2
L1
X1
80/125
3791642
80
125
500
450
100/150
3791305
100
150
500
450
110/150
3791622
110
150
500
450
4
1950/2000mm Concentric Straight Length
Part
Part Code
D1
D2
L1
X1
80/125
3791646
80
125
1950
1890
100/150
3791297
100
150
1950
1945
4
2
1
3
