elco THISION L EVO Series - Flexible Flue Dimensions

Page 25 of 33

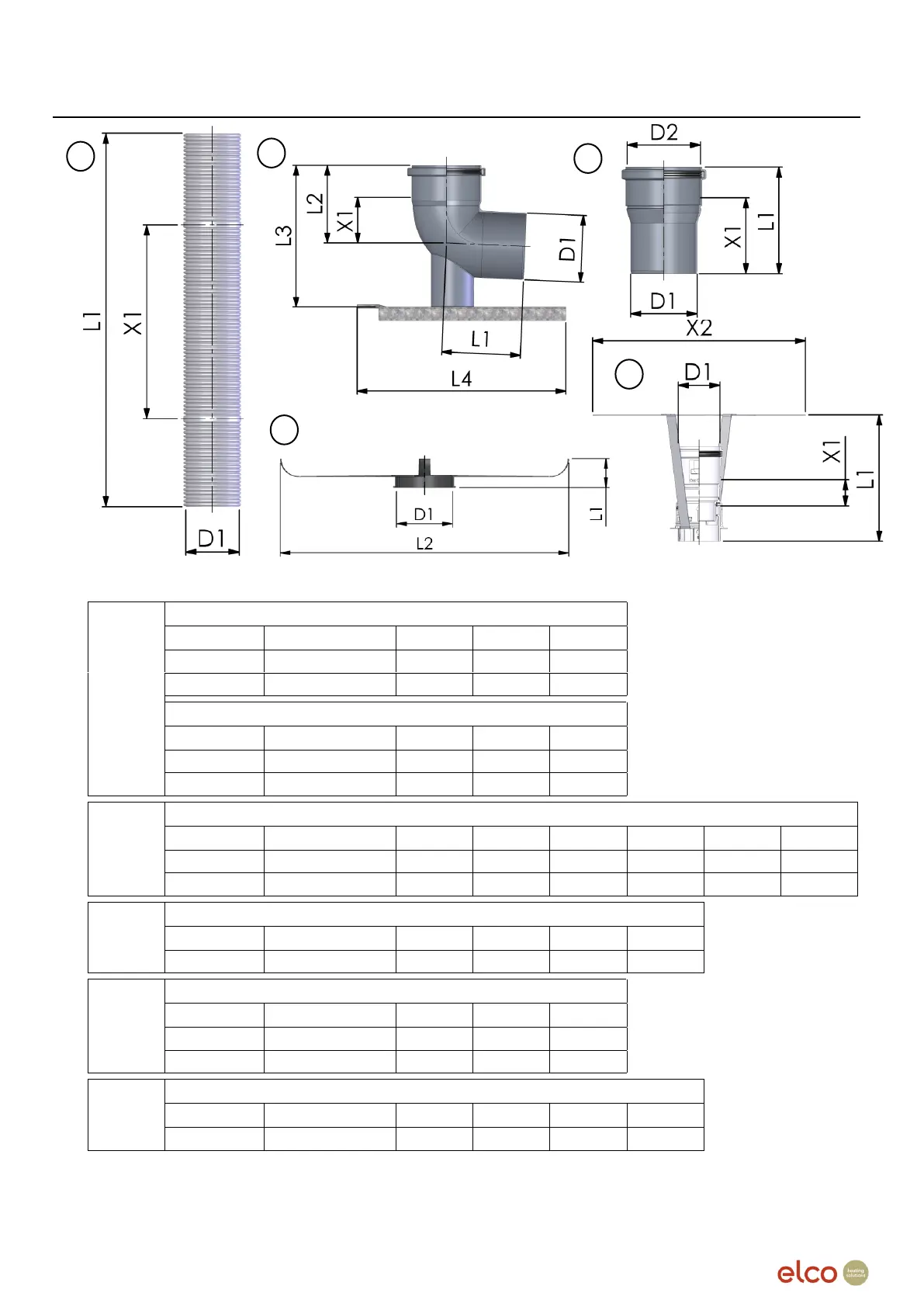

4.4 Flexible flue dimensions
1
80mm Flexible Flue Liner
Part
Part Code
D1
L1
X1
12.5m
AT-3791586
80
12.5m
1490
25m
AT-3791587
80
25m
1490
110mm Flexible Flue Liner
Part
Part Code
D1
D2
X1
15m
AT-3791598
110
15m
1490
25m
AT-3791599
110
25m
1490
2
Chimney Support Bend
Part
Part Code
D1
L1
L2
L3
L4
X1
80mm
AT-3791591
80
120
130
212
390
80
110mm
AT-3791605
110
120
110
230
390
65
3
100mm to 110mm Increaser
Part
Part Code
D1
D2
L1
X1
100-110
AT-3791652
100
110
160
105
4
Flexible Flue Brackets (5 Pack)
Part
Part Code
D1
D2
L1
80mm
AT-3791589
80
40
400
110mm
AT-3791602
110
40
400
5
100mm to 110mm Increaser
Part
Part Code
D1
L1
X1
X2
110mm
AT-3791601
110
190
50
50
1
2
3
4
5
