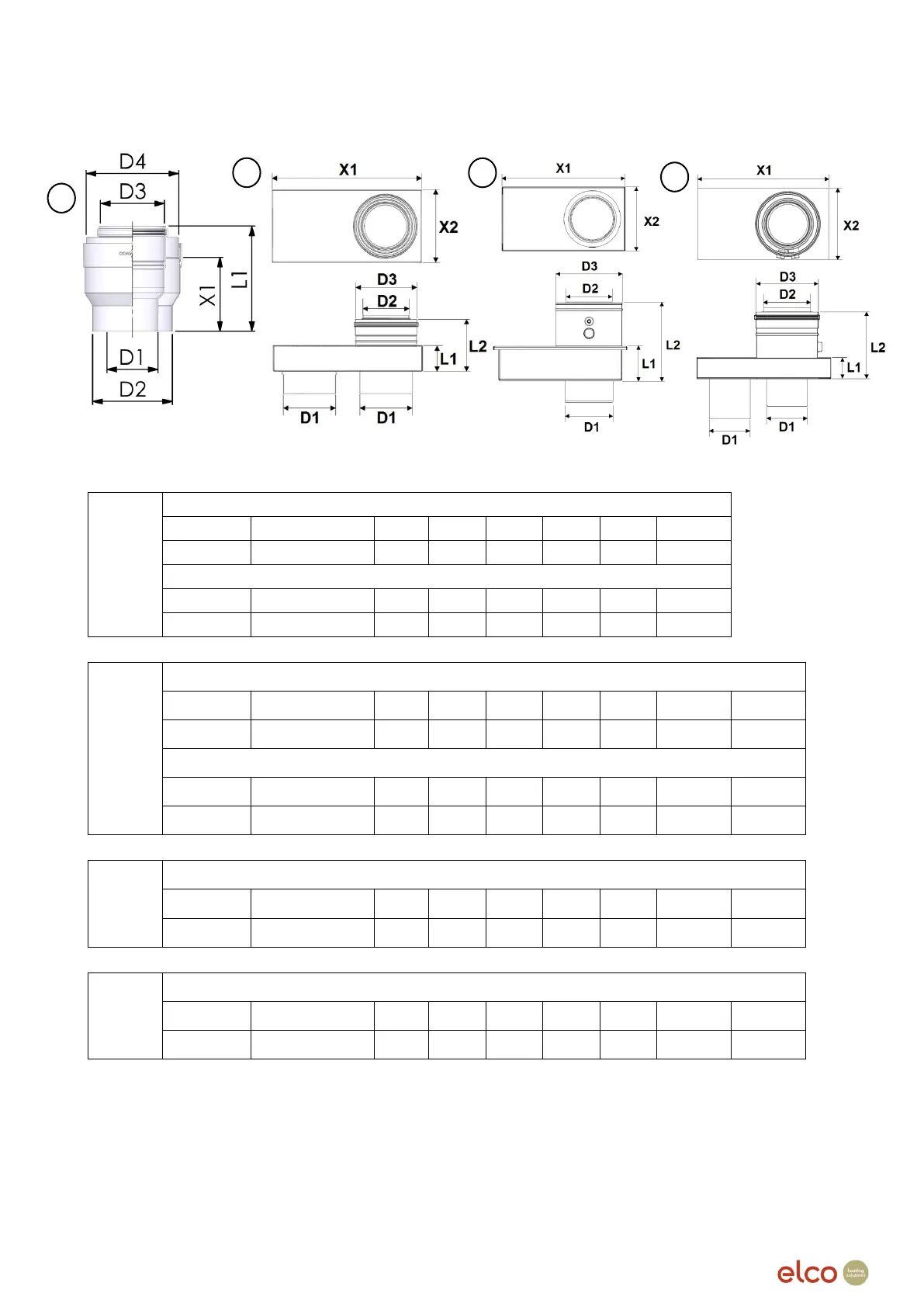

4.1 Concentric flue parts dimensions continued…
1
80/125 to 100/150 Concentric Increaser
Part
Part Code
D1
D2
D3
D4
L1
X1
80/125
3791664
80
125
100
150
165
110
80/125 to 110/150 Concentric Increaser
Part
Part Code
D1
D2
D3
D4
L1
X1
80/125
3791659
80
125
110
150
165
115
2
100/100 to 80/125 Concentric Adaptor
Part
Part Code
D1
D2
D3
L1
L2
X1
X2
100/100
3791648
100
80
125
65
145
305
180
130/130 to 110/150 Concentric Adaptor
Part
Part Code
D1
D2
D3
L1
L2
X1
X2
130/130
3791647
130
110
150
65
145
305
180
3
100/100 to 100/150 Adaptor
Part
Part Code
D1
D2
D3
L1
L2
X1
X2
100/100
3590656
110
100
150
80
179
284
148
4
100/100 to 110/150 Adaptor
Part
Part Code
D1
D2
D3
L1
L2
X1
X2
100/100
3791653
100
110
150
52
163
320
175
