Operation
TCG 8xx control unit
In parallel with its control and safety
functions, the TCG8xx control unit
allows the following to be set:
(see illustration)
- the position of the air flap during
ignition
- the position of the air flap at minimum
pressure
- the position of the air flap at maximum
pressure
The parameters for the control unit are
set using the display and 5 keys.
Operating values are shown in real time
on the display.

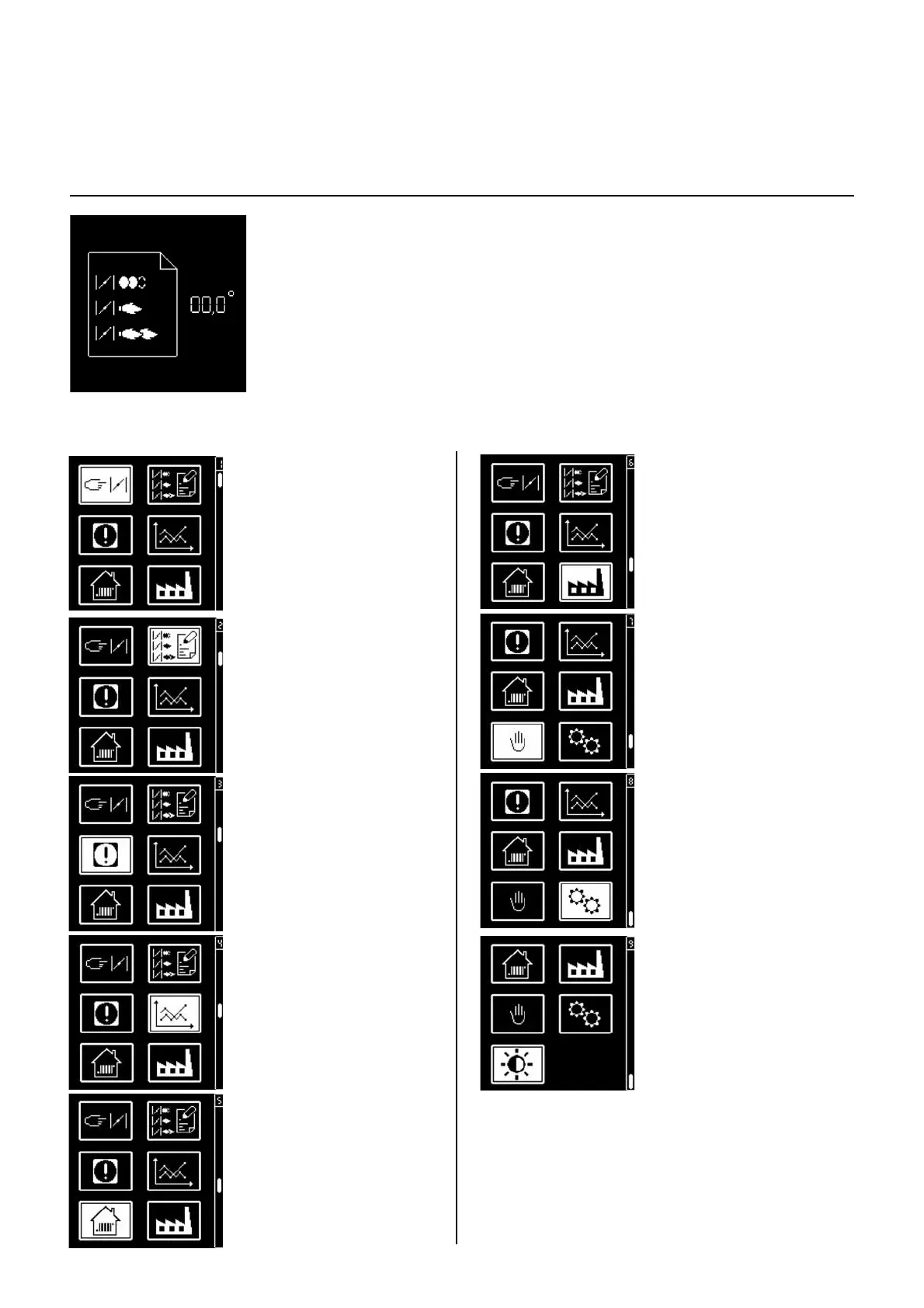

Pressing the keys gives access to 9
menus:
• menu for setting the
servomotor
• menu for storing the
servomotor setting
points in the display
• fault diagnosis menu
• operating statistics
menu
• menu for setting/
adjusting the standard
configurations*
• menu for setting
industrial applications*
• menu for manual control*
• Parameter mode menu*
• Menu for adjusting
screen contrast and
brightness settings
* In these menus, it is
possible to adjust the
control unit's standard
configurations. These
are pre-set in the
factory. No
modifications may be
carried out on-site
without prior
consultation with ELCO.
The access code and
the setting setpoints for
these menus are
available on request.
