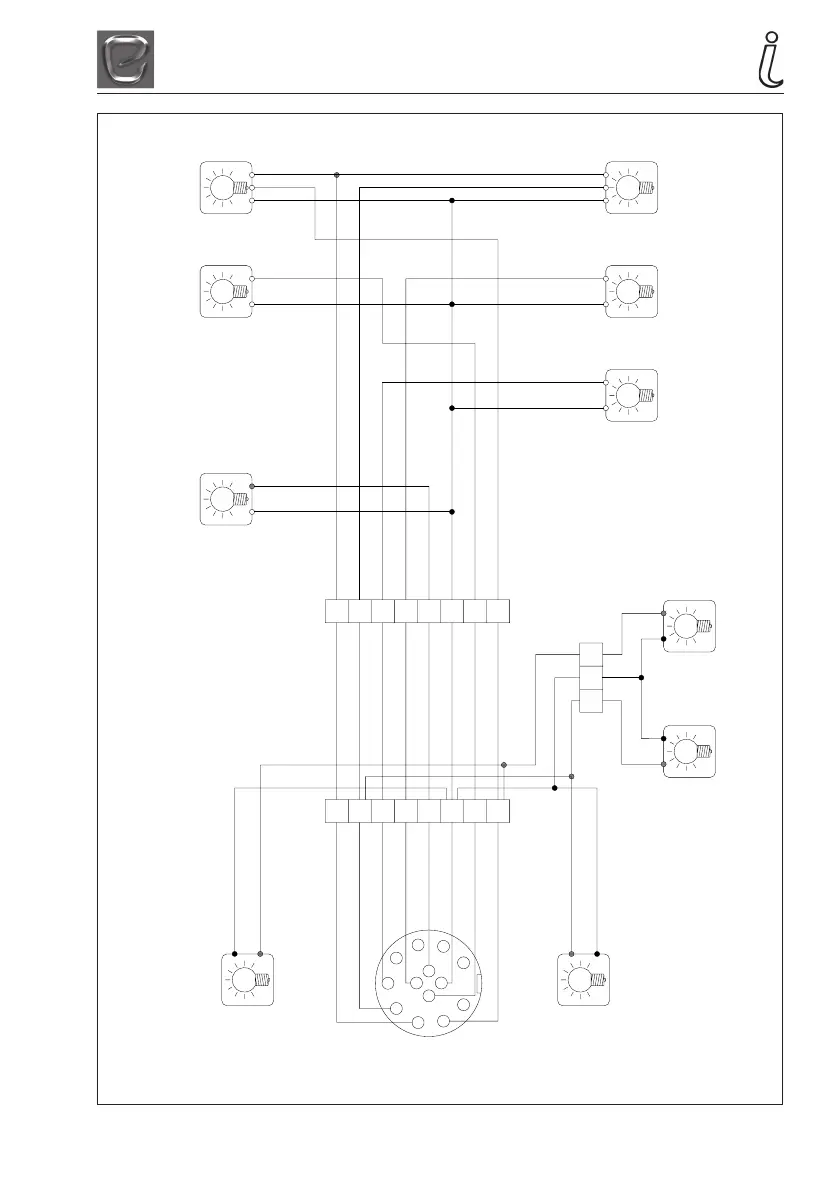

ELECTRICAL DRAWINGS
ROAD LIGHTS
1
1
1
1
4
Stop & Tail
21W/5W
R/H Indicator
21W
Fog
21W
L/H High Level
Marker ight
5W
R/H High Level
Marker ight
5W
R/H Front
Marker ight
5W
L/H Front
Marker ight
5W
Yellow
Blue
White
Green
Brown
Red
Black
Stop & Tail
21W/5W
Reverse
21W
L/H Indicator
21W
Yellow/Black
Yellow
Blue
White
Green
Brown
Red
Black
Yellow/Black
Yellow
Green
Brown
Red
Red
Black
Blue
Yellow/Black
White
White
White
White
White
White
White
White
White
Black
Brown
Black
Black
Brown
White
Brown
2011 Xplore Road Lights Diagram
