8-15
HOW TO USE YOUR CARAVAN’S EQUIPMENT
DOMETIC CT3050 TOILET
Introduction
These instructions provide you with the
necessary guidance for the proper use of the
toilet. Observe the safety instructions in
particular. Observing the instructions and
handling recommendations is important for
dealing with the toilet safely and for
protecting you from injury and the toilet from
damage.
The CT3050 cassette toilet consists of a fixed
toilet and a removable waste holding, mobile
cassette tank. The cassette can be accessed
from the outside through a door.

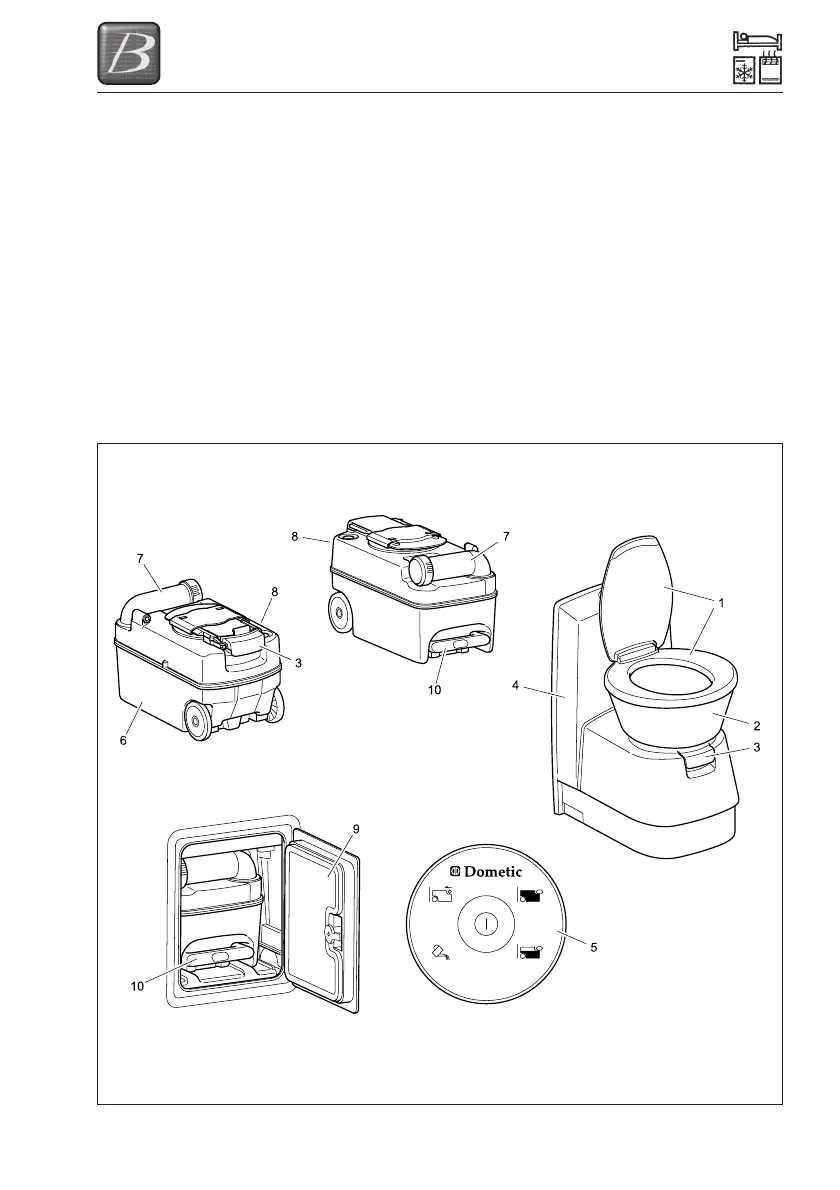

Description of parts
1. Removable cover and seat.
2. Toilet bowl.
3. Emptying blade for the toilet bowl.
4. Fresh water tank (capacity depends on
the model).
5. Level indicator / flush (control panel).
6. Cassette tank (capacity 19L).
7. Pour out spout.
8. Vent button for emptying.
9. Service door.
10. Pull-out handle (cassette tank movable
on wheels).
